GDS-3323A
CHF 346.00
Product information "GDS-3323A"

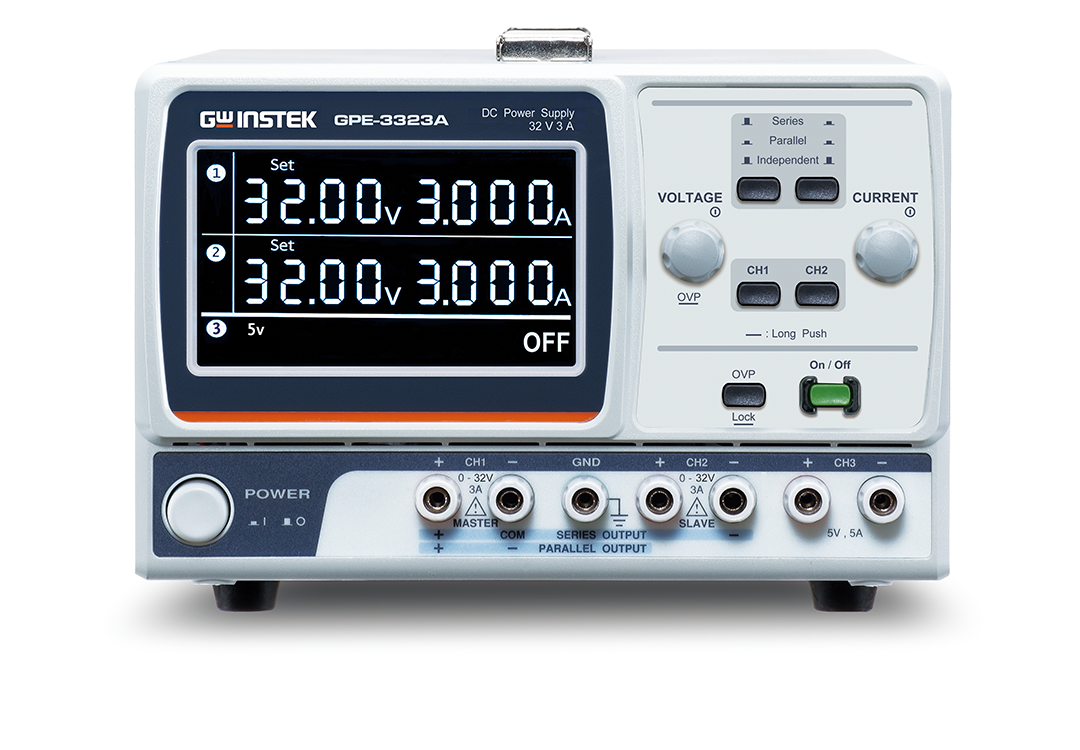

GW Instek GDS-3323A
The GW Instek GPE-3323A is a reliable triple-output linear DC power supply designed for laboratory, educational, and service applications. It features two fully adjustable outputs rated at 0–30 V and 0–3 A, plus an additional fixed 5 V output channel for logic circuits and digital applications.
Thanks to its linear regulation design, the GPE-3323A delivers low ripple and noise performance, making it ideal for analog circuit testing and precision electronics development. The adjustable channels support independent, series, and parallel tracking modes, allowing flexible configuration for higher voltage or current requirements.
Integrated overload and short-circuit protection ensure safe operation, while analog meters provide clear voltage and current monitoring. The robust bench-top design makes it a dependable solution for daily laboratory use.
| Current Range: | 0 – 6 A (per channel) |
|---|---|
| Output Current: | Channel 1: 0 – 3 A Channel 2: 0 – 3 A Channel 3 (Fixed): 3 A |
| Output Power: | Max. 90 W per adjustable channel Max. approx. 195 W total output (combined) |
| Output Voltage: | Channel 1: 0 – 30 V Channel 2: 0 – 30 V Channel 3 (Fixed): 5 V |
