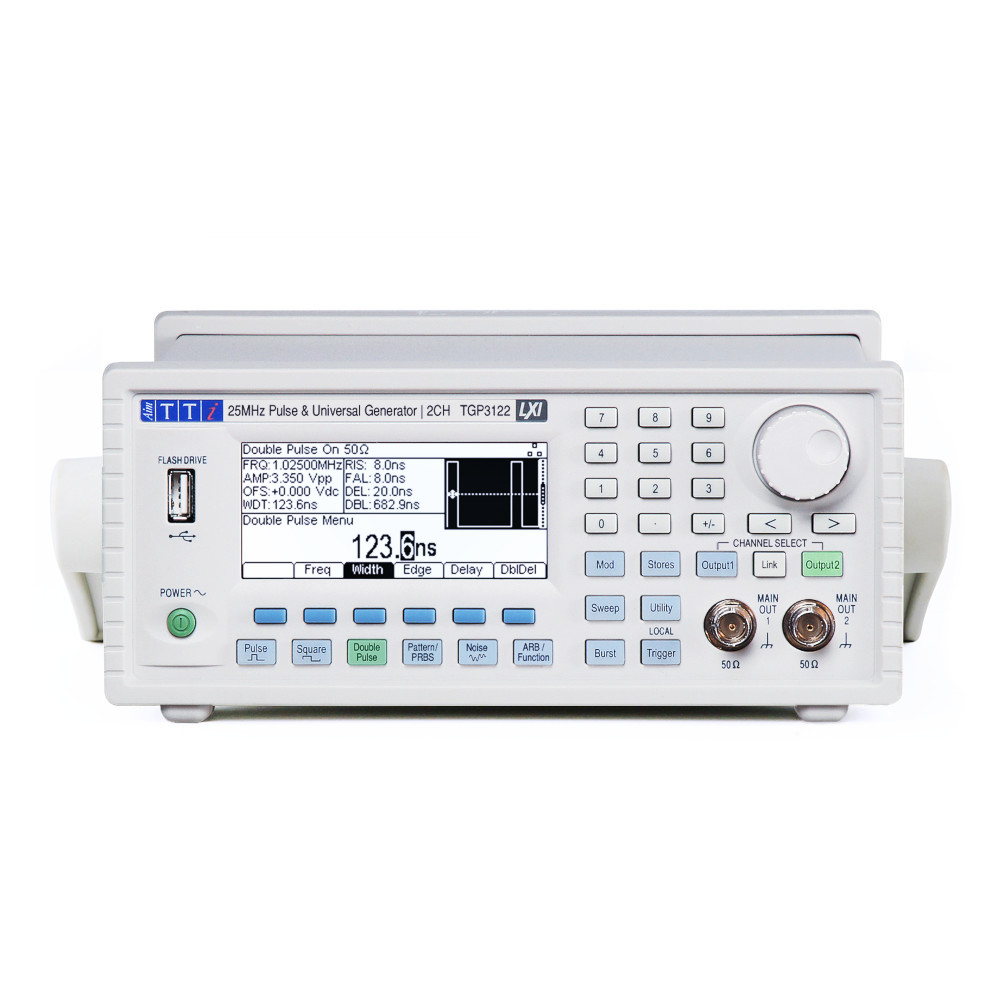

Aim-TTi TGP3122 – Dual-Channel Pulse and Universal Waveform Generator

The Aim-TTi TGP3122 is a high-performance dual-channel pulse and universal waveform generator designed for laboratory, research and electronics development environments. As part of the TGP3100 series, it combines the capabilities of a pulse generator, arbitrary waveform generator, function generator and noise generator in a single versatile instrument.

The generator supports pulse waveforms from 1 mHz up to 25 MHz with extremely high timing resolution and independently adjustable rise and fall times. These features make it ideal for testing digital circuits, timing analysis and signal conditioning applications.

In addition to pulse generation, the instrument offers 16 waveform types, including sine, square, triangle, ramp and arbitrary waveforms. Arbitrary waveforms can be generated with 16-bit vertical resolution and up to 800 MS/s sampling rate, enabling accurate signal reproduction for demanding measurement tasks.

The TGP3122 also supports advanced modulation functions such as AM, FM, PM, FSK, BPSK, PWM and PDM, allowing users to simulate complex signal conditions. Integrated USB and LAN (LXI) interfaces with optional GPIB enable easy integration into automated test systems and computer-controlled measurement setups.

With its dual-channel architecture, precise timing control and broad waveform capabilities, the TGP3122 is an ideal instrument for development laboratories, engineering environments and production test systems.

Key Features

• Dual-channel pulse and universal waveform generator

• Frequency range 1 mHz – 25 MHz

• Pulse, double pulse, pulse pattern and PRBS waveform generation

• 16 waveform types including sine, square, triangle and ramp

• Arbitrary waveform generation with 16-bit resolution

• Sampling rate up to 800 MS/s

• Independently adjustable rise and fall times (from approx. 5–8 ns)

• Integrated noise generator up to 25 MHz

• Extensive modulation options: AM, FM, PM, FSK, BPSK, PWM, PDM

• USB and LAN (LXI) interfaces, optional GPIB

• High output drive capability up to 20 V pk-pk into 50 Ω

Typical Applications

• Digital circuit testing and timing analysis

• Signal simulation and waveform generation

• Electronics development and prototyping

• RF and communication system testing

• Production testing and quality control
