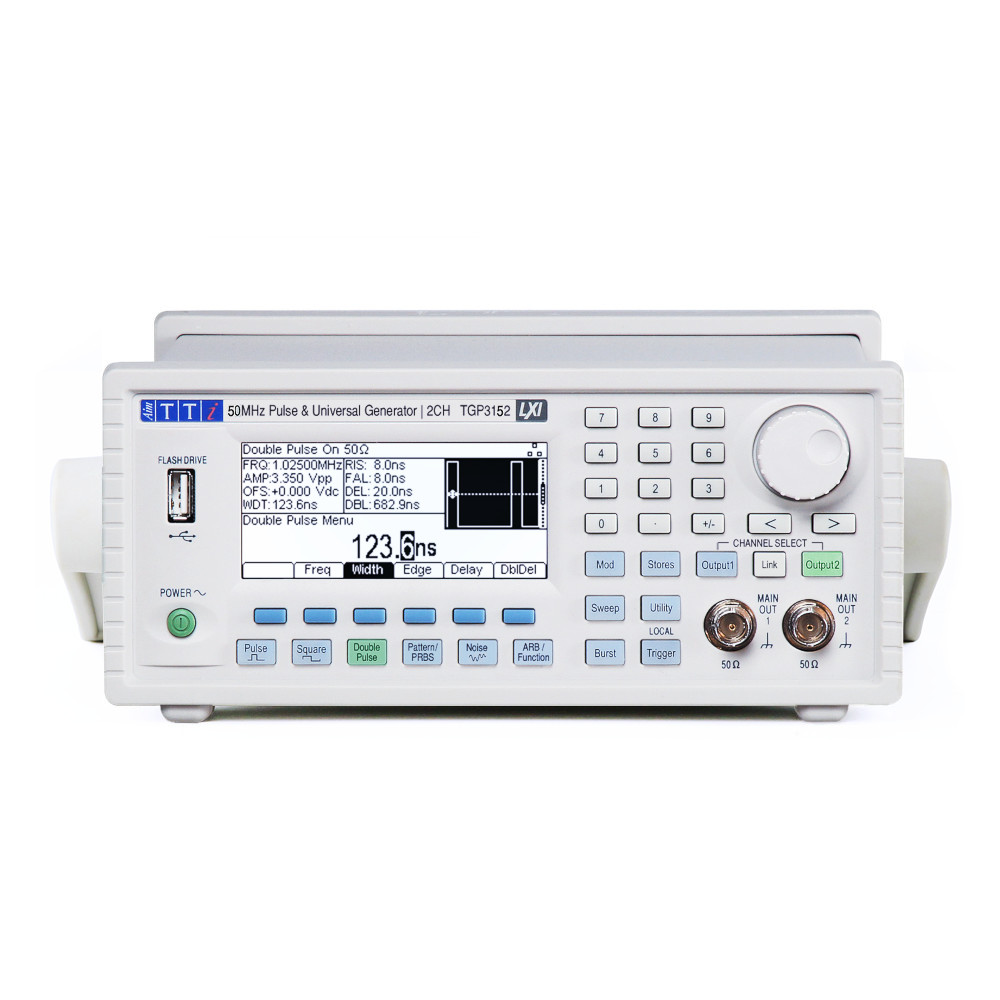

Aim-TTi TGP3152 – Dual-Channel Pulse and Universal Waveform Generator

The Aim-TTi TGP3152 is a high-performance dual-channel pulse and universal waveform generator designed for demanding laboratory, research and electronics development environments. As part of the TGP3100 series, it combines the functionality of a pulse generator, arbitrary waveform generator, function generator and noise generator in a single versatile instrument.

The generator supports pulse waveforms with frequencies from 1 mHz up to 50 MHz, providing extremely precise timing control with pulse width, delay and period resolutions down to 100 ps. This makes it ideal for digital circuit testing, timing analysis and signal conditioning applications.

In addition to pulse generation, the TGP3152 offers 16 waveform types including sine, square, triangle and ramp signals, as well as arbitrary waveform generation with 16-bit vertical resolution and up to 800 MS/s sampling rate for accurate signal reproduction.

Advanced modulation capabilities such as AM, FM, PM, FSK, BPSK, PWM and PDM enable engineers to simulate complex signal conditions and perform detailed signal analysis. The instrument also supports triggered or gated operation using internal or external trigger sources.

With USB and LAN (LXI) interfaces and optional GPIB, the TGP3152 can easily be integrated into automated test systems and computer-controlled measurement environments.

Thanks to its dual-channel architecture, high timing precision and wide waveform capabilities, the TGP3152 is ideal for development laboratories, research environments and production test applications.

Key Features

• Dual-channel pulse and universal waveform generator

• Frequency range 1 mHz – 50 MHz

• Pulse, double pulse, pulse pattern and PRBS waveform generation

• Pulse width, delay and period resolution down to 100 ps

• Independently adjustable rise and fall times (from approx. 5 ns)

• Arbitrary waveform generation with 16-bit resolution and 800 MS/s sampling rate

• Integrated noise generator up to 25 MHz

• Extensive modulation options: AM, FM, PM, FSK, BPSK, PWM, PDM

• USB and LAN (LXI) interfaces, optional GPIB

• Output drive capability up to 20 V pk-pk into 50 Ω

Typical Applications

• Digital circuit testing and timing analysis

• Signal simulation and waveform generation

• RF and communication system development

• Electronics development and prototyping

• Production testing and quality control
