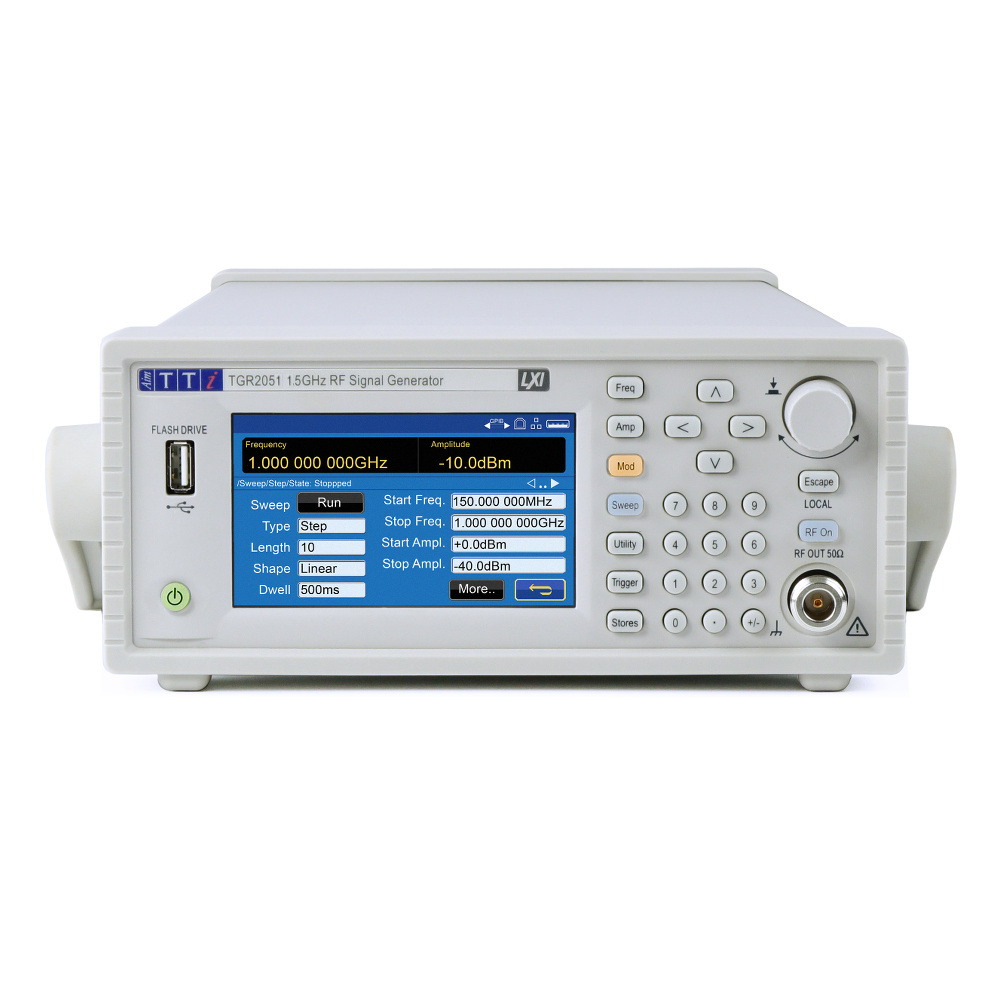

Aim-TTi TGR2051-U01 – RF Signal Generator with Digital Modulation

The Aim-TTi TGR2051-U01 is a precision RF signal generator designed for demanding RF development, testing and service environments. It offers a wide frequency range from 150 kHz to 1.5 GHz with fine frequency resolution and excellent signal stability, making it suitable for testing RF circuits, wireless devices and communication systems.

The generator provides a wide amplitude range and very good spectral purity with low phase noise, ensuring reliable and accurate RF measurements. Advanced sweep and modulation capabilities allow engineers to analyse system behaviour across different frequencies and signal conditions.

With the U01 option, the instrument supports a wide range of digital modulation schemes including ASK, FSK, PSK and other formats, expanding its capabilities for modern communication testing.

A 4.3-inch colour display with intuitive user interface allows easy configuration and monitoring of signal parameters, while USB and LAN connectivity enable integration into automated test systems and computer-controlled environments.

Thanks to its combination of performance, flexibility and reliability, the TGR2051-U01 is ideal for RF laboratories, research facilities and production testing environments.

Key Features

• RF signal generator with 150 kHz – 1.5 GHz frequency range

• Fine 10 Hz frequency resolution

• Wide amplitude range -127 dBm to +13 dBm

• High spectral purity and low phase noise

• Digital modulation option (U01) for ASK, FSK, PSK and other schemes

• Internal and external analogue modulation (AM, FM, PM)

• USB and LAN (LXI) interfaces, optional GPIB

• 4.3-inch colour TFT display with intuitive control interface

• Suitable for automated test systems and RF development

Typical Applications

• RF circuit and module development

• Wireless communication testing

• RF component characterisation

• Laboratory measurement and research

• Production testing and service environments
