ASR-2050
CHF 1,992.60
% CHF 2,214.00 (10% saved)
Product information "ASR-2050 "

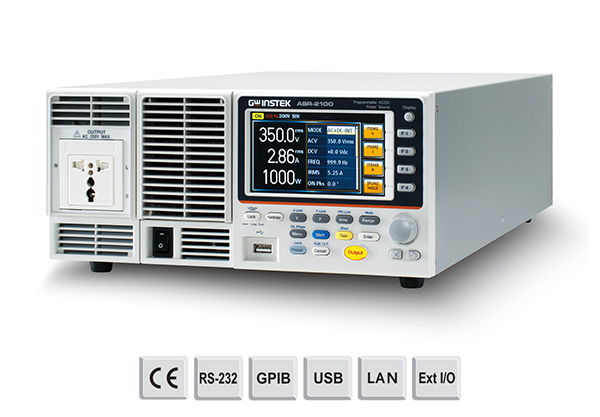

GW Instek ASR-2050
High-Performance Programmable AC/DC Power Source
The GW Instek ASR-2050 is a powerful and versatile programmable AC/DC power source designed for demanding testing and development environments. Combining precision, flexibility, and advanced simulation capabilities, it is the ideal solution for laboratories, industrial applications, and automated test systems.
Powerful & Flexible Performance
With an output power of 500 VA, the ASR-2050 supports both AC and DC output, enabling realistic simulation of various power conditions.
- AC output: up to 350 Vrms
- DC output: up to ±500 V
- Frequency range: 1 – 999.9 Hz
This makes it suitable for simulating everything from stable power conditions to complex disturbances.
Ideal for Testing & Validation
The ASR-2050 is perfectly suited for:
- Testing electronic components and power supplies
- Simulating power line disturbances (dips, surges, interruptions)
- Validating consumer electronics and automotive systems
Its arbitrary waveform and sequence functions allow users to create customized test scenarios with high precision.
Advanced Measurement & Analysis
Built-in measurement capabilities include:
- Voltage, current, and power (Vrms, Irms, P, PF, etc.)
- Harmonic analysis up to the 40th order (THDv, THDi)
This ensures accurate monitoring and detailed analysis of test results.
Smart Control & Connectivity
For seamless system integration, the ASR-2050 offers:
- Interfaces: USB, LAN, RS-232, optional GPIB
- Remote sensing for precise voltage regulation
- External control and synchronization capabilities
Comprehensive Protection
The device includes multiple protection features for safe operation:
- Over-voltage, over-current, over-power, and over-temperature protection
- AC failure detection and fan monitoring
Conclusion
The GW Instek ASR-2050 is a reliable and high-precision AC/DC power source, ideal for advanced testing, validation, and quality assurance. It delivers the performance and flexibility required in modern electronic testing environments.
