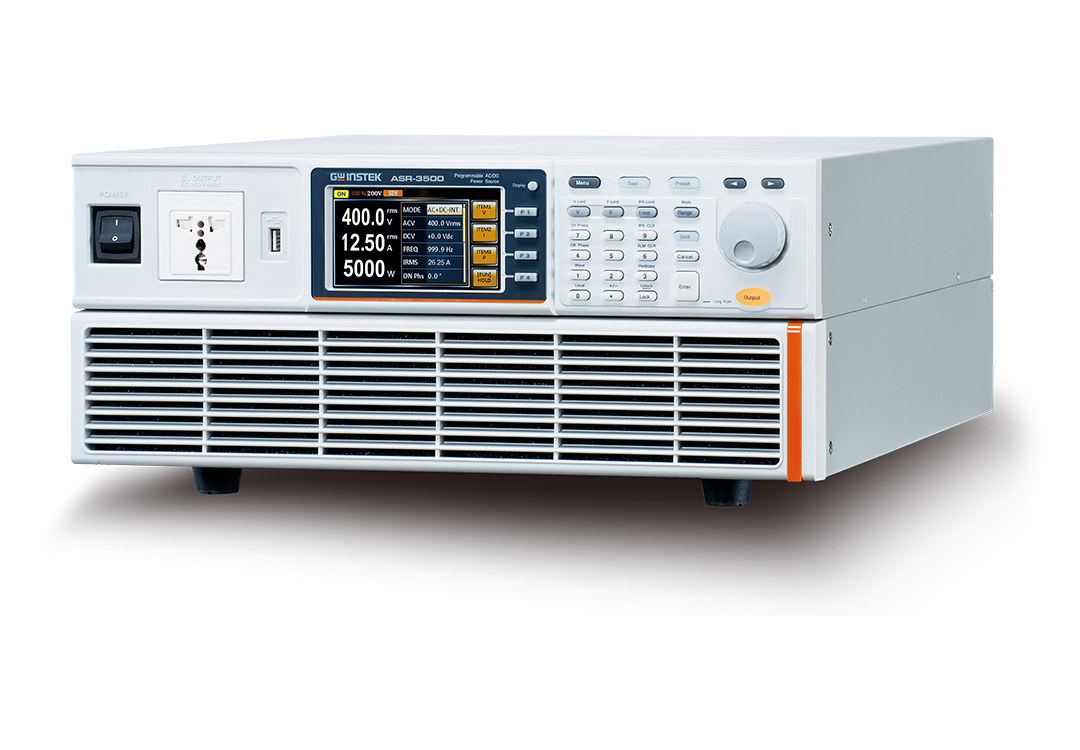

GW INSTEK - ASR-3500

- Programmable AC-DC Power Source, 400Vrms/570Vdc / 50A/25A / 5kVA, Universal socket

The ASR-3000 series is an AC+DC power source, featuring high-speed DC voltage rising and falling time (≦100 μs).

ASR-3000 is ideal for the development of On-board Chargers, Server Powers, LED modules, AC Motors, AC Fans, UPS, and various electronic components, as well as for testing applications of automotive electrical equipment and home appliances.

There are five models of the series:
1. ASR-3200(2 kVA)
2. ASR-3300(3 kVA)
3. ASR-3400(4 kVA)
4. ASR-3400HF(4 kVA, Frequency upto 5 kHz)
5. ASR-3500 (5 kVA)

The series can provide rated power output during AC output and DC output. Ten ASR-3000 output modes are available.

AC power output mode (AC-INT Mode)
DC power output mode (DC-INT Mode)
AC/DC power output mode (AC+DC-INT Mode)
External AC signal source mode (AC-EXT Mode)
External AC/DC signal source mode (AC+DC-EXT Mode)
External AC signal superimposition mode (AC-ADD Mode)
External AC/DC signal superimposition mode (AC+DC-ADD Mode)
External AC signal synchronization mode (AC-SYNC Mode)
External AC/DC signal synchronization mode (AC+DC-SYNC Mode)
External DC voltage control of AC output mode (AC-VCA)

Features
Output Rating: AC 0 Vrms to 400 Vrms, DC 0 V to ± 570 V
Output Frequency up to 999.9 Hz (ASR-3400HF up to 5000 Hz)
DC Output (100 % of Rated Power)
Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
Voltage and Current Harmonic Analysis(THDv, THDi)
Remote Sensing Capability
OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm
Support Arbitrary Waveform Function
Output Capacity: 2 kVA / 3 kVA /4 kVA / 5 kVA
Customized Phase Angle for Output On/Off
Sequence and Simulation Function(up to 10 sets)
Interface(std): USB, LAN, RS-232, GPIB
Built-in External Control I/O and External Signal Input
Built-in Output Relay Control
Memory Function (up to 10 sets)
Built-in Web Server
