ASR-6500
CHF 12,540.00
Product information "ASR-6500"

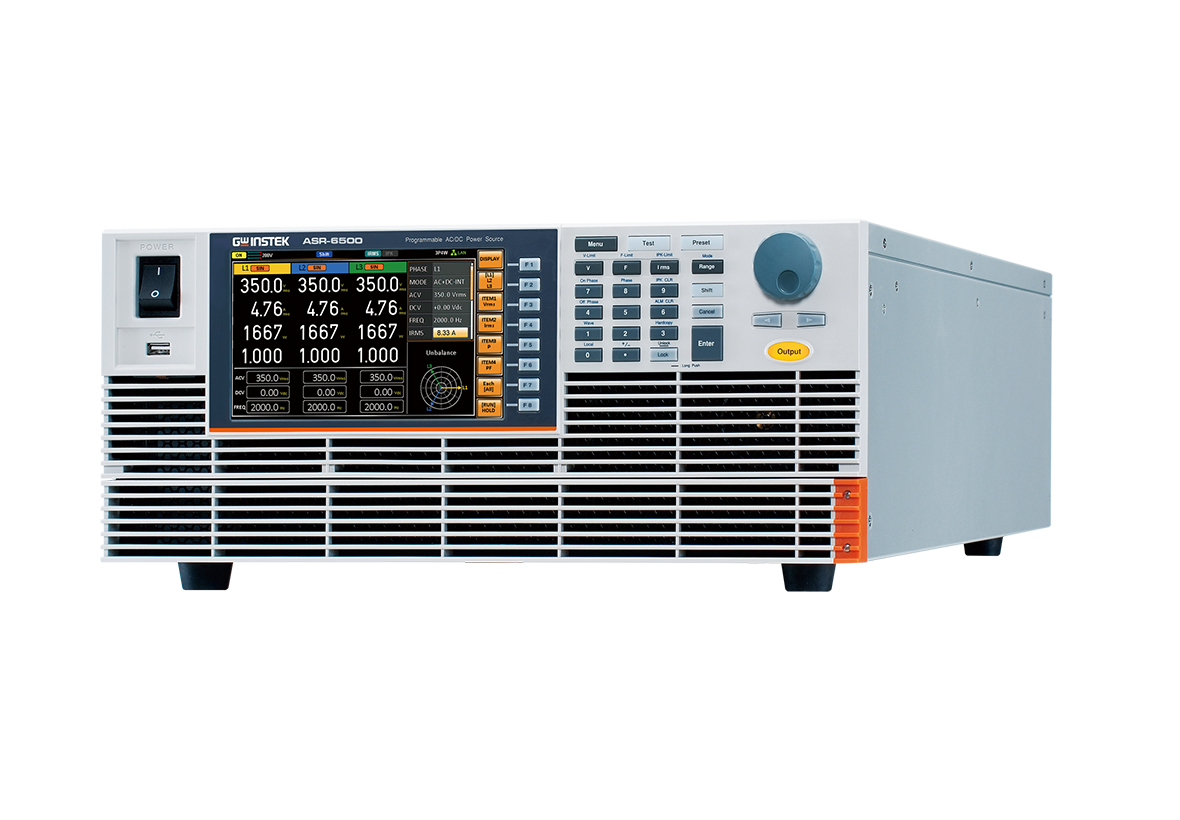

GW Instek - ASR-6500
The ASR-6500 from GW Instek is a high-performance programmable AC/DC power source designed for advanced power simulation, validation, and compliance testing. Delivering up to 5 kVA output power in a compact 4U rack-mount form factor, the system supports flexible single- and three-phase output modes including 1P2W, 1P3W, and 3P4W configurations, making it suitable for laboratory and production environments.
The unit provides programmable output voltages up to 350 Vrms per phase (700 Vrms line-to-line) and output currents up to 50 A, enabling reliable testing of power electronics, motors, inverters, and UPS systems. With an adjustable frequency range from 15 Hz to 2000 Hz, users can simulate regional grid conditions as well as aviation or industrial standards.
Integrated waveform generation supports sine, square, clipped sine, and arbitrary waveforms, while harmonic simulation and analysis up to the 100th order allow detailed power quality testing. Built-in measurement functions continuously monitor voltage, current, power, crest factor, and harmonic distortion to ensure accurate evaluation. For higher-power applications, multiple units can be operated in parallel, scaling output capability up to 39.6 kVA.
| Frequency Range : | 15–2000 Hz |
|---|---|
| Output Current: | up to 50 A |
| Output Power: | 5 kVA |
| Output Voltage: | 0–350 Vrms (per phase) |
| Parallel Operations : | up to 39.6 kVA system power |
| Phase Modes: | 1P2W / 1P3W / 3P4W |
