GDS-3102A
CHF 4,318.00
Product information "GDS-3102A"
GW Instek - GDS-3102-A

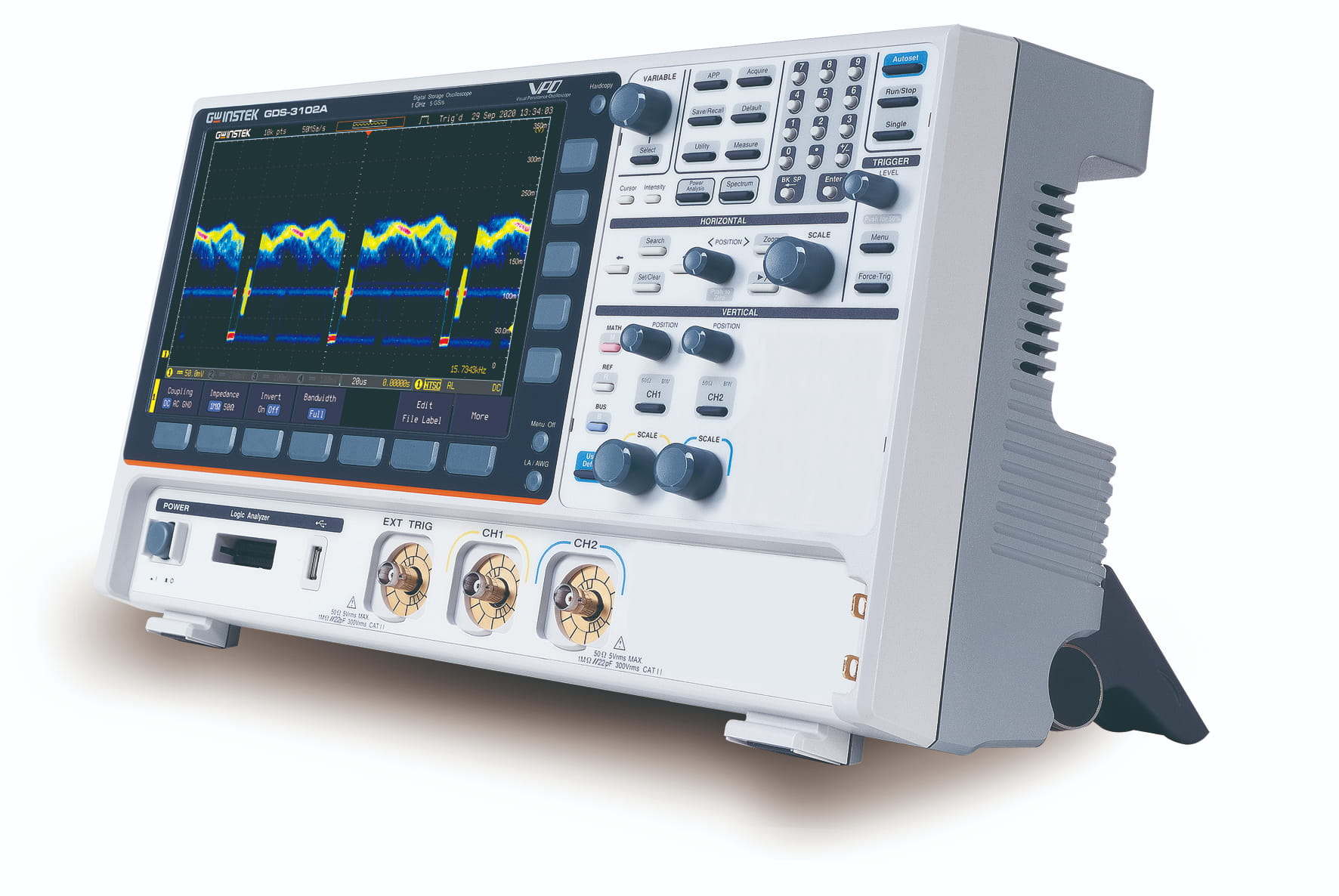

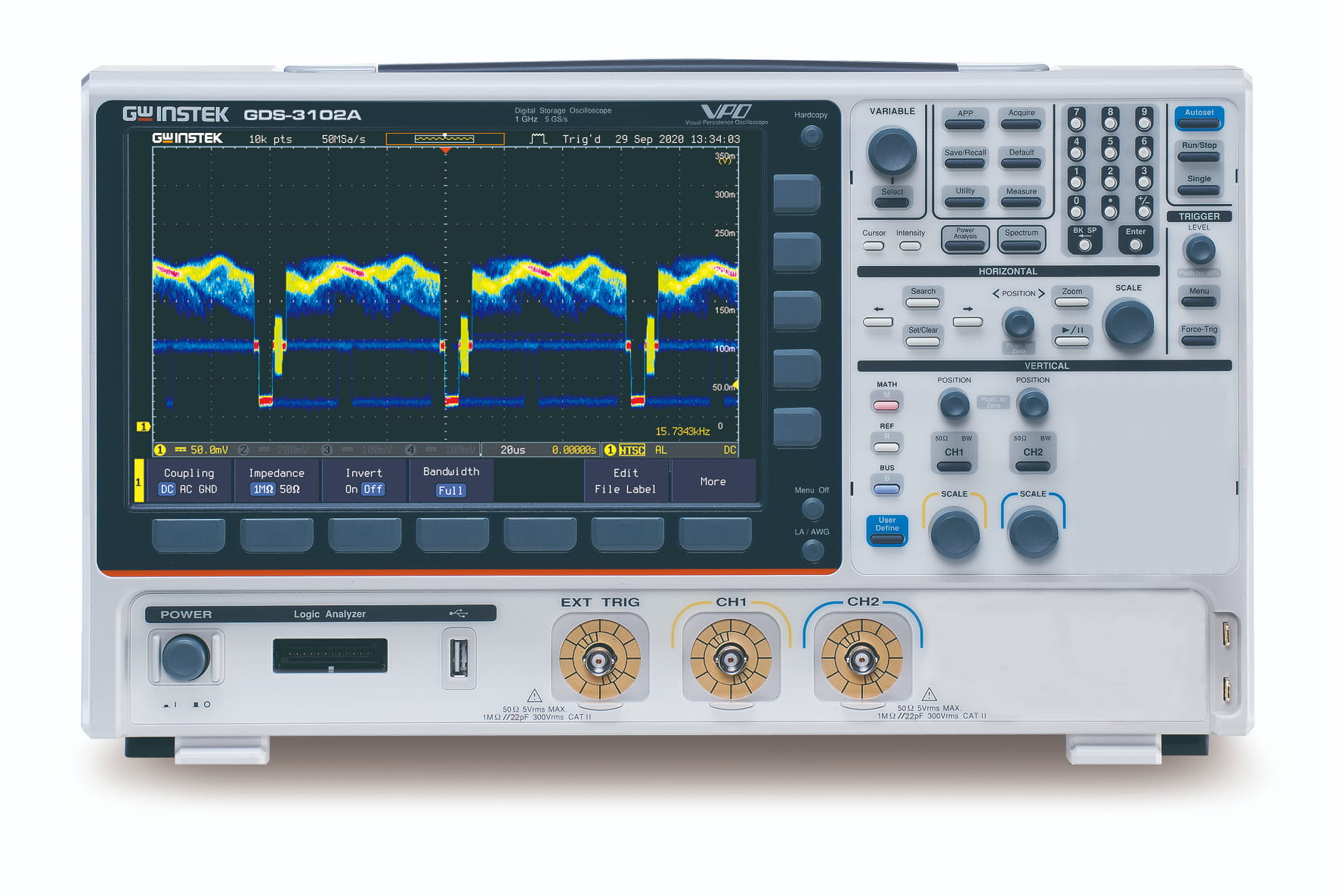

The GW Instek GDS-3102A is a high-performance 1 GHz digital storage oscilloscope from the GDS-3000A series, ideal for engineers and technicians working on high-speed digital circuits, power electronics, serial bus communication, and signal integrity analysis. With a 1 GHz bandwidth and real-time sampling rates up to 5 GSa/s, the instrument captures even the fastest transient events with precision and clarity.
Equipped with two analog channels and deep per-channel memory of 200 Mpts, the GDS-3102A allows for extended waveform capture and detailed analysis without losing signal fidelity. A large 10.2" TFT LCD display provides clear visualization of time- and frequency-domain signals, while a high waveform update rate of up to 200,000 wfms/s ensures that elusive glitches and anomalies are reliably detected.
The oscilloscope includes advanced features such as a dual-channel spectrum analyzer (DC to 2.5 GHz), dual 25 MHz arbitrary waveform generator, and comprehensive automatic measurements. Trigger and decode support for common serial buses (I²C, SPI, UART, CAN, LIN) accelerates debugging tasks. Connectivity options like USB, LAN, and RS-232 enable remote control and data transfer, with optional GPIB support for system integration.
| Bandwidth: | 1 GHz |
|---|---|
| Analog Channels: | 2 |
| Frequency Range : | 1 – 1000 Hz |
| ADC Vertical Resolution [Bit]: | 8 Bit |
| Memory: | 200 Mpts |
| Digital Channels: | Up to 16 (optional) |
