GDS-3104A
CHF 6,045.00
Product information "GDS-3104A"
GW Instek - GDS-3104-A

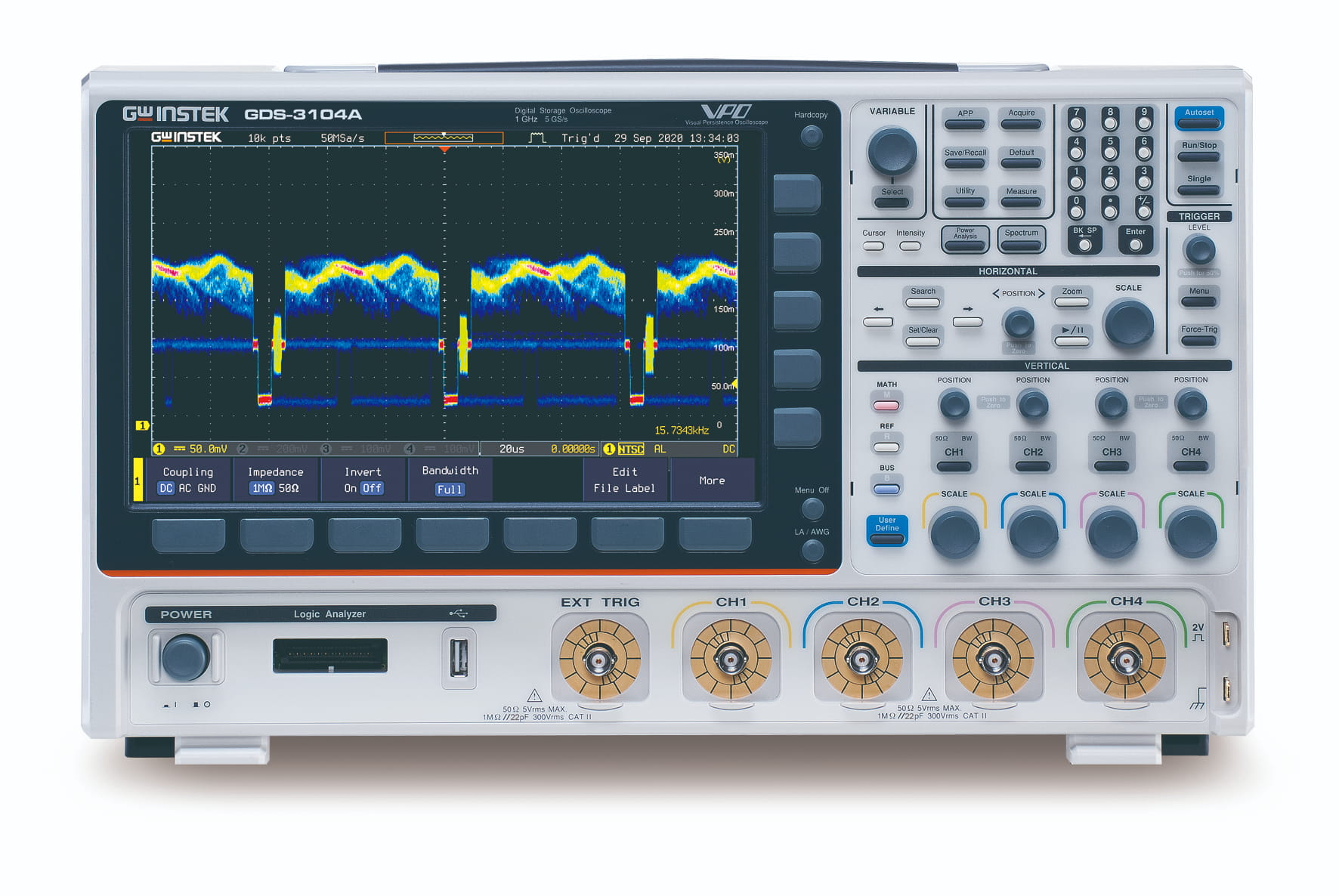

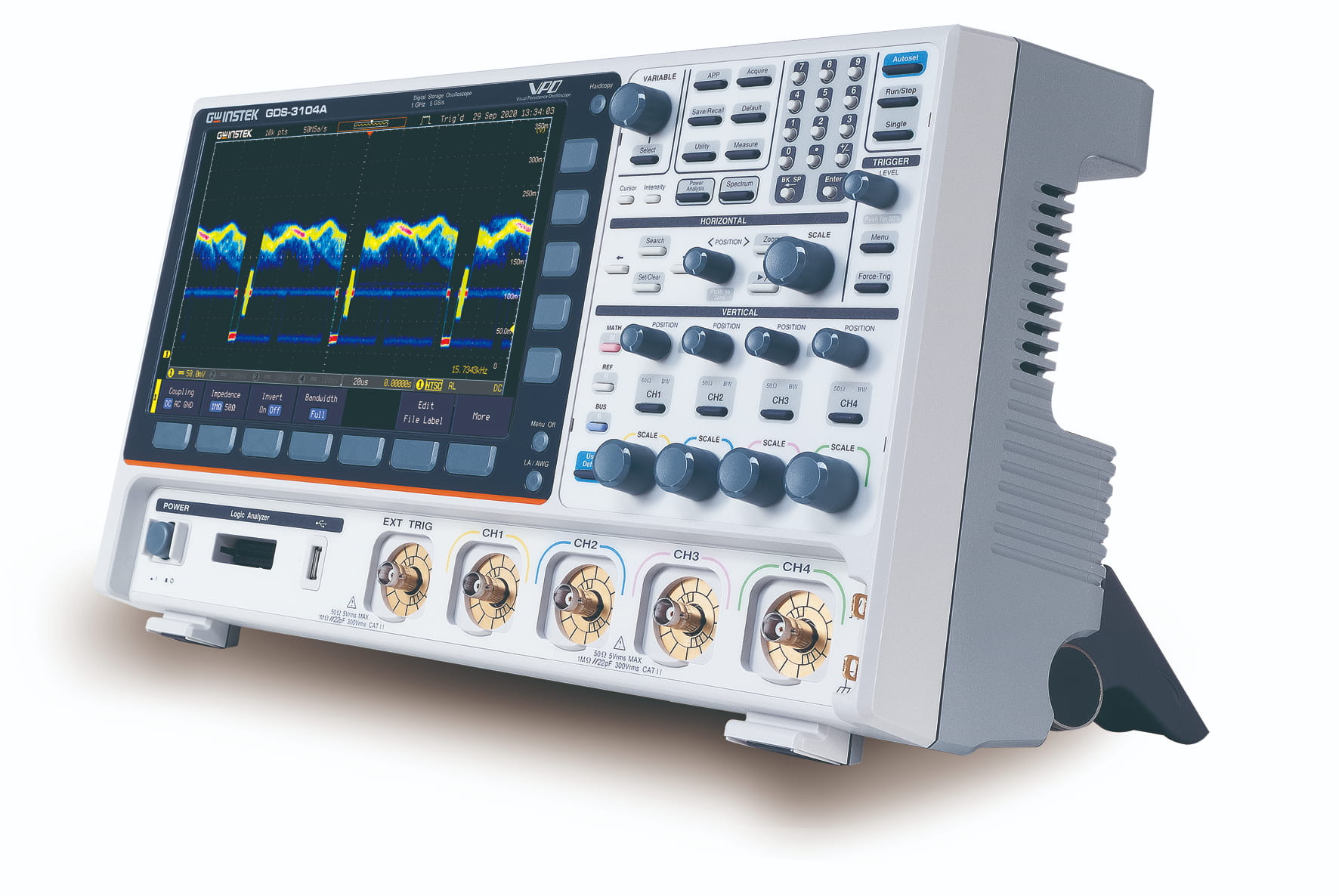

The GW Instek GDS-3104A is a high-performance 1 GHz, 4-channel digital storage oscilloscope from the GDS-3000A series, designed for advanced signal analysis, embedded system debugging, and power electronics development. With real-time sampling rates of up to 5 GSa/s and deep memory architecture, it captures high-speed transient events with exceptional accuracy.
Featuring four independent analog channels, the GDS-3104A enables multi-signal comparison and complex waveform analysis. Its large 10.2" TFT LCD display ensures clear visualization, while a waveform update rate of up to 200,000 waveforms per second allows reliable detection of sporadic signal anomalies and glitches.
The oscilloscope includes a built-in dual-channel spectrum analyzer (DC to 2.5 GHz) for combined time- and frequency-domain analysis. Optional features such as a dual 25 MHz arbitrary waveform generator (AWG) and serial bus trigger/decoding (I²C, SPI, UART, CAN, LIN) further enhance debugging efficiency. USB and LAN connectivity enable seamless integration into laboratory and automated test environments.
| Bandwidth: | 1 GHz |
|---|---|
| Analog Channels: | 4 |
| ADC Vertical Resolution [Bit]: | 8 Bit |
| Memory: | 200 Mpts |
| Digital Channels: | Up to 16 (optional) |
