GPE-4323A
CHF 351.90
% CHF 391.00 (10% saved)
Product information "GPE-4323A"
GWINSTEK - GPE-4323A

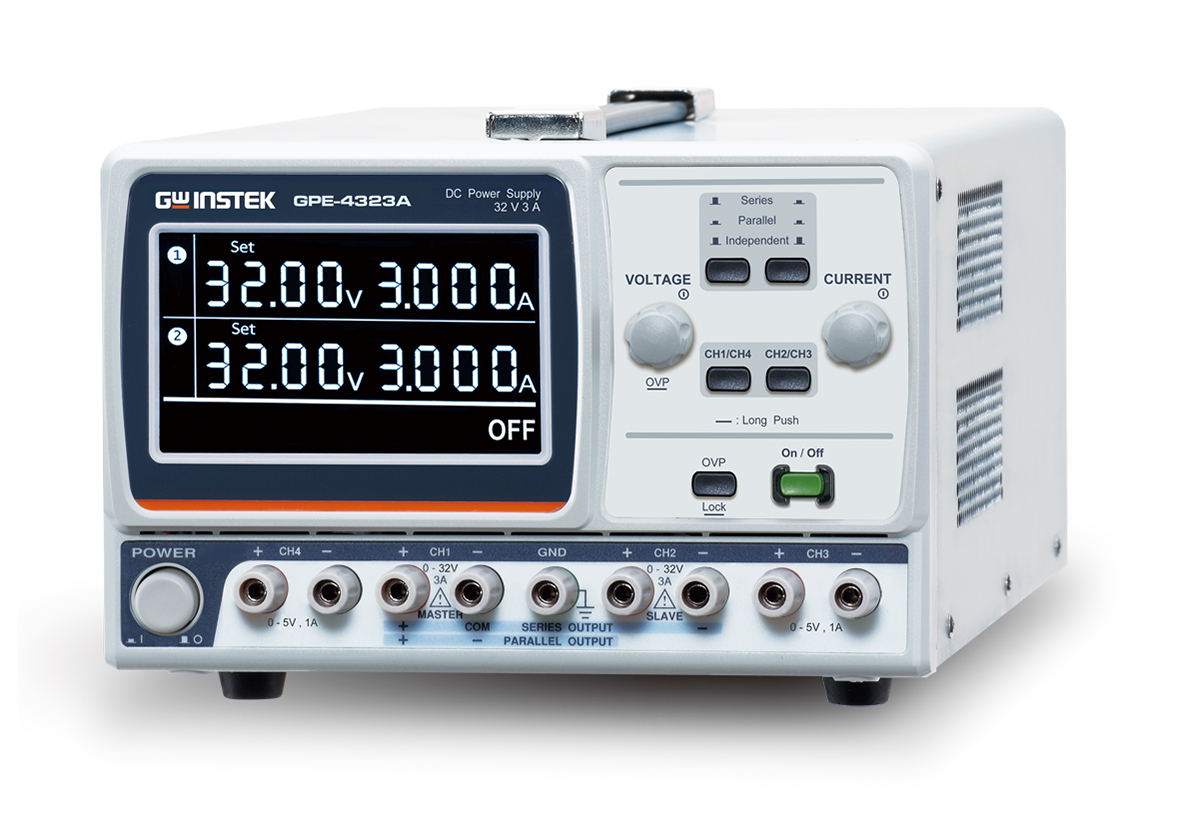

GW Instek GPE-4323A is a 212 W Quad Channel DC Power Supply
The GPE-X323A series DC power supply is the latest iteration of the GPE-X323 series, building upon its proven quality and reputation. This upgraded model refines precision with an encoder switch for more accurate voltage and current adjustments. Additionally, the digital control system has been streamlined—reducing six rotary knobs to just two—enhancing the front panel’s simplicity and ease of operation.
A key improvement in this iteration is the overvoltage protection (OVP). Unlike the previous GPE series, which relied on a single maximum voltage threshold for activation, the new A series allows independent OVP voltage settings for each channel: CH1/CH2：1 V to 36 V；CH3：5.5 V (GPE-3323A)；1 V to 6 V (GPE-4323A)；CH4：1 V to 16 V (GPE-4323A).
These refinements make the A series a more flexible and precise for multi-channel applications.
Features
- 2 / 3 / 4 Independent Isolated Output
- 4.3 Inch LCD Display
- Recovery Time：≤ 100 µs (50 % load change, minimum load 0.5 A)
- Setting & Readback Resolution 10 mV / 1 mA
- Output ON/OFF
Analog Control (Remote I/O) for Output ON / OFF
- Key Lock Function
- Tracking series and parallel operation
- Optional European Jack Type Terminal
