GW-INSTEK - GCP0275
CHF 2,986.00
Product information "GW-INSTEK - GCP0275"

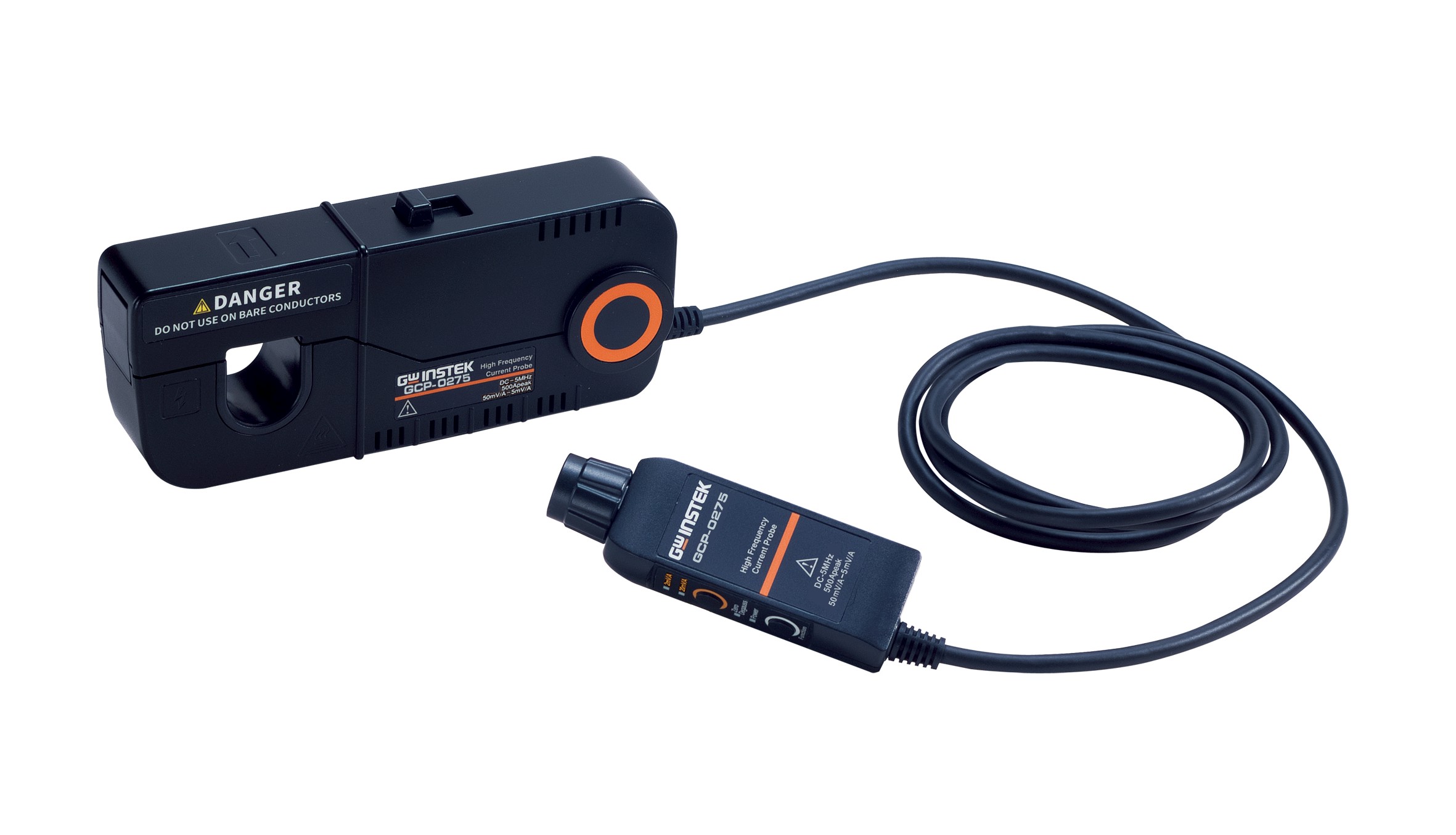

The GW Instek GCP-0275 is an AC/DC current probe for oscilloscopes, designed for accurate high-current measurements in power electronics, motor drives, and industrial applications.
It provides a bandwidth from DC to 2 MHz and supports measurements up to 750 A peak current, enabling reliable analysis of both steady-state and transient signals.

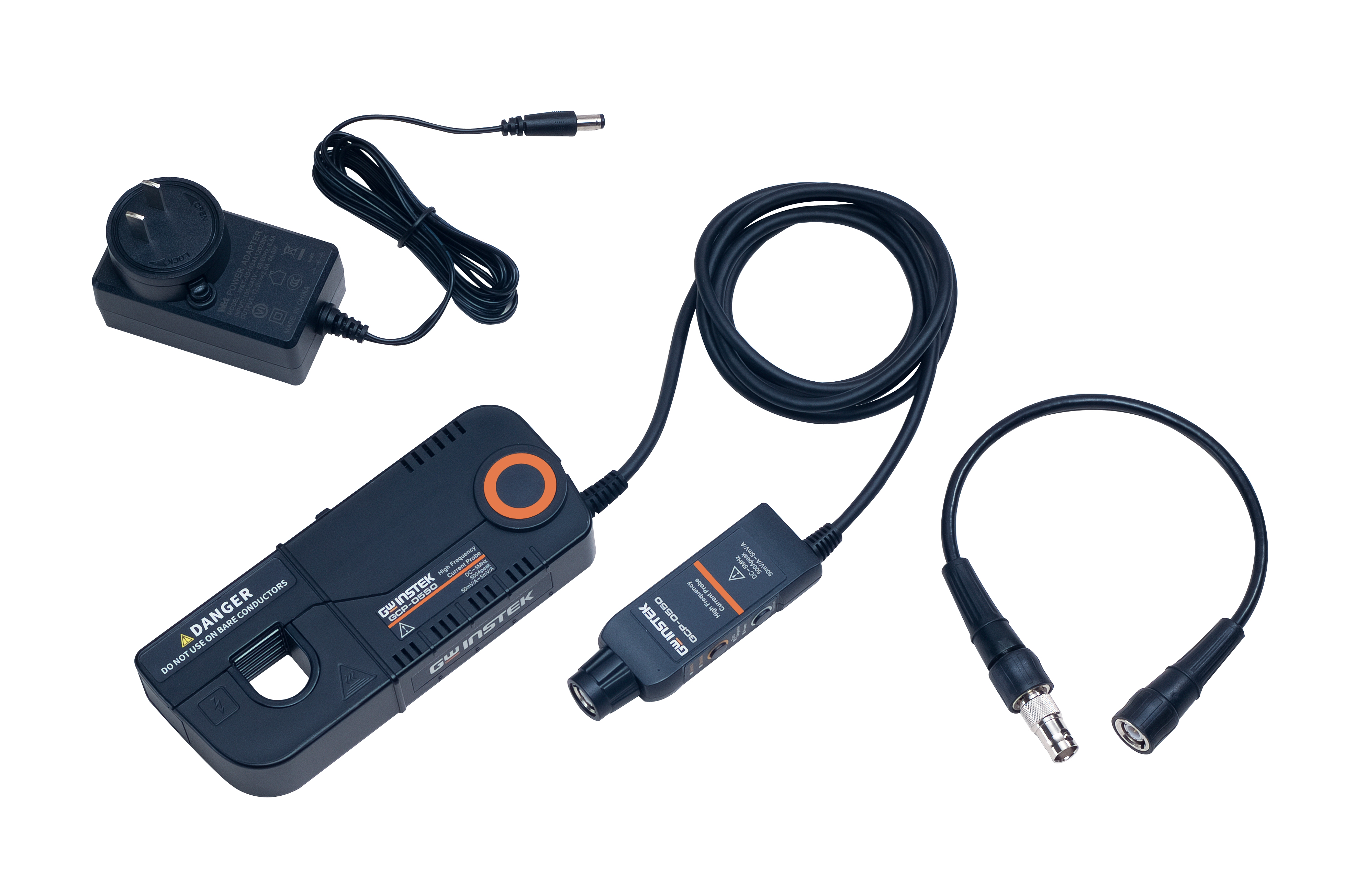

With selectable conversion ratios and low noise performance, the probe delivers precise results across a wide measurement range. The split-core clamp design allows easy attachment to conductors without interrupting the circuit, while the BNC interface ensures straightforward connection to compatible oscilloscopes.
Powered by an external supply and engineered for robust operation, the GCP-0275 offers dependable performance for laboratory, development, and maintenance environments where accurate current waveform capture is required.
Applicable Device:
GDS-3000A Series, GDS-3000 Series, MPO-2000 Series, MSO-2000EA Series, MDO-2000A Series, MDO-2000E Series, GDS-2000A Series, GDS-2000E Series, GDS-1000B Series, GDS-900 Series
| Bandwidth: | DC to 2 MHz |
|---|---|
| Clamp Diameter: | 20 mm |
| Conversion Ratio: | 2 mV/A or 20 mV/A selectable |
| Current Range: | 50 mA to 500 A RMS (up to 750 A peak) |
| Output Interface: | BNC |
| Rise Time: | ≤ 175 ns |
