GW-INSTEK - GCP2525
CHF 2,804.00
Product information "GW-INSTEK - GCP2525"

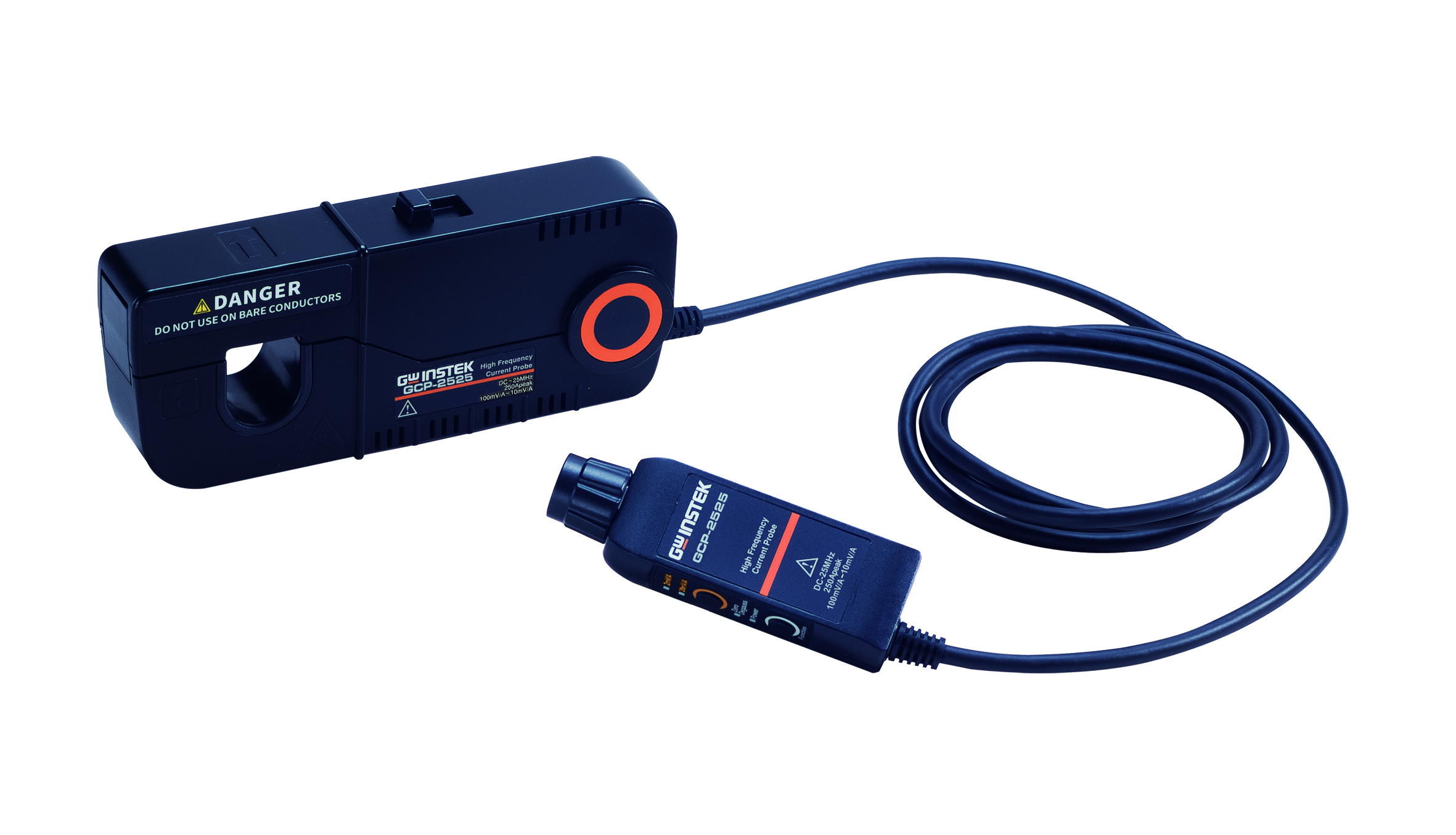

The GW Instek GCP‑2525 is a precision AC/DC current probe designed for oscilloscope measurements in industrial, automotive, and power electronics applications.
It provides a bandwidth from DC to 25 MHz and supports measurements up to 250 A peak (170 A RMS continuous), enabling accurate capture of both steady-state and fast transient currents.

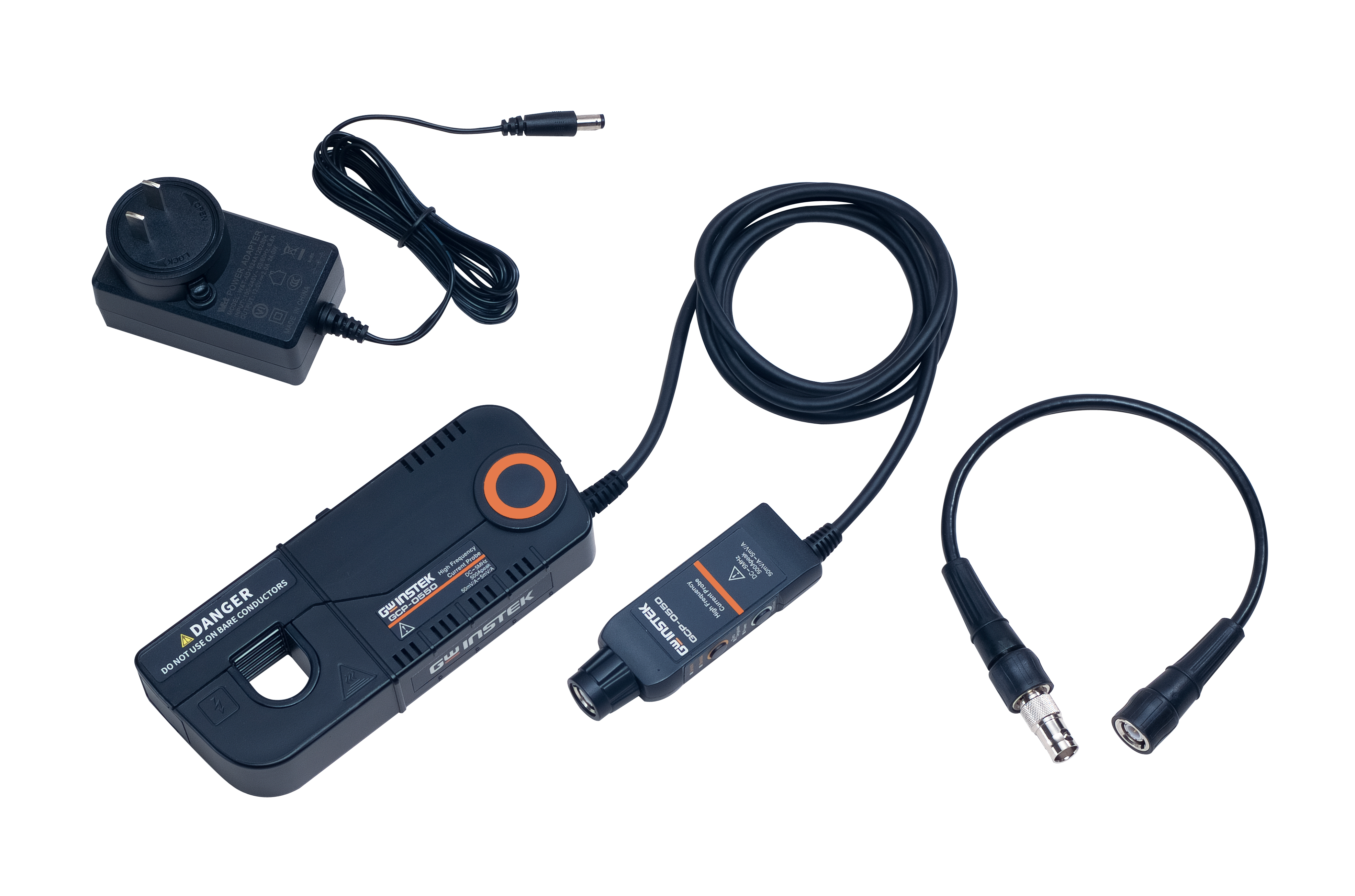

The split-core clamp design allows easy attachment to conductors without interrupting the circuit, while the BNC interface ensures simple connection to compatible oscilloscopes.
Selectable conversion ratios of 10 mV/A or 100 mV/A and low-noise performance deliver precise results across a wide measurement range. The probe is powered via a 12 V DC supply and maintains reliable operation with CAT II 600 V / CAT III 300 V safety rating, making it suitable for both laboratory and field environments.
Applicable Device:
GDS-3000A Series, GDS-3000 Series, MPO-2000 Series, MSO-2000EA Series, MDO-2000A Series, MDO-2000E Series, GDS-2000A Series, GDS-2000E Series, GDS-1000B Series, GDS-900 Series
| Bandwidth: | DC to 25 MHz |
|---|---|
| Clamp Diameter: | 20 mm |
| Conversion Ratio: | 10 mV/A, 100 mV/A |
| Current Range: | 20 mA to 250 A (170 A RMS continuous) |
| Output Interface: | BNC |
| Rise Time: | ≤ 14 ns |
