B2962C
Product information "B2962C"
KEYSIGHT - B2962C

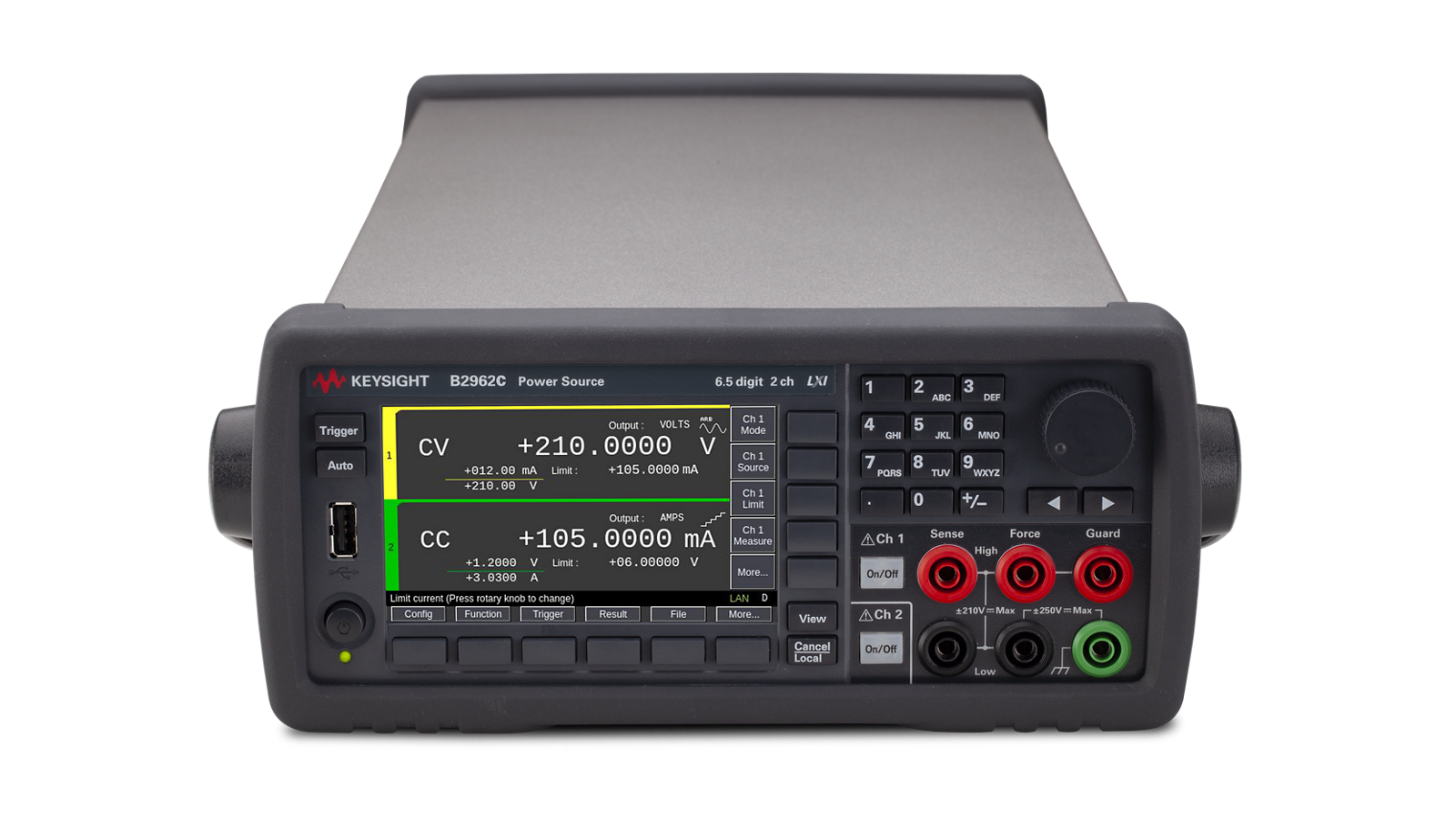

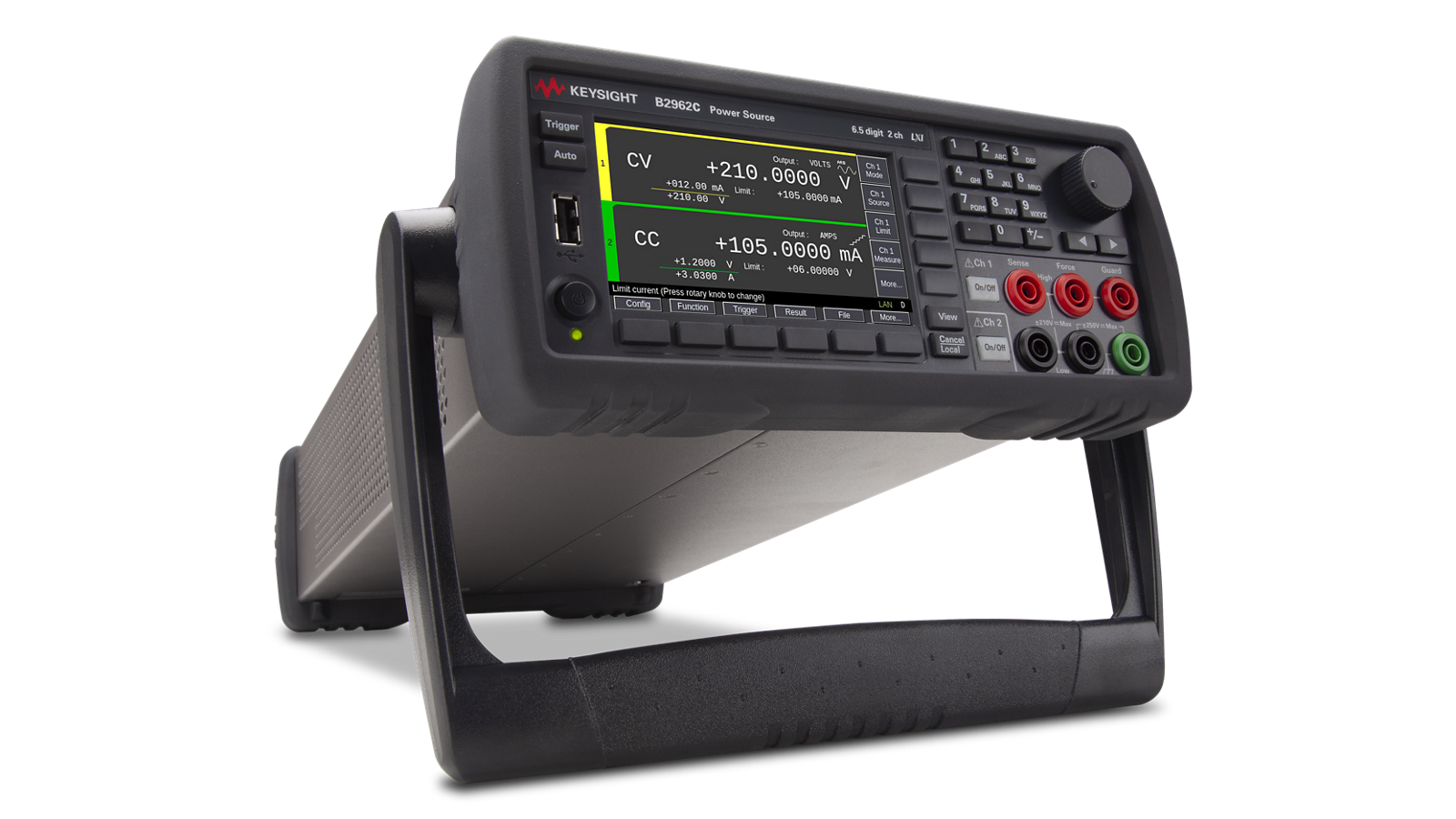

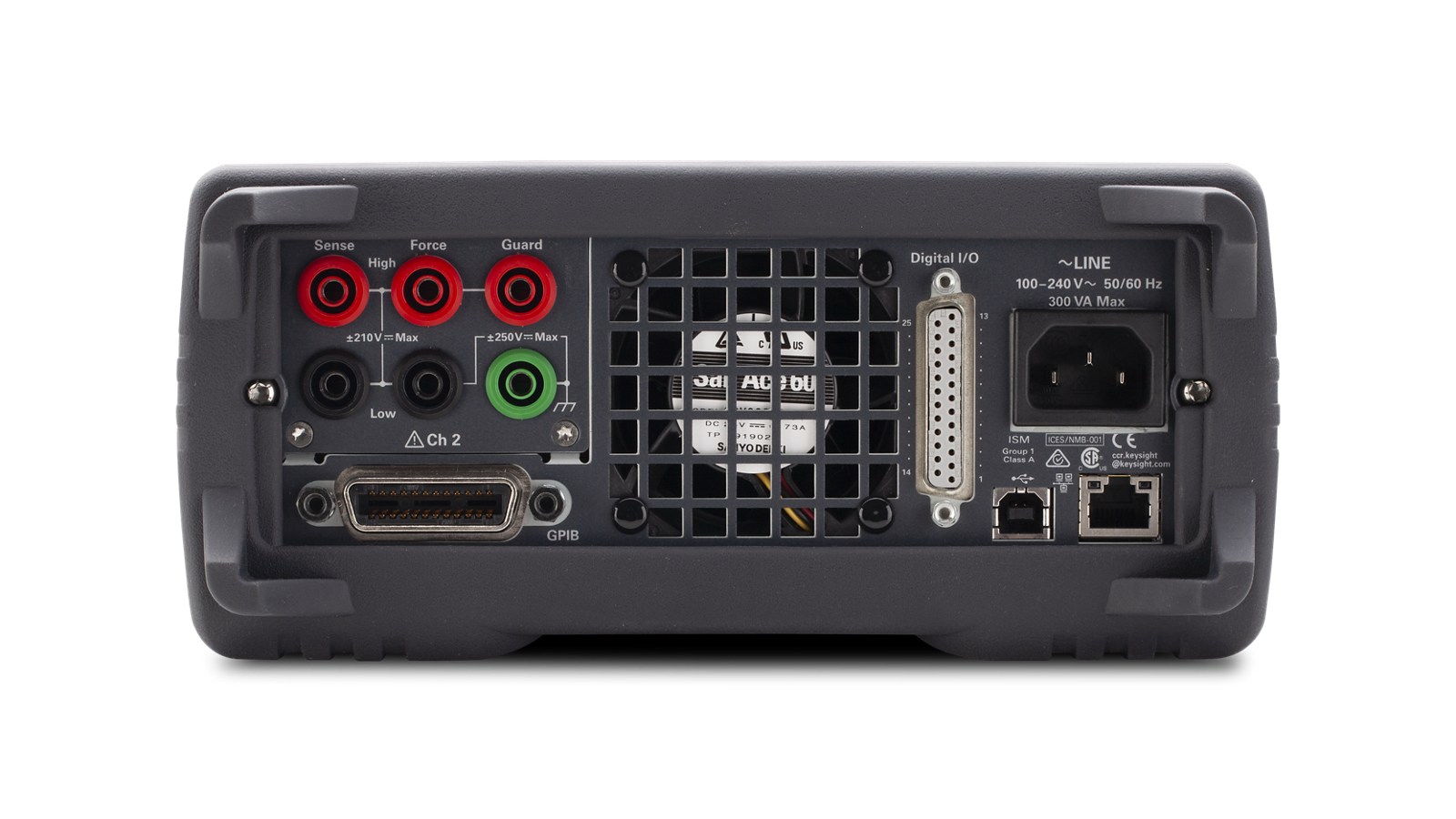

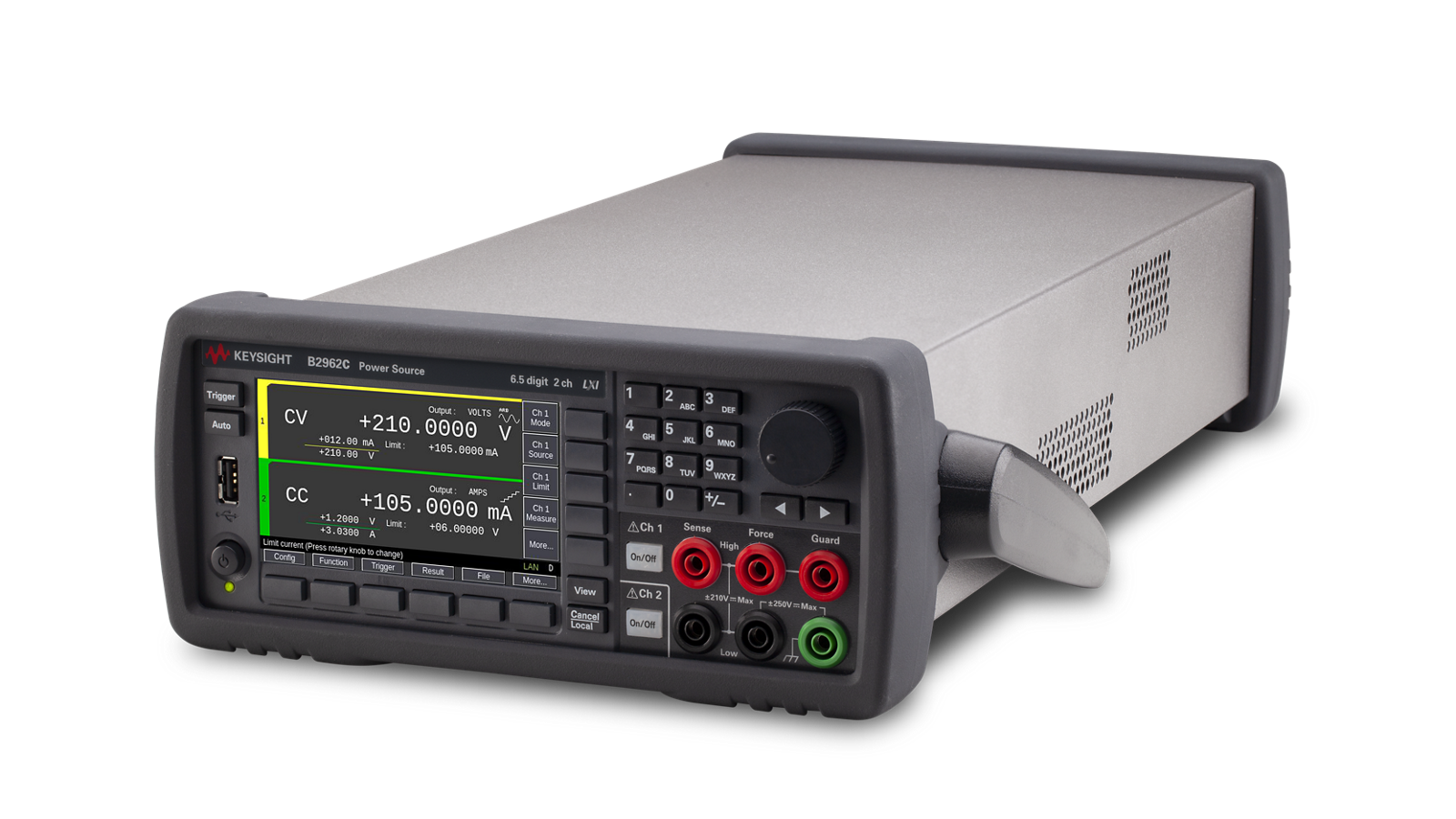

-Keysight's B2962C 6.5 Digit Low Noise Power Source is a new benchtop power supply/source with revolutionary capabilities and features not previously available. Unique features include bipolar current sources and sinks, a programmable output resistor, and a time domain waveform viewer supported in the graphical user interface (GUI).
The B2962C is a 2-channel model, the 1-channel model B2961C is also available, allowing you to select the exact bench power source power to suit your testing needs.
Key Features:
- Best-in-class 6.5-digit resolution (100 nV / 10 fA minimum resolution)
- Wide bipolar (4-quadrant) voltage/current ranges (210V, 3A (10.5A pulse))
- Extremely low noise filter (10 μVrms, 1 nV / √ Hz at 10 kHz)
- Intuitive graphical user interface with wide 4.3" color LCD
- Convenient 4.5-digit voltage/current monitor
- Time Domain Waveform Viewer for quick inspection and troubleshooting
- Precise generation of arbitrary signals in the range from 1 mHz to 10 kHz
- Flexible programmable output resistance function
- In addition to these innovative bench power/source features, the B2962B can be remotely controlled using Keysight's PC-based
-BenchVue, Quick I/V Measurement software, or via any LXI compatible web browser. These features make it easier to incorporate metrics and charts into reports and presentations.
The B2962C's superior performance and innovative features cover a wide range of test applications.
