2-channel arbitrary waveform generator with up to 1 GHz bandwidth (HBW mode), 2.5 GSa/s sampling rate, 16-bit resolution, up to 256 Mpts memory, and advanced modulation for high-speed signal generation.

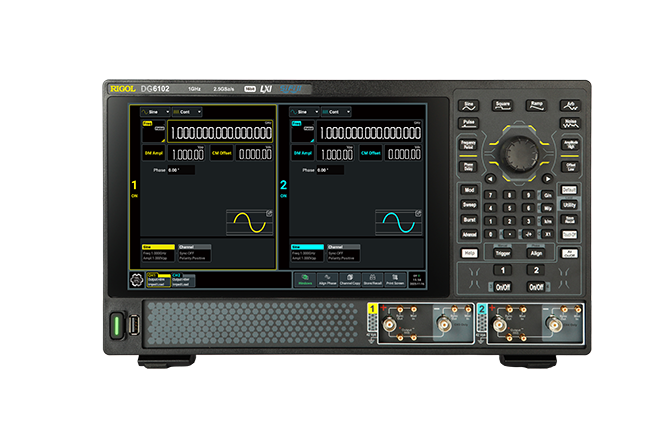

Product Description – RIGOL DG6102

The Rigol DG6102 is a high-performance 2-channel arbitrary waveform generator from the DG6000 Series, designed for high-frequency signal generation, advanced simulation, and precision testing in demanding engineering and research environments.

With a maximum bandwidth of up to 1 GHz in High Bandwidth (HBW) mode, the DG6102 enables accurate generation of high-speed signals with excellent fidelity. Combined with a real-time sampling rate of up to 2.5 GSa/s, it ensures precise waveform reproduction and stable signal output even in complex and high-frequency applications.

The generator is built on advanced DDS technology and supports both differential and single-ended output modes, providing high flexibility for various test setups. Its high-voltage differential output (up to 20 Vpp) allows direct signal generation without external amplifiers.

With 16-bit vertical resolution and up to 256 Mpts waveform memory per channel (512 Mpts optional), the DG6102 delivers detailed and highly accurate arbitrary waveform generation for complex signal scenarios.

The instrument supports a wide range of waveform types, including sine, square, ramp, pulse, noise, DC, and harmonic signals, as well as fully customizable arbitrary waveforms.

Advanced Features

• AM, FM, PM modulation
• ASK, FSK, PSK, PWM
• Sweep (linear & logarithmic)
• Burst modes (N-cycle, gated, infinite)
• Harmonic generation (up to 20th order)
• Advanced functions such as Sequence, PRBS, IQ, and pattern generation

The large 10.1-inch high-resolution touchscreen and intuitive interface enable efficient control and fast configuration, while USB, LAN, and HDMI connectivity ensure seamless integration into automated test environments.

Key Specifications

• Max Bandwidth (HBW mode): 1 GHz
• Max Square Wave Frequency: 300 MHz
• Sampling Rate: up to 2.5 GSa/s
• Vertical Resolution: 16-bit
• Channels: 2
• Arbitrary Waveform Memory: 256 Mpts/CH (512 Mpts optional)
• Output Modes: HBW (SMB), AMP (high amplitude), SND (single-ended)
• Max Output Amplitude: up to 20 Vpp (differential)
• USB, LAN (LXI), HDMI connectivity

Ideal Applications

• High-speed digital system testing
• Power semiconductor testing (SiC / GaN)
• Automotive electronics and bus simulation
• Communication system validation
• Research and advanced laboratory applications
