4-channel arbitrary waveform generator with up to 1 GHz bandwidth (HBW mode), 2.5 GSa/s sampling rate, 16-bit resolution, up to 256 Mpts memory, and advanced modulation for high-speed signal generation.

Product Description – RIGOL DG6104

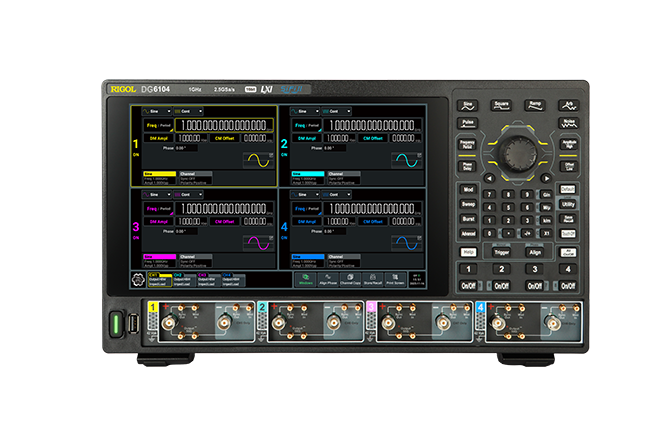

The Rigol DG6104 is a flagship 4-channel arbitrary waveform generator from the DG6000 Series, engineered for high-speed signal generation, complex multi-channel synchronization, and advanced testing applications in demanding engineering and research environments.

With a maximum bandwidth of up to 1 GHz in High Bandwidth (HBW) mode, the DG6104 delivers exceptional signal fidelity and enables precise generation of high-frequency signals. Combined with a real-time sampling rate of up to 2.5 GSa/s, it ensures accurate waveform reproduction and stable output performance across a wide frequency range.

Equipped with four fully independent channels, the DG6104 supports differential outputs (or up to 8 single-ended outputs), making it ideal for multi-channel system testing and synchronized signal generation.

The generator is built on advanced DDS technology and offers multiple output modes:

• HBW mode for maximum bandwidth up to 1 GHz
• AMP mode for high-amplitude signals up to 20 Vpp
• SND mode for standard single-ended applications

With 16-bit vertical resolution and up to 256 Mpts waveform memory per channel (512 Mpts optional), the DG6104 enables highly accurate and detailed arbitrary waveform generation.

It supports a wide range of waveform types including sine, square, ramp, pulse, noise, DC, and harmonics, as well as fully customizable arbitrary waveforms.

Advanced Features

• AM, FM, PM modulation
• ASK, FSK, PSK, PWM
• Sweep (linear & logarithmic)
• Burst modes (N-cycle, gated, infinite)
• Harmonic generation (up to 20th order)
• Advanced functions: Sequence, PRBS, Multi-tone, Pattern, IQ

Key Specifications

• Max Bandwidth (HBW mode): 1 GHz
• Max Square Wave Frequency: up to 300 MHz
• Sampling Rate: up to 2.5 GSa/s
• Vertical Resolution: 16-bit
• Channels: 4
• Arbitrary Waveform Memory: 256 Mpts/CH (512 Mpts optional)
• Output Modes: HBW, AMP, SND
• Max Output Amplitude: up to 20 Vpp (differential)
• USB, LAN (LXI), HDMI connectivity

Ideal Applications

• High-speed digital system testing
• Power electronics (SiC / GaN)
• Automotive electronics and bus simulation
• Communication system validation
• Advanced research and laboratory environments
