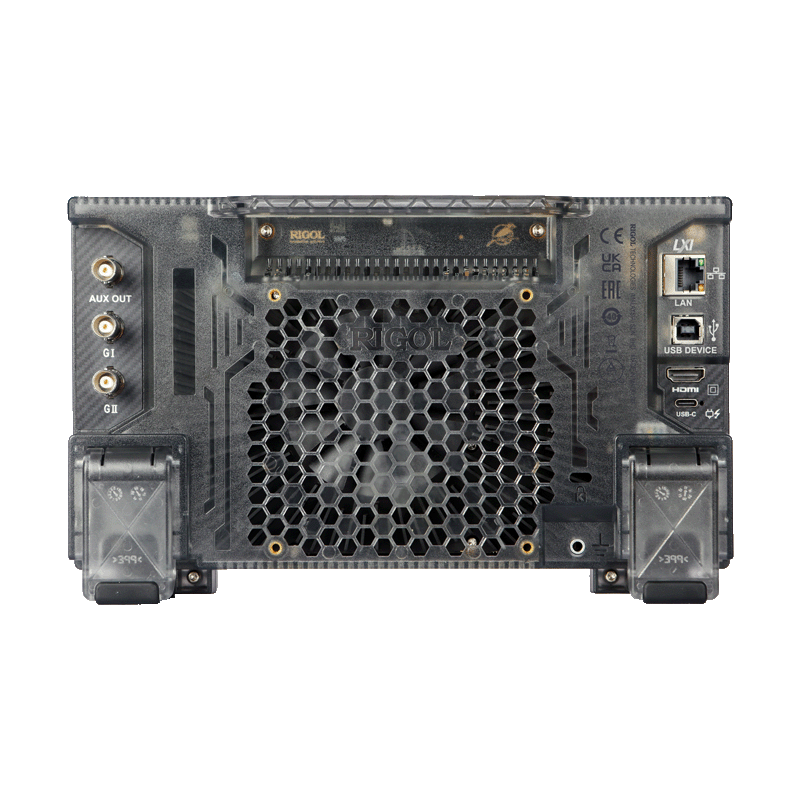

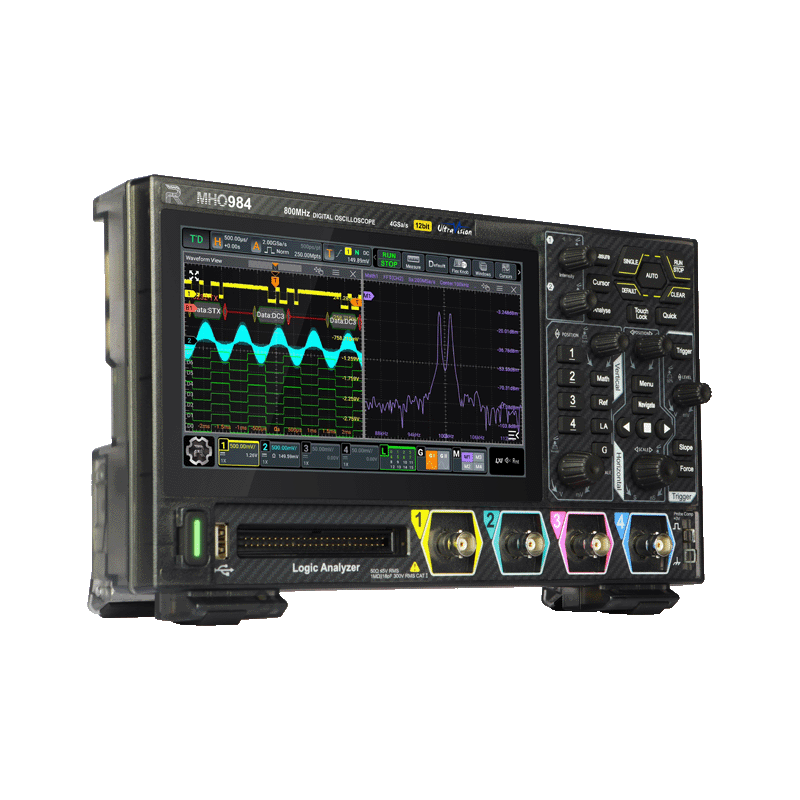

RIGOL - MHO984The Rigol MHO984 Digital Oscilloscope is a high‑resolution mixed‑signal instrument with up to 800 MHz analog bandwidth and 12‑bit vertical resolution, designed for demanding engineering, R&D, and embedded system test applications. It features 4 analog channels and optional 16 digital channels with a 200 MHz logic analyzer probe for comprehensive signal analysis. The oscilloscope delivers real‑time sample rates up to 4 GSa/s and a memory depth up to 500 Mpts (optional), enabling detailed capture of fast and complex signal transitions. With a maximum waveform capture rate of 1,000,000 wfms/s, rare and transient events are reliably detected. Advanced analysis features include serial bus triggering and decoding (RS232/UART, I²C, SPI, CAN and optional CAN‑FD/FlexRay/I2S/MIL‑STD‑1553B), histogram and digital signal analysis, waveform search/navigation, and flexible math functions. A 7″ HD capacitive touchscreen (1024×600) with real‑time phosphor display and Flex Knob ensures intuitive and efficient operation. Interfaces: USB Host, USB Device, LAN (Ethernet), HDMI.

RIGOL - MHO934 The Rigol MHO934 is a high-performance Mixed Domain Oscilloscope (MDO) from the MHO900 Series, combining ultra-wide bandwidth, real-time spectrum analysis, and deep waveform capture in a single platform. Designed for engineers working on RF systems, high-speed digital designs, and signal integrity challenges, it delivers exceptional flexibility for time- and frequency-domain analysis. With fully integrated analog, digital, and RF spectrum tools, the MHO934 provides complete insight into complex electronic systems without the need for multiple instruments. Product Highlights Ultra-High Bandwidth & Channel Count 3 GHz analog bandwidth 4 analog channels Integrated logic channels (optional MSO) Time-correlated acquisition across domains Capture fast transients, high-frequency signals, and complex modulation with precision. Mixed Domain Architecture The MHO934 combines real-time oscilloscope acquisition with real-time spectrum analysis in one instrument. This enables simultaneous time-domain and frequency-domain views without switching equipment — ideal for RF, communications, and high-speed electronics development. Comprehensive Analysis Capabilities Extensive automatic time-domain measurements Advanced waveform math including FFT Real-time spectrum analysis Waterfall and spectrogram displays High-resolution demodulation tools Advanced triggering and signal qualification These features help you isolate issues and understand both time and frequency behaviors of signals. Professional Interface & Display Large high-resolution display High waveform update rate Intensity grading and spectral overlays Intuitive, responsive user interface Designed for productive use in development labs and test environments. Key Specifications at a Glance 3 GHz analog bandwidth 4 analog channels Mixed domain (time + frequency) analysis Integrated real-time spectrum tools High-resolution display and workflow-focused interface Ideal For RF system testing and validation High-speed digital design Communication protocol analysis Signal integrity research Embedded systems development Advanced electronics laboratories The Rigol MHO934 delivers powerful mixed domain capability, combining oscilloscope precision with real-time spectrum analysis — making it a versatile solution for engineers working across time and frequency domains.
