MSO5354
CHF 1,899.00
Product information "MSO5354"
RIGOL - MSO5354

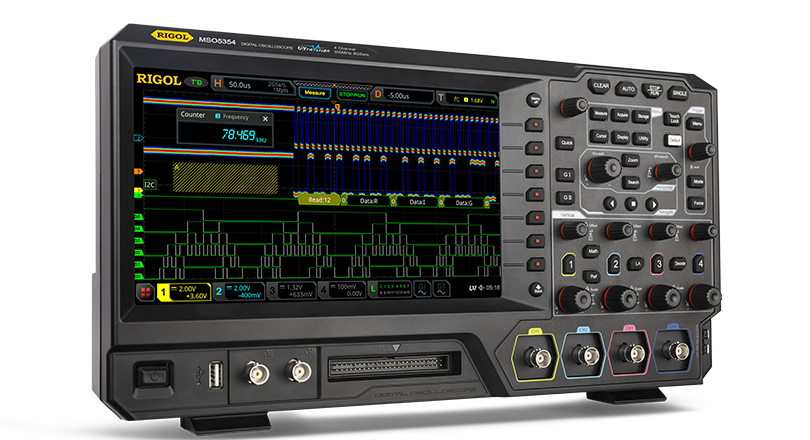

The RIGOL MSO5354 is a mixed signal oscilloscope with 350 MHz bandwidth, 8-bit vertical resolution, and 4 analog channels with optional 16 digital channels for logic analysis. It features a responsive 9-inch capacitive multi-touch display and is built on Rigol’s UltraVision II platform for high-performance signal debugging.
The oscilloscope delivers sample rates up to 8 GSa/s (single channel) and up to 2 GSa/s when all channels are active, combined with a standard 100 Mpts memory depth and optional expansion to 200 Mpts for long waveform capture and detailed analysis.
Advanced capabilities include 41 automatic measurements, full-memory hardware measurement, serial bus triggering/decoding, and hardware recording with up to 450,000 waveform frames. A waveform capture rate of up to 500,000 wfms/s helps detect sporadic signal anomalies efficiently.
Interfaces:
USB Host & Device, LAN (LXI), HDMI, TRIG OUT, USB-GPIB.
| Bandwidth: | 350 MHz |
|---|---|
| Analog Channels: | 4 |
| ADC Vertical Resolution [Bit]: | 8 Bit |
| Sample Rate: | Up to 8 GSa/s |
| Memory: | 100 Mpts |
| Digital Channels: | Up to 16 (optional) |
