Near-Field EMI Diagnostic Probe Solution

Precision EMI Detection for PCB-Level Troubleshooting

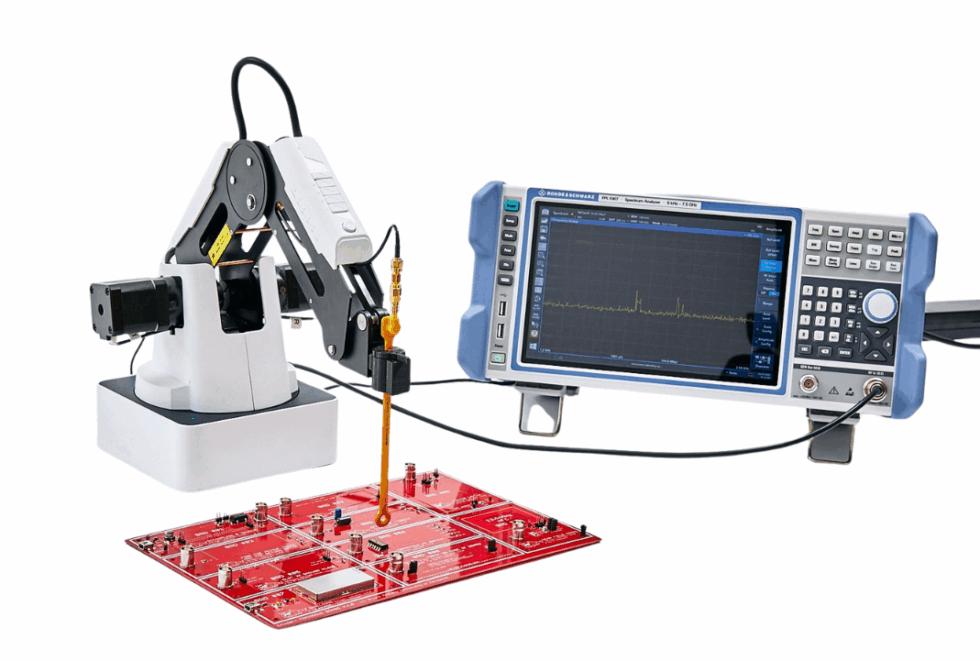

The Y.I.C. EMProbe is a professional near-field EMI probe solution designed for fast and accurate detection of electromagnetic emissions directly on PCBs and electronic assemblies. It enables engineers to identify emission sources, analyze coupling paths, and troubleshoot EMI issues during development and validation.

Ideal for use with spectrum analyzers, oscilloscopes, or EMI receivers, the EMProbe supports efficient in-house EMI diagnostics before formal compliance testing.

Product Highlights

High-Sensitivity Near-Field Detection

• Designed for near-field electromagnetic emission measurements

• Suitable for radiated EMI source localization

• High spatial resolution for PCB-level diagnostics

• Optimized for close-proximity scanning

Quickly detect problematic switching nodes, high-speed signal traces, and return path discontinuities.

Flexible Diagnostic Applications

• PCB-level EMI troubleshooting

• Pre-compliance debugging

• Power electronics noise analysis

• High-speed digital system validation

• Automotive and industrial electronics testing

An essential tool for rapid EMI root-cause identification.

Compatibility & Integration

• Compatible with spectrum analyzers

• Usable with oscilloscopes for time-domain analysis

• Suitable for EMI receivers

• Easy integration into laboratory environments

Supports both qualitative and quantitative EMI investigations depending on the connected measurement instrument.

Key Capabilities at a Glance

• Near-field electromagnetic emission detection

• PCB-level hotspot identification

• Compact and precise probe design

• Suitable for radiated emission diagnostics

• Ideal complement to EMI pre-compliance systems

Ideal For

EMC / EMI engineers
PCB design engineers
Power electronics developers
High-speed digital design teams
R&D laboratories
Pre-certification EMI troubleshooting

The Y.I.C. EMProbe provides a practical and precise solution for identifying and analyzing EMI sources directly at PCB level — helping engineers accelerate debugging and improve EMC performance before formal certification testing.

Features:

• Physical Resolution: 0.2mm
• Scanning area: 320x250 mm, 180deg
• Optional Extended Rail – 900x250 mm, 180deg Includes:
• Main Arm
• Y.I.C. NFP Set: up to 13GHz probes
• 1YR EMViewer Subscription including upgrades, support & hardware warranty.
