High-Frequency E-Field Near-Field Probe

Precision Electric-Field EMI Diagnostics up to 6 GHz

The Y.I.C. EMProbe-E6 is a high-frequency near-field probe specifically designed for electric-field (E-field) emission detection in EMI/EMC diagnostics. With frequency coverage up to 6 GHz, it enables engineers to localize high-frequency radiated emission sources directly on PCBs and electronic assemblies.

Ideal for high-speed digital systems, RF modules, and fast-switching power electronics, the EMProbe-E6 supports detailed emission analysis during development and pre-compliance troubleshooting.

Product Highlights

High-Frequency E-Field Detection

• Optimized for electric-field (E-field) measurements

• Frequency coverage up to 6 GHz

• High spatial resolution for precise hotspot localization

• Designed for close-proximity PCB scanning

Perfect for identifying emissions from high-speed traces, connectors, IC pins, and RF components.

Advanced EMI Troubleshooting

• PCB-level radiated emission diagnostics

• High-speed digital signal analysis

• RF module evaluation

• Pre-compliance emission investigation

• Detection of shielding and layout weaknesses

The EMProbe-E6 allows rapid identification of problematic emission zones before formal chamber testing.

Compatibility & Integration

• Compatible with spectrum analyzers

• Suitable for EMI receivers

• Usable with oscilloscopes (for time-correlated analysis)

• Laboratory-ready design

Can be integrated into manual diagnostic workflows or used alongside automated EMI scanning systems.

Key Capabilities at a Glance

• Electric-field near-field probe

• Frequency range up to 6 GHz

• High-resolution PCB hotspot detection

• Ideal for RF and high-speed digital diagnostics

• Compact, precision probe design

Ideal For

EMC / EMI engineers
High-speed PCB designers
RF development engineers
Automotive electronics teams
Industrial electronics developers
Advanced R&D laboratories

Features:

• Physical Resolution: ±0.1mm
• Working Radius: 450mm, J1 (±360°) J2 (±135°) J3 (±154°) J4 (±160°) J5(±173°) J6(±360°)

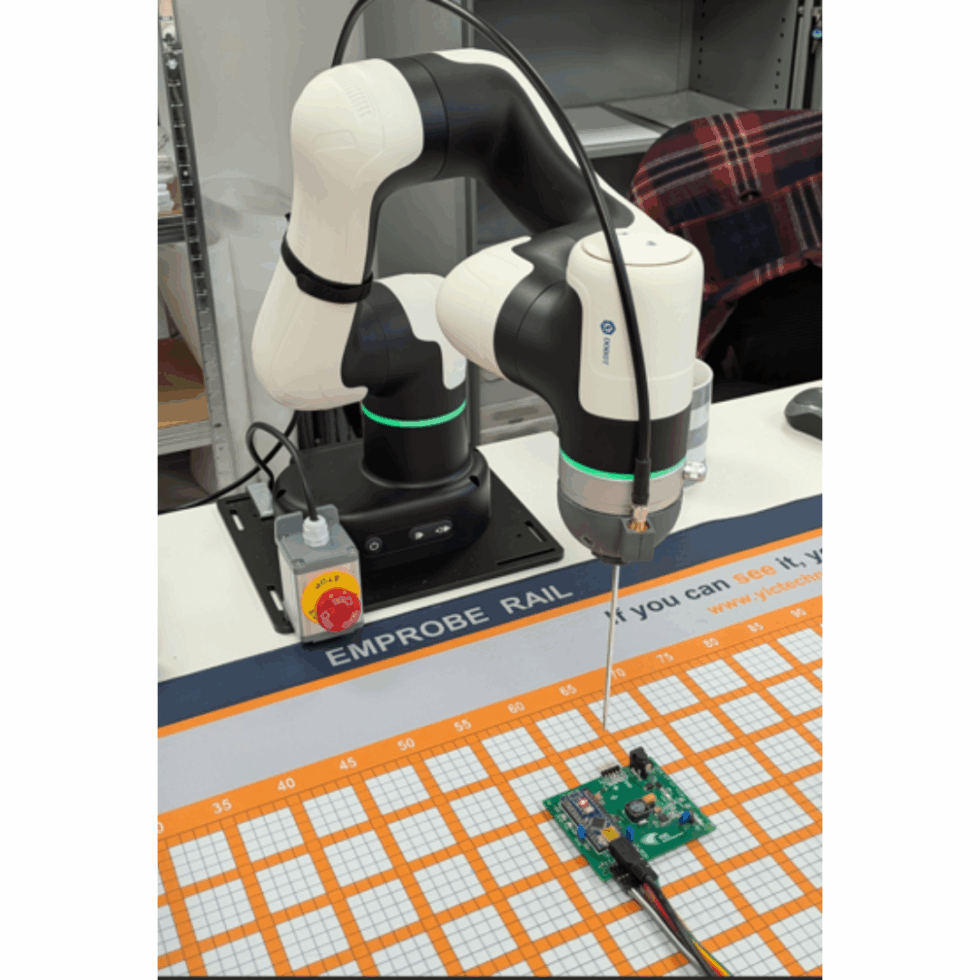

• Optional Extended Rail – 1000x450 mm, J1 (±360°) J2 (±135°) J3 (±154°) J4 (±160°) J5(±173°) J6(±360°) Includes:
• Main Arm
• Y.I.C. NFP Set: up to 13GHz probes
• 1YR EMViewer Subscription including upgrades, support & hardware warranty.
