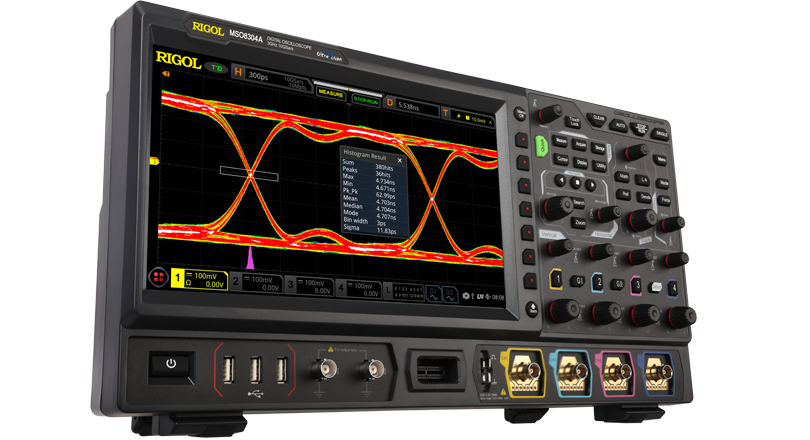

RIGOL - MSO8204A  The Rigol MSO8204A is a high-performance mixed signal oscilloscope from the MSO8200A Series, combining 2 GHz analog bandwidth with integrated logic channel support. Designed for engineers tackling advanced signal integrity validation, high-speed digital design, and demanding embedded systems, it delivers exceptional acquisition performance and a rich set of analysis tools in a professional bench-top platform. Thanks to synchronized analog and digital capture, the MSO8204A provides complete visibility into complex electronic systems, enabling faster debugging and deeper insight. Product Highlights Analog & Digital Channel Configuration 2 GHz analog bandwidth 4 analog channels 16 digital channels (MSO functionality) Time-correlated analog and digital capture Simultaneously analyze high-speed clocking, data buses, and control logic signals with detailed waveform visualization. High-Speed Sampling & Deep Memory Up to 20 GSa/s real-time sampling rate Deep memory architecture for extended waveform capture High sample rates and deep memory ensure accurate representation of fast edges and long protocol sequences without compromise. Advanced Measurement & Analysis Extensive automatic measurements Powerful math functions including FFT and spectral analysis Serial bus triggering and decoding (optional packages) Eye diagram and advanced jitter analysis options Mask testing with pass/fail analysis Sophisticated trigger system for complex events These features help reduce debugging time and improve validation efficiency for high-performance designs. Professional Interface & Workflow Large high-resolution color display Fast waveform update rate Intensity grading for rare event detection Intuitive and responsive user interface Designed for efficient operation in R&D labs, test benches, and development environments. Key Specifications at a Glance 2 GHz analog bandwidth 4 analog + 16 digital channels Up to 20 GSa/s real-time sampling Deep memory architecture Advanced triggering & protocol analysis Professional bench-top design Ideal For High-speed embedded systems Signal integrity analysis Communication interface validation Industrial and automotive electronics Advanced R&D laboratories Complex mixed-signal debugging The Rigol MSO8204A combines ultra-high bandwidth, deep memory, and synchronized mixed-signal capability — making it a powerful oscilloscope platform for engineers working with the most demanding and fastest electronic systems.

RIGOL - MSO8064  The Rigol MSO8064 is part of the MSO8000 Series and delivers 600 MHz bandwidth combined with powerful mixed-signal capability. Designed for advanced R&D, signal integrity analysis, and high-speed embedded development, it offers exceptional acquisition performance, deep memory, and comprehensive analysis tools. With synchronized analog and digital capture, the MSO8064 enables complete visibility into complex electronic systems. Product Highlights Analog & Digital Channel Configuration 600 MHz bandwidth 4 analog channels 16 digital channels (MSO functionality) Time-correlated analog and digital acquisition Simultaneously analyze power rails, clocks, data buses, and control logic signals. High-Speed Sampling & Deep Memory Up to 10 GSa/s real-time sampling rate Up to 500 Mpts memory depth (optional expansion depending on configuration) Capture fast edges and long signal sequences with high precision and resolution. Advanced Measurement & Analysis Extensive automatic measurements Advanced waveform math including FFT Serial bus triggering and decoding (optional) Eye diagram and jitter analysis (optional packages) Mask testing with pass/fail functionality History recording and advanced trigger modes These tools support efficient debugging of high-speed digital and mixed-signal systems. Modern Interface & Workflow Large 10.1-inch high-resolution display Fast waveform update rate Intensity grading to detect rare events Intuitive and responsive user interface Designed for productive operation in professional development environments. Key Specifications at a Glance 600 MHz bandwidth 4 analog + 16 digital channels Up to 10 GSa/s sampling rate Deep memory architecture 10.1-inch display Advanced triggering and analysis capabilities Ideal For High-speed embedded systems Signal integrity testing Communication interface validation Industrial electronics development Research and development laboratories Advanced mixed-signal debugging The Rigol MSO8064 combines high bandwidth, deep memory, and integrated mixed-signal capability — making it a powerful and scalable solution for engineers working with complex, high-speed electronic designs.

RIGOL - MSO8104  The Rigol MSO8104 is part of the MSO8000 Series and delivers 1 GHz bandwidth combined with powerful mixed-signal capability. Designed for high-speed digital development, signal integrity validation, and advanced R&D environments, it provides exceptional acquisition performance, deep memory, and comprehensive analysis tools in a modern bench-top platform. With synchronized analog and digital acquisition, the MSO8104 ensures complete visibility into complex electronic systems. Product Highlights Analog & Digital Channel Configuration 1 GHz bandwidth 4 analog channels 16 digital channels (MSO functionality) Time-correlated analog and digital capture Analyze high-speed clocks, data buses, control signals, and analog behavior simultaneously. High-Speed Sampling & Deep Memory Up to 10 GSa/s real-time sampling rate Up to 500 Mpts memory depth (optional depending on configuration) Capture ultra-fast edges and long data streams with high accuracy and resolution. Advanced Measurement & Analysis Extensive automatic measurements Advanced waveform math including FFT Serial bus triggering and decoding (optional) Eye diagram and jitter analysis (optional packages) Mask testing with pass/fail functionality History recording and advanced trigger modes These tools support efficient debugging and validation of high-speed mixed-signal systems. Modern Interface & Workflow Large 10.1-inch high-resolution display High waveform update rate Intensity grading for detecting rare anomalies Intuitive and responsive user interface Optimized for productivity in demanding laboratory environments. Key Specifications at a Glance 1 GHz bandwidth 4 analog + 16 digital channels Up to 10 GSa/s sampling rate Deep memory architecture 10.1-inch display Advanced triggering and analysis capabilities Ideal For High-speed embedded system development Signal integrity testing Communication interface validation Industrial electronics Research and development laboratories Advanced mixed-signal debugging The Rigol MSO8104 combines high bandwidth, deep memory, and integrated mixed-signal functionality — making it a powerful oscilloscope for engineers working with fast and complex electronic systems.

RIGOL - MSO8204  The Rigol MSO8204 is part of the MSO8200 Series and delivers 2 GHz bandwidth with integrated mixed-signal capability. Engineered for demanding high-speed signal analysis, advanced validation, and signal integrity testing, it provides class-leading performance, deep memory, and rich analysis tools — all in a modern bench-top platform. With synchronized analog and digital acquisition, the MSO8204 offers complete visibility into complex electronic systems across analog and digital domains. Product Highlights Analog & Digital Channel Configuration 2 GHz analog bandwidth 4 analog channels 16 digital channels (MSO functionality) Time-correlated analog and digital capture Ideal for analyzing high-frequency clocks, fast data lines, RF-related interfaces, and high-speed communication buses. High-Speed Sampling & Deep Memory Up to 20 GSa/s real-time sampling rate Deep memory architecture for extended acquisition windows Capture ultra-fast transitions and long waveform sequences with high precision. Advanced Measurement & Analysis Extensive automatic waveform measurements Advanced math functions including FFT and spectral analysis Serial bus triggering and decoding (optional) Eye diagram and jitter analysis options Mask test with pass/fail functionality Sophisticated trigger system for complex events These tools help reduce debug time and improve design validation for high-performance systems. Professional Interface Large high-resolution display Fast waveform update rate Intensity grading for rare event detection Intuitive and responsive user interface Designed for efficient use in professional labs, R&D environments, and production test benches. Key Specifications at a Glance 2 GHz bandwidth 4 analog + 16 digital channels Up to 20 GSa/s real-time sampling Deep memory architecture Advanced triggering & protocol analysis Professional bench-top design Ideal For High-speed digital design Signal integrity and compliance testing RF and microwave system validation Embedded system development Industrial electronics Advanced research and development The Rigol MSO8204 combines ultra-high bandwidth, deep memory, and integrated mixed-signal capability — making it a powerful solution for engineers tackling the fastest, most demanding electronic designs.

RIGOL - MSO8154A  The Rigol MSO8154A is part of the MSO8000A Series and delivers 1.5 GHz analog bandwidth with integrated mixed-signal capability. Designed for engineers working with high-speed digital systems, signal integrity challenges, and embedded applications, it combines powerful acquisition performance, deep memory, and comprehensive analysis tools in a professional bench-top platform. With synchronized analog and digital capture, the MSO8154A provides full insight into complex electronic systems. Product Highlights Analog & Digital Channel Configuration 1.5 GHz analog bandwidth 4 analog channels 16 digital channels (MSO functionality) Time-correlated analog and digital acquisition Simultaneously analyze fast clocks, high-speed data lines, and control logic signals with precision. High-Speed Sampling & Deep Memory Up to 20 GSa/s real-time sampling rate Deep memory architecture for extended waveform capture Capture both fast edges and long protocol sequences with high fidelity and resolution. Advanced Measurement & Analysis Extensive automatic waveform measurements Advanced math functions including FFT and spectral analysis Serial bus triggering and decoding (optional) Eye diagram and jitter analysis options Mask testing with pass/fail functionality Sophisticated trigger system for complex events These tools help reduce debug time and improve validation efficiency in high-performance projects. Professional Interface & Workflow Large high-resolution display Fast waveform update rate Intensity grading for rare event detection Intuitive and responsive user interface Optimized for efficient operation in R&D labs and production test environments. Key Specifications at a Glance 1.5 GHz analog bandwidth 4 analog + 16 digital channels Up to 20 GSa/s sampling rate Deep memory architecture Advanced triggering & analysis tools Bench-top design Ideal For High-speed embedded systems Signal integrity analysis High-performance digital debugging Communication interface testing Industrial electronics Research and development laboratories The Rigol MSO8154A combines high bandwidth, deep memory, and integrated mixed-signal capability — making it a powerful oscilloscope for engineers working with demanding high-speed electronic systems.
