GW Instek
GPP-4323
GW Instek - GPP-4323 The GPP series regulated DC power supply series are light weight, adjustable, multifunctional work stations. The GPP-4323 has four independent voltage outputs that are all fully adjustable. The GPP series can be used for logic circuits where various output voltage or current are needed, and for tracking mode definition systems where plus and minus voltages with insignificant error are required. Key features 4.3" TFT LCD Display Supports Setting Value, Measurement Value and Output Waveform Display Load Function (CC, CV, CR Mode) Setting Resolution: 1mV/0.1mA ; Read BackResolution: 0.1 mV / 0.1 mA Low Ripple Noise: ≤350 Vrms / ≤2 mArms Transient Response Time: ≤50 s Tracking Series and Parallel Function without Additional External Wiring Utilizing Hardware to Realize Over Voltage Protection / Over Current Protection / Over Temperature Protection Delay Function / Output Monitoring Function / Output Recorder Function Intelligent Temperature Control Fan Effectively Reduces Noise Sequential Output Function and Built-in 8 Template Waveforms The Output Recorder Function Records The Output Voltage & Current Parameters with A Minimum Recording Interval of 1 Second Provides 10 Sets of Memory for Each Sequence / Delay / Recorder / Panel Setting Condition Standard: RS-232, USB, Ext I/O Optional: GPIB + LAN Compatible with Commands of GPD-X303S Series
GOM-804
GW INSTEK - GOM-804 - Programmable DC Milli-Ohm Meter 50'000 counts The GOM-805 features 3.5-inch TFT display, maximum 50,000 counts measurement display, the rapid sampling rate of 60 readings per second, optimum 0.05% measurement precision, four wire measurement method as well as the temperature measurement and temperature compensation measurement function to meet the requirement of low resistance measurement application. The GOM-805 also includes various drive modes and Dry circuit for contact resistance measurement applications. More features, including 20 sets of panel setting memory and many external control interface such as RS-232C, USB, Handler/Scan/EXT IO or GPIB greatly elevate GOM-805 milliohm meter’s convenience on practical applications.Key features:- 50'000 counts- 3.5” (320×240) TFT LCD display- High accuracy of 0.05 % precision- 1 Amp test current, 0.1 µΩ resolution- Fast measurement of 60 readings per second- Four wire resistance measurement- Temperature compensation measurement function- Delayed measurement 20 sets of panel setting memory- Dry circuit- Drive modes: DC+/DC-, Pulsed, PWM, Zero, Standby- Interface: USB device, RS-232C, Handler/Scan/EXT I/O, and GPIB
GPS-3030DD
GW INSTEK - GPS-3030DDLinear Power Supply GPS-3030DD, 30V / 3A / 90W, Dual Display for U and IThe GPS-Series is single output, 54 to 90W, linear DC power supplies. The GPS-Series includes both analog and digital display meters with varying power outputs. The GPS-Series features Overload and reverse polarity protection as well as high regulation and low ripple / noise that are maintained at 0.01% and < 1mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.Features- Light and Compact Design- 0.01% High Regulation- Constant Voltage and Constant Current Operation- Remote Control for External Programmability Internal Select for Continuous or Dynamic- Load Low Ripple and Noise Overload and Reverse Polarity Protection Series or Parallel Operation- Optional European Type Jack Terminal for GPS-3030/GPS-3030D/GPS-3030DD
GDS-2102E
GW Instek - GDS-2102E The GW Instek GDS-2102E is a versatile digital storage oscilloscope designed for engineers, technicians, and students who need dependable signal capture and analysis. With a solid bandwidth, intuitive display, and essential measurement tools, it delivers straightforward performance for debugging, testing, and development. This oscilloscope combines essential functionality with easy operation — making it suitable for laboratory work, service and repair, education, and general-purpose applications. Product Highlights Stable Signal Capture 100 MHz bandwidth 2 analog channels Up to 1 GSa/s sampling rate Deep memory for reliable waveform acquisition Capture signals with clarity across a wide range of electronics tasks. Clear Visualization Large, high-resolution display Intensity-graded waveform presentation Adjustable brightness and contrast for improved readability Integrated Measurement & Analysis Tools Automatic measurements including voltage, time, and frequency parameters Built-in math functions such as addition, subtraction, multiplication, and FFT Standard triggering modes for stable and repeatable waveform capture Flexible Connectivity USB host interface for waveform saving and data transfer Standard probe interfaces compatible with industry probes Key Specifications at a Glance 100 MHz bandwidth 2 channels Up to 1 GSa/s sampling rate High-resolution display Automatic measurements & math functions USB connectivity Ideal For Electronics diagnostics Signal testing and debugging Educational labs Embedded system development Service and repair applications The GW Instek GDS-2102E offers dependable performance, intuitive usability, and essential measurement tools — making it a practical oscilloscope for everyday electronics work.
LCR-6100
GW Instek - LCR-6100 GW Instek LCR-6100 is a 100kHz Precision LCR Meter The LCR-6000 series, a compact LCR meter with diversified and abundant features, is an excellent tool for various application stages of passive components, including R&D, engineering testing, incoming inspection, etc., or the production and sorting of passive components. High-precision LCR-6000 meter provides test frequency from 2kHz/20kHz/100kHz/200kHz/300kHz (the highest), the basic accuracy is up to 0.05%, and there are 5 models in total. The LCR-6000 series adopts 3.5-inch color LCD and features opulent display parameters. In addition to simultaneously displaying setting criteria and measurement results, the series increases two additional monitoring parameters. In other words, there are four parameters, primary/secondary and two monitoring, simultaneously shown on the screen that tremendously enhances the measurement efficiency. The enlarge display mode not only emphasizes the measurement results, but also provides PASS/FAIL judgment to facilitate a rapid and convenient test result.Convenience is one of the unique features. The LCR-6000 series comes equipped with two zero methods, which are full frequency range and spot. Users, without turning off the power and changing test fixture, can freely change frequency within the provided frequency range to conduct measurements. By so doing, tremendous time can be saved from repeatedly executing zero operation. Additionally, frequency range of the series is consecutive that allows users to input precise frequency value to conduct the most genuine test on components.The brand new compacted LCR-6000 series can effectively improve the limitation of space. Diverse measurement functionalities and display methods are making the series the high CP ratio choice in meeting the requirements of R&D, component assessment for engineering departments, category sorting requirements for component production, and IQC for verification on component specifications. Features- 3.5” color LCD- 5 models (10Hz~2kHz/20kHz/100kHz/200kHz/300kHz)- Consecutive test frequency- Basic accuracy : 0.05%- Measuring speed up to 25ms (max.)- Full frequency range or spot OPEN/SHORT- 16 major/secondary parameter measurement combinations and two additional monitoring parameters(maximum four different parameters can be shown simultaneously)- DCR measurement and internal D.C. bias voltage (±2.5V)- PASS/FAIL judgment Auto Level Control (ALC) function- BIN function provides 9 BIN and 1 AUX, totally 10 BIN- 10 steps listed tests to select different frequency, voltage and current criteria- Standard interface : RS-232C, Handler and USB Host / Device- Compact size, ideal for automatic equipment (2U,1/2 RACK)
LCR-6300
GW Instek - LCR-6300 GW Instek LCR-6300 is a 300kHz Precision LCR Meter The LCR-6000 series, a compact LCR meter with diversified and abundant features, is an excellent tool for various application stages of passive components, including R&D, engineering testing, incoming inspection, etc., or the production and sorting of passive components. High-precision LCR-6000 meter provides test frequency from 2kHz/20kHz/100kHz/200kHz/300kHz (the highest), the basic accuracy is up to 0.05%, and there are 5 models in total.The LCR-6000 series adopts 3.5-inch color LCD and features opulent display parameters. In addition to simultaneously displaying setting criteria and measurement results, the series increases two additional monitoring parameters. In other words, there are four parameters, primary/secondary and two monitoring, simultaneously shown on the screen that tremendously enhances the measurement efficiency. The enlarge display mode not only emphasizes the measurement results, but also provides PASS/FAIL judgment to facilitate a rapid and convenient test result.Convenience is one of the unique features. The LCR-6000 series comes equipped with two zero methods, which are full frequency range and spot. Users, without turning off the power and changing test fixture, can freely change frequency within the provided frequency range to conduct measurements. By so doing, tremendous time can be saved from repeatedly executing zero operation. Additionally, frequency range of the series is consecutive that allows users to input precise frequency value to conduct the most genuine test on components. The brand new compacted LCR-6000 series can effectively improve the limitation of space. Diverse measurement functionalities and display methods are making the series the high CP ratio choice in meeting the requirements of R&D, component assessment for engineering departments, category sorting requirements for component production, and IQC for verification on component specifications. Features - 3.5” color LCD - 5 models (10Hz~2kHz/20kHz/100kHz/200kHz/300kHz) - Consecutive test frequency - Basic accuracy : 0.05% - Measuring speed up to 25ms (max.) - Full frequency range or spot OPEN/SHORT - 16 major/secondary parameter measurement combinations and two additional monitoring parameters(maximum four different parameters can be shown simultaneously) - DCR measurement and internal D.C. bias voltage (±2.5V) - PASS/FAIL judgment Auto Level Control (ALC) function - BIN function provides 9 BIN and 1 AUX, totally 10 BIN - 10 steps listed tests to select different frequency, voltage and current criteria - Standard interface : RS-232C, Handler and USB Host / Device - Compact size, ideal for automatic equipment (2U,1/2 RACK)
LCR-6200
GW Instek - LCR-6200 - LCR-6200 is a LCR Meter up to 200kHzThe LCR-6000 series, a compact LCR meter with diversified and abundant features, is an excellent tool for various application stages of passive components, including R&D, engineering testing, incoming inspection, etc., or the production and sorting of passive components.High-precision LCR-6000 meter provides test frequency from 2kHz/20kHz/100kHz/200kHz/300kHz (the highest), the basic accuracy is up to 0.05%, and there are 5 models in total. Features- 3.5” color LCD- 5 models (10Hz~2kHz/20kHz/100kHz/200kHz/300kHz)- Consecutive test frequency- Basic accuracy : 0.05%- Measuring speed up to 25ms (max.)- Full frequency range or spot OPEN/SHORT- 16 major/secondary parameter measurement combinations and two additional monitoring parameters(maximum four different parameters can be shown simultaneously)- DCR measurement and internal D.C. bias voltage (±2.5V)- PASS/FAIL judgment- Auto Level Control (ALC) function- BIN function provides 9BIN and 1AUX, totally 10 BIN- 10 steps listed tests to select different frequency, voltage and current criteria- Standard interface : RS-232C, Handler and USB Host / Device- Compact size, ideal for automatic equipment (2U,1/2 RACK)
LCR-6002
GW Instek - LCR-6002 2kHz Precision LCR MeterGW Instek introduces the brand new high-precision LCR meter - the LCR-6000 series, offering five models with a test frequency range of 2 kHz / 20 kHz / 100 kHz / 200 kHz / 300 kHz (maximum) and a basic accuracy of 0.05%. The compact design, 2U height and ½ rack, is one of the practical features of the series, which is ideal as a space-saving device for the table or system rack. The compact LCR-6000 series with its numerous features is an excellent tool for R&D, production testing, IQC, etc. in conducting all levels of passive component testing.Key Features- 3.5" color LCD- 10 Hz ~ 2 kHz (±0.01%) (4 digit resolution)- Consecutive test frequency- Basic accuracy: 0.05%.- Measuring speed up to 25 ms (max.)- Full frequency range or spot OPEN/SHORT- 16 main/secondary parameter measurement combinations and two additional monitoring parameters (a maximum of four different parameters can be displayed at the same time)- DCR measurement and internal DC bias voltage (±2.5 V)- PASS/FAIL assessment- Auto Level Control (ALC) function- BIN function provides 9BIN and 1AUX, total- 10 BIN 10 levels of listed tests to select various frequency, voltage and current criteria- Standard interface: RS-232C, Handler and USB Host/Device- Compact size ideal for automatic devices (2U ½ rack)

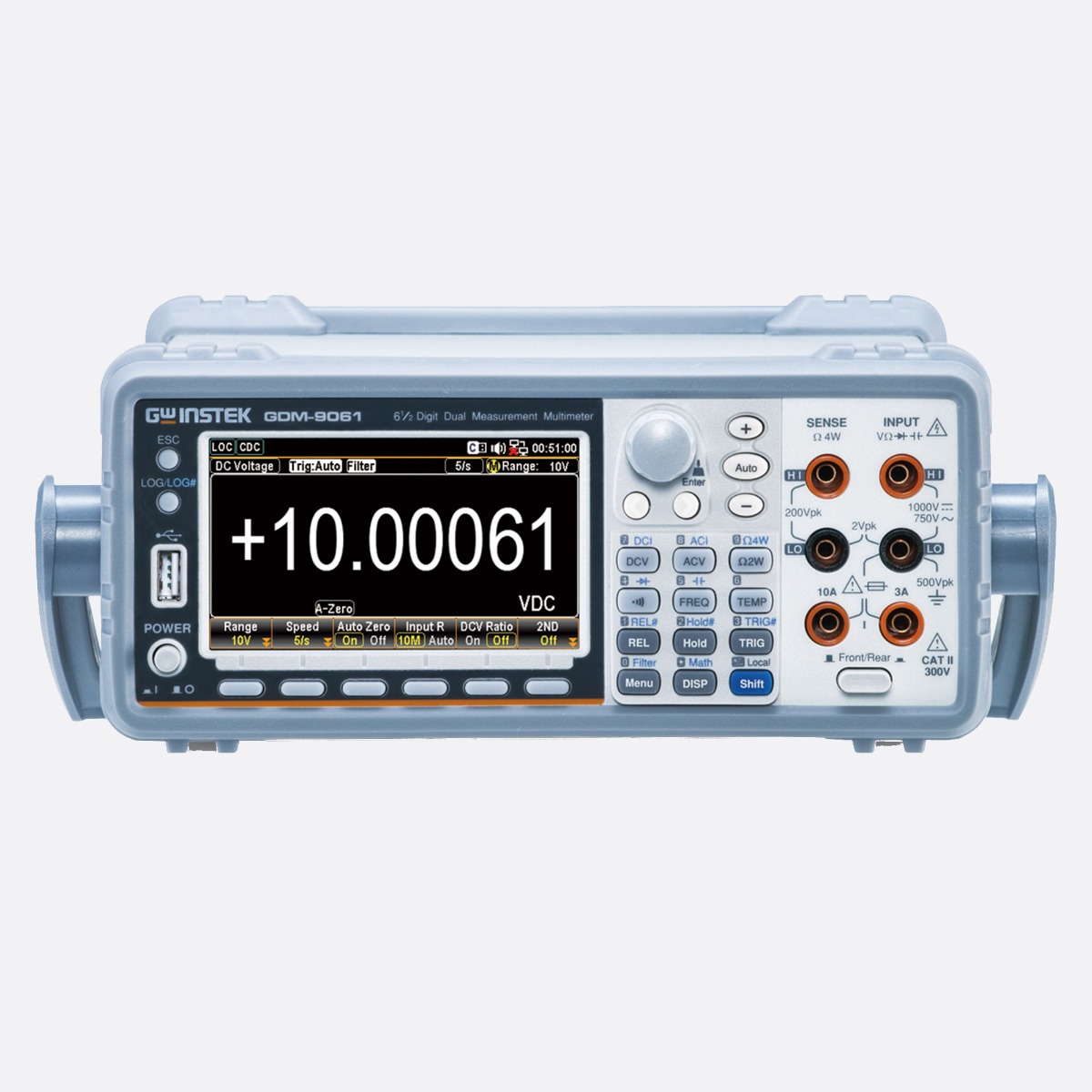

GDM-9061
GW INSTEK - GDM-9061 - 6.5 DIGIT DUAL MEASUREMENT DMMGW Instek launches GDM-9061 — 6½ digit dual measurement multimeter, featuring high precision DC voltage accuracy, fast sampling rate, 12 measurement functions (DC voltage/current, AC voltage/current, 2-wire/4-wire resistance, frequency, period, diode, continuity beeper, temperature, capacitance), 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O) to provide comprehensive measurement capabilities, higher speed and accuracy.Key features:- 6 1/2 Digit Display: 1,200,000 Counts- 4.3 TFT Graphic LCD- DCV Basic Accuracy: 0.0035 %- 12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature and Capacitance- Sampling Rate up to 10k SPS- Dual Measurement Function to Providing Two Selected Measurement Simultaneously- Offer Graphical Capabilities lncluding Histogram, Bar Meter and Trend- Temperature Measurement Support RTD, Thermistor as Well as Thermocouple- Standard Interfaces: USB Host/Device, RS-232C, LAN, Digital I/O
GDM-8351
GW INSTEK - GDM-8351 - Digit Dual Measurement Multimeter 5.5 Digits / 120'000 Counts GW Instek presents the brand new 5½ Digit Dual Measurement Multimeter ─ GDM-8351 to replace GDM-8251A of the same category. GDM-8351 features VFD dual-display, maximum 120,000 counts, 0.012% basic DC voltage accuracy and USB/RS232C connectors to provide users with measurement precision, lucid data observation, and the convenient connection with the personal computer.In addition to the fundamental measurement items such as AC/DC voltage, AC/DC current, AC+DC voltage/current, 2W/4W resistance, frequency, temperature measurement, continuity beeper and diode test, GDM-8351 also equips with the capacitance measurement function. Furthermore, the GDM-8351 also provides many auxiliary functions, including maximum/minimum values, dB, dBm, compare, reading hold, algorithms (MX+B, 1/X, %) etc. to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.For the external control, the pin of digital I/O interface not only provides the signal output frequently used by the compare function, but also allows users to define signal output for each pin. Under the self-definition mode, users can apply the I/O as a simple digital hardware. The external control requirement can be achieved by signals from each pin so as to help users reduce trouble of making hardware.With respect to remote control and retrieving data, GDM-8351, taking consideration of users’ habitual practice and universal system interface, provides standard RS-232C and USB interface to edit control programs and read measurement results. It is worth noting that for utilizing the USB interface, users have options of selecting either USBCDC or USBTMC mode. While USBTMC is selected, users are able to control instrument with the USB interface exactly the same as controlling instrument with the GPIB interface; therefore, the relatively expensive GPIB connection cable is no longer required.Key features:- Dual measurement / Dual display- Selectable measurement speeds- Various measurement items and functionalities- Convenient Digital I/O function- Free software-remote control and data retrieving- Command compatibility
GDM-531
GW INSTEK - GDM-531 - 6000 Counts Hand-Held DMM The GDM-500 Series Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet of service engineers. The GDM-500 Series design is driven by mobile-oriented features: automatic power off to preserve battery life, a large backlight display for crisp viewing, a rotary selector and push buttons to ease operation, and then NCV (Non-Contact Voltage) function for outdoor use.The basic functions match the depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Audible/Visual Alarm when Overload, Auto ranging, Duty cycle and Relative mode. The compact, reliable and economical devices are ideal for any engineer.Key features:- 6000 Counts Manual Ranging- Display Backlight/Auto Power Off- Capacitance Measurement- Non-Contact Voltage (NCV) Detection- Data Hold- Audible/Visual Alarm when Overload- Safety Rating: CAT III 600VIncluded:- User manual- Test leads- Battery
GDM-532
GW INSTEK - GDM-532 - 9999 Counts Hand-Held DMM with True RMS Measurement The GDM-500 Series Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet of service engineers. The GDM-500 Series design is driven by mobile-oriented features: automatic power off to preserve battery life, a large backlight display for crisp viewing, a rotary selector and push buttons to ease operation, and then NCV (Non-Contact Voltage) function for outdoor use.The basic functions match the depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Audible/Visual Alarm when Overload, Auto ranging, Duty cycle and Relative mode. The compact, reliable and economical devices are ideal for any engineer.Key features:- 9999 Counts Auto/Manual Ranging - Display Backlight/Auto Power Off- Continuity Beeper/Diode Test- Temperature Measurement- Duty Cycle (%) Measurement- Non-Contact Voltage (NCV) Detection- Data Hold and Relative Mode- Safety Rating: CAT II 1000V, CAT III 600VIncluded:- User manual- Test leads- Battery- K-type thermocouple
GDM-533
GW INSTEK - GDM-533 - 6000 Counts Hand-Held DMM with True RMS Measurement and USB Interface The GDM-500 Series Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet of service engineers. The GDM-500 Series design is driven by mobile-oriented features: automatic power off to preserve battery life, a large backlight display for crisp viewing, a rotary selector and push buttons to ease operation, and then NCV (Non-Contact Voltage) function for outdoor use.The basic functions match the depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Audible/Visual Alarm when Overload, Auto ranging, Duty cycle and Relative mode. The compact, reliable and economical devices are ideal for any engineer.Key features:- 6000 Counts Auto/Manual Ranging- 31 Segments Analogue Bar- LoZ ACV Measurement- ACV Measurement up to 1000V- Non-Contact Voltage (NCV) Detection- Current Measurement up to 20A- Temperature and Duty Cycle (%) Measurement- Audible/Visual Alarm when Overload- True RMS/USB Interface- Safety Rating: CAT III 1000V, CAT IV 600VIncluded:- User manual- Test leads- Battery- USB cable & Adapter socket- K-type thermocouple
GDM-541
GW INSTEK - GDM-541 - 22000 Counts Hand-Held DMM with True RMS Measurement and USB Interface The GDM-500 Series Hand Held DMM are a compact, high precision, battery operated multimeter series designed to meet of service engineers. The GDM-500 Series design is driven by mobile-oriented features: automatic power off to preserve battery life, a large backlight display for crisp viewing, a rotary selector and push buttons to ease operation, and then NCV (Non-Contact Voltage) function for outdoor use. The basic functions match the depth of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Audible/Visual Alarm when Overload, Auto ranging, Duty cycle and Relative mode. The compact, reliable and economical devices are ideal for any engineer.Key features:- 22000 Counts Auto/Manual Ranging- 46 Segments Analogue Bar- ACV Measurement up to 1000V- AC+DC Voltage Measurement- Non-Contact Voltage (NCV) Detection- Current Measurement up to 20A- Duty Cycle (%) Measurement- Transistor (hFE) Measurement- Audible/Visual Alarm when Overload- True RMS/USB Interface - Safety Rating: CAT III 1000V, CAT IV 600V Included:- User manual- Test leads- Battery- USB cable & Adapter socket
GPD-3303S
GW Instek - GPD-3303SThe GPD-3303S Power Supply contains the superior technology and high quality which GW Instek had established through its long history of power supply design and manufacturing. It offers digital panel control, large display, bright LED indicators, high output resolution, 4 sets of setup memory, USB remote control and smart cooling fan control. Additionally , the GPD-3303S product provides easy operation , a wide selection of panel setting and operation.All these features make the GPD-3303S power supply the most promising new comer in the power supply market.Features:- 3 Independent Isolated Outputs;- 4 LED Display Sets: 3 digits after decimal point;- Minimum Resolution 1mV/1mA;- Digital panel control(rotary encoder Switch, rubber key with indicator);- User-friendly operation, coarse/fine volume control;- 4 Sets Save/Recall;- Key-Lock;- Output on/off;- Tracking Series and Parallel mode;- Smart cooling fan achieving low noise;- USB Standard Interface;- PC Software & USB Driver;- Labview driver
GPD-4303S
GW INSTEK - GPD-4303S - 195W, 4-Channel, Programmable Linear D.C. Power SupplyThe GPD-4303S Power Supply contains the superior technology and high quality which GW Instek had established through its long history of power supply design and manufacturing. It offers digital panel control, large display, bright LED indicators, high output resolution, 4 sets of setup memory, USB remote control and smart cooling fan control. Additionally , the GPD-4303S product provides easy operation , a wide selection of panel setting and operation. All these features make the GPD-4303S power supply the most promising new comer in the power supply market.Features- 4 Independent Isolated Outputs- 4 LED Display Sets: 3 digits after decimal point- Minimum Resolution 1mV/1mA- Digital panel control(rotary encoder Switch, rubber key with indicator)- User-friendly operation, coarse/fine volume control- 4 Sets Save/Recall- Key-Lock- Output on/off- Tracking Series and Parallel mode- Smart cooling fan achieving low noise- USB Standard Interface- PC Software & USB Driver- Labview driver.
GPS-1850D
GW Instek - GPS-1850DThe GPS-1850D is single output, 90 W, linear DC power supply with digital display meter. The GPS-1850D features overload and reverse polarity protection as well as high regulation and low ripple / noise that are maintained at 0.01 % and <1 mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.Key featuresSingle Output: 18 V, 5 A, 90 W Light and Compact Design 0.01 % High Regulation Constant Voltage and Constant Current Operation Remote Control for External Programmability Internal Select for Continuous or Dynamic Load Low Ripple and Noise Overload and Reverse Polarity Protection Series or Parallel Operation
APS-7100E
GW INSTEK - APS-7100E - 1000VA Linear AC Power Source 1000VA, 310Vrms, 8.4ArmsGW Instek launches the APS-7000E Series the economy version of the APS-7000 Series programmable AC power source. With the height of 2U, the maximum rated output for APS-7050E is 500VA, 310Vrms, 4.2Arms and APS-7100E is 1000VA, 310Vrms, 8.4Arms. The output frequency range of the series is 45~500Hz. The series is ideal for the test and development of DC power supply devices, consumer electronics, automotive electronics and electronic components.The APS-7000E Series comprises six measurement and test functions (Vrms, Irms, F, Ipk, W, PF), and provides user interface similar to that of AC Power Meter. The APS7000E Series, via switching many sets of current levels to increase small current measurement resolution, is ideal for the LED industry and standby mode power consumption test. Ten sets of Preset allow users to store ten settings.To meet the test criteria of line voltage fluctuation often seen in consumer electronics, the APS-7000E Series not only provides a stable AC power source but also features the Test mode to satisfy special or abnormal voltage and frequency variation demands. Ten sets of the Test mode simulate power outage, voltage rise, and voltage fall. The APS7000E Series that simulates waveforms of city power grid s transient changes is suitable for verifying electronics products operated under abnormal power source.The APS-7000E Series is the economy version of the APS-7000 Series. If communications interface and larger voltage/frequency are required, please refer to the APS-7000 Series. Key features:- 4.3” large LCD Display- Output Capacity: - APS-7050E(500VA, 310Vrms, 4.2/2.1Arms) - APS-7100E(1000VA, 310Vrms, 8.4/4.2Arms)- Measurement Function: Voltage, Current, Power, Frequency, Power Factor, Ipeak - Reverse Current Alarm Function- 10 Sets of The Test Mode Simulate Power Transient Output- 10 Sets of Preset Allow Users to Store Ten Settings- OCP/OPP/OTP Protection- Variable Voltage, Frequency and Current Limiter- Universal Power Inlet
APS-7100
GWInstek - APS-7100 -APS-7100 AC Power Source 310Vrms / 8.4Arms / 1000VA / 45~999.9Hz, with universal socket GWInstek introduces APS-7000 series programmable AC power sources, which consists of 500VA of APS-7050, 1000VA of APS-7100, 2000VA of APS-7200 and 3000VA of APS-7300. APS-7000 series features power characteristics from its linear structure design including low noise, low THD, and highly stabilized power output that are ideal for the product development and verification of input power with low noise requirement or stereo, video and audio device applications, etc. The maximum rated voltage is 0~ 310Vrms, 25.2Arms, 100.8A peak current and the output frequency range is 45~500.0Hz. Users can conveniently augment the output voltage from 0Vrms to 600Vrms and output frequency from 45Hz to 999.9Hz by purchasing options without sending equipment back to GW Instek. One of the popular alternative energy solutions in the market is to utilize inverter to convert DC to AC and the converted AC is then sent to power grid or products require electricity. For instance, AC produced by PV inverter is sent to power grid or equipment requires electricity. While simulating power grid to verify inverter connecting with power grid, general AC power sources cannot withstand DUT's feedback energy, hence, additional power consumption resistors are needed to prevent AC power source from being damaged. On the contrary, APS-7000 series has the characteristic of absorbing reverse current so that additional power consumption resistors are not required. The input terminal of APS-7000 series is designed to isolate from the simulated AC power grid output terminal, therefore, users do not need an additional isolation device to protect DUT. APS-7000 series is suitable for simulating power grid and conducting inverter output characteristic tests, including synchronized phase and frequency. Reverse current and power detected by APS-7000 series will be displayed in red readings to facilitate user's test observation. APS-7000 series utilizes Simulate mode and Sequence mode to provide a single step or consecutive power changes; and to simulate power grid's Voltage Abnormality Test and Frequency Abnormality Test. Features - 4.3-inch TFT-LCD - Output capacity : APS-7050(500VA、310Vrms、4.2Arms)；APS-7100 (1000VA、310Vrms、8.4Arms)；APS-7200(2000VA、310Vrms、16.8Arms)；APS-7300 (3000VA、310Vrms、25.2Arms)；-Output augmentation by options (0~600Vrms/45~999.9Hz) - Low Ripple & Noise - Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF- Support a small AC current measurement 2mA ~ 35A, Min. resolution 0.01mA(APS- 7050& APS-7100) - Reverse Current Alarm Function - 10 sets of Sequence function to Edit Output Waveforms/ - 10 sets of simulate mode to Rapidly Simulate Transient Power Supply/ - 10 sets of Program mode to Define Measurement Sequence/ - 10 sets of Panel Memory Function - Automatic Execution of Sequence、Simulate、Program mode and Output Function when the Power is on - Standard Interfaces: LAN, USB Host, USB Device (APS-7200 and APS-7300 models only) - Optional Interfaces: GPIB (APS-001)；RS-232 / USB CDC(APS-002 for APS-7050& APS-7100 only)；RS-232(APS-007 for APS-7200& APS-7300 only)
APS-7050
GWINSTEK - APS-7050 -APS-7050 AC Power Source 310Vrms / 4.2Arms / 500VA / 45~999.9Hz, with universal socketGWInstek introduces APS-7000 series programmable AC power sources, which consists of 500VA of APS-7050, 1000VA of APS-7100, 2000VA of APS-7200 and 3000VA of APS-7300. APS-7000 series features power characteristics from its linear structure design including low noise, low THD, and highly stabilized power output that are ideal for the product development and verification of input power with low noise requirement or stereo, video and audio device applications, etc. The maximum rated voltage is 0~ 310Vrms, 25.2Arms, 100.8A peak current and the output frequency range is 45~500.0Hz. Users can conveniently augment the output voltage from 0Vrms to 600Vrms and output frequency from 45Hz to 999.9Hz by purchasing options without sending equipment back to GW Instek.One of the popular alternative energy solutions in the market is to utilize inverter to convert DC to AC and the converted AC is then sent to power grid or products require electricity. For instance, AC produced by PV inverter is sent to power grid or equipment requires electricity. While simulating power grid to verify inverter connecting with power grid, general AC power sources cannot withstand DUT's feedback energy, hence, additional power consumption resistors are needed to prevent AC power source from being damaged. On the contrary, APS-7000 series has the characteristic of absorbing reverse current so that additional power consumption resistors are not required. The input terminal of APS-7000 series is designed to isolate from the simulated AC power grid output terminal, therefore, users do not need an additional isolation device to protect DUT.APS-7000 series is suitable for simulating power grid and conducting inverter output characteristic tests, including synchronized phase and frequency. Reverse current and power detected by APS-7000 series will be displayed in red readings to facilitate user's test observation. APS-7000 series utilizes Simulate mode and Sequence mode to provide a single step or consecutive power changes; and to simulate power grid's Voltage Abnormality Test and Frequency Abnormality Test.Features- 4.3-inch TFT-LCD- Output capacity : APS-7050(500VA、310Vrms、4.2Arms)；APS-7100 (1000VA、310Vrms、8.4Arms)；APS-7200(2000VA、310Vrms、16.8Arms)；APS-7300 (3000VA、310Vrms、25.2Arms)；Output augmentation by options (0~600Vrms/45~999.9Hz)- Low Ripple & Noise- Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF- Support a small AC current measurement 2mA ~ 35A, Min. resolution 0.01mA(APS- 7050& APS-7100)- Reverse Current Alarm Function- 10 sets of Sequence function to Edit Output Waveforms/- 10 sets of simulate mode to Rapidly Simulate Transient Power Supply/- 10 sets of Program mode to Define Measurement Sequence/- 10 sets of Panel Memory Function- Automatic Execution of Sequence、Simulate、Program mode and Output Function when the Power is on- Standard Interfaces: LAN, USB Host, USB Device (APS-7200 and APS-7300 models only)- Optional Interfaces: GPIB (APS-001)；RS-232 / USB CDC(APS-002 for APS-7050& APS-7100 only)；RS-232(APS-007 for APS-7200& APS-7300 only)
ASR-2050
GWInstek - ASR-2050R - ASR-2050 (Universal), Programmable AC/DC Power Source, 500VA(RS232,USB+LAN) (CE), 350V / 10A / 500VA / 999.9HzThe ASR-2000 series, an AC+DC power source designed for system integration or desktop applications, offers both a rated output power for the AC output and a rated output power for the DC output. Nine ASR-2000 output modes are available, including 1) AC power output mode (AC-INT mode), 2) DC power output mode (DC-INT mode), 3) AC/DC power output mode (AC+DC-INT mode), 4) External AC signal source mode (AC-EXT mode), 5) External AC/DC signal source mode (AC+DC-EXT mode), 6) External AC signal superimposition mode (AC-ADD mode), 7) External AC/DC signal superimposition mode (AC+DC-ADD mode), 8) External AC signal synchronization mode (AC-SYNC mode), 9) External AC/DC signal synchronization mode (AC+DC-SYNC mode).The ASR-2000 series provides users with the ability to output waveforms to meet the testing requirements of various electronic components, automotive electrical equipment, and household appliances, including 1) Sequence mode for generating waveform drops, surges, sags, changes, and other abnormal power conditions; 2) Arbitrary waveform function, which allows users to save and upload custom waveforms; and The ASR-2000 series, an AC+DC power source designed for system integration or desktop applications, offers both a rated output power for the AC output and a rated output power for the DC output. 3) Simulation mode for simulating power failure, voltage surge, voltage dip, and frequency fluctuations. When the ASR-2000 series power supply outputs, it can also output Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, voltage harmonics, and current harmonics 40. In addition, the remote sense function ensures accurate voltage output. With the Customized Phase Angle for Output On/Off function, the start and end angles of the voltage output can be set according to the test requirements. The settings of the V-Limit, Ipeak-Limit, F-Limit, OVP, OCP, OPP functions can protect the device under test during the measurement process. In addition to OTP, OCP, and OPP protection, the ASR-2000 series features a fan failure alarm function and an AC failure alarm function. Key features - Output power: AC 0-350 Vrms, DC 0-±500 V - Output frequency up to 999.9 Hz - DC output (100% of rated power) - Measured variables: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF - Harmonic analysis of voltage and current (THDv, THDi) - Remote sensing function - OVP, OCP, OPP, OTP, AC failure detection, and fan failure alarm. - Support for the “Arbitrary Waveform” function - Output capacity: 500 VA / 1000 VA - User-defined phase angle for output on/off - Sequence and simulation function (up to 10 sets) - Interface: USB, LAN (std.); RS-232 + GPIB (opt.)- Built-in external control I/O and external signal input Built-in output relay control- Memory function (up to 10 devices) - Built-in web server
ASR-2100
GW INSTEK - ASR-2100 - (Universal)Programmable AC/DC Power Source, 1000VA, (RS232,USB+LAN) (CE)The ASR-2000 series, an AC+DC power source aiming for system integration or desktop applications, provides both rated power output for AC output and rated power output for DC output. Nine ASR-2000 output modes are available, including 1) AC power output mode (AC-INT Mode), 2) DC power output mode (DC-INT Mode), 3) AC/DC power output mode (AC+DC-INT Mode), 4) External AC signal source mode (AC-EXT Mode), 5) External AC/DC signal source mode (AC+DC-EXT Mode), 6) External AC signal superposition mode (AC-ADD Mode), 7) External AC/DC signal superposition mode (AC+DC-ADD Mode), 8) External AC signal synchronization mode (AC-SYNC Mode), 9) External AC/DC signal synchronization mode (AC+DC-SYNC Mode).The ASR-2000 series provides users with waveform output capabilities to meet the test requirements of different electronic component development, automotive electrical devices and home appliance, including 1) Sequence mode generates waveform fallings, surges, sags, changes and other abnormal power line conditions; 2) Arbitrary waveform function allows users to store/upload user-defined waveforms; and 3) Simulate mode simulates power outage, voltage rise, voltage fall, and frequency variations. When the ASR-2000 series power source outputs, it can also measure Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, 40th-order Voltage Harmonic and Current Harmonic. In addition, the Remote sense function ensures accurate voltage output. The Customized Phase Angle for Output On/Off function can set the starting angle and ending angle of the voltage output according to the test requirements. V-Limit, Ipeak-Limit, F-Limit, OVP, OCP, OPP function settings can protect the DUT during the measurement process. In addition to OTP, OCP, and OPP protection, the ASR-2000 series also incorporates the Fan fail alarm function and AC fail alarm function.Key features:- Output Rating: AC 0 – 350 Vrms, DC 0 - ± 500 V- Output Frequency up to 999.9 Hz- DC Output (100% of Rated Power)- Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF- Voltage and Current Harmonic Analysis(THDv, THDi)- Remote Sensing Capability- OVP, OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm. - Support Arbitrary Waveform Function- Output Capacity: 500VA / 1000VA- Customized Phase Angle for Output On/Off- Sequence and Simulation Function(up to 10 sets)- Interface: USB, LAN(std.); RS-232+GPIB(opt.)- Built-in External Control I/O and External Signal Input- Built-in Output Relay Control- Memory Function (up to 10 sets)- Built-in Web Server
ASR-2050R
GWInstek - ASR-2050R - ASR-2050R is an AV+DC Power Source 350V / 10A / 500VA / 999.9Hz / without fron Power ConnectorThe ASR-2000 series, an AC+DC power source designed for system integration or desktop applications, offers both a rated output power for the AC output and a rated output power for the DC output. Nine ASR-2000 output modes are available, including 1) AC power output mode (AC-INT mode), 2) DC power output mode (DC-INT mode), 3) AC/DC power output mode (AC+DC-INT mode), 4) External AC signal source mode (AC-EXT mode), 5) External AC/DC signal source mode (AC+DC-EXT mode), 6) External AC signal superimposition mode (AC-ADD mode), 7) External AC/DC signal superimposition mode (AC+DC-ADD mode), 8) External AC signal synchronization mode (AC-SYNC mode), 9) External AC/DC signal synchronization mode (AC+DC-SYNC mode).The ASR-2000 series provides users with the ability to output waveforms to meet the testing requirements of various electronic components, automotive electrical equipment, and household appliances, including 1) Sequence mode for generating waveform drops, surges, sags, changes, and other abnormal power conditions; 2) Arbitrary waveform function, which allows users to save and upload custom waveforms; and The ASR-2000 series, an AC+DC power source designed for system integration or desktop applications, offers both a rated output power for the AC output and a rated output power for the DC output. 3) Simulation mode for simulating power failure, voltage surge, voltage dip, and frequency fluctuations. When the ASR-2000 series power supply outputs, it can also output Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, voltage harmonics, and current harmonics 40. In addition, the remote sense function ensures accurate voltage output. With the Customized Phase Angle for Output On/Off function, the start and end angles of the voltage output can be set according to the test requirements. The settings of the V-Limit, Ipeak-Limit, F-Limit, OVP, OCP, OPP functions can protect the device under test during the measurement process. In addition to OTP, OCP, and OPP protection, the ASR-2000 series features a fan failure alarm function and an AC failure alarm function.Key features- Output power: AC 0-350 Vrms, DC 0-±500 V- Output frequency up to 999.9 Hz- DC output (100% of rated power)- Measured variables: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF- Harmonic analysis of voltage and current (THDv, THDi)- Remote sensing function- OVP, OCP, OPP, OTP, AC failure detection, and fan failure alarm.- Support for the “Arbitrary Waveform” function- Output capacity: 500 VA / 1000 VA- User-defined phase angle for output on/off- Sequence and simulation function (up to 10 sets)- Interface: USB, LAN (std.); RS-232 + GPIB (opt.)- Built-in external control I/O and external signal input Built-in output relay control- Memory function (up to 10 devices)- Built-in web server
ASR-2100R
GWInstek - ASR-2100R -ASR-2100R (RACK USE), Programmable AC/DC Power Source, 1000VA, (RS232,USB+LAN) (CE)The ASR-2000 series, an AC+DC power source designed for system integration or desktop applications, offers both a rated output power for the AC output and a rated output power for the DC output. Nine ASR-2000 output modes are available, including 1) AC power output mode (AC-INT mode), 2) DC power output mode (DC-INT mode), 3) AC/DC power output mode (AC+DC-INT mode), 4) External AC signal source mode (AC-EXT mode), 5) External AC/DC signal source mode (AC+DC-EXT mode), 6) External AC signal superimposition mode (AC-ADD mode), 7) External AC/DC signal superimposition mode (AC+DC-ADD mode), 8) External AC signal synchronization mode (AC-SYNC mode), 9) External AC/DC signal synchronization mode (AC+DC-SYNC mode).The ASR-2000 series provides users with the ability to output waveforms to meet the testing requirements of various electronic components, automotive electrical equipment, and household appliances, including 1) Sequence mode for generating waveform drops, surges, sags, changes, and other abnormal power conditions; 2) Arbitrary waveform function, which allows users to save and upload custom waveforms; and The ASR-2000 series, an AC+DC power source designed for system integration or desktop applications, offers both a rated output power for the AC output and a rated output power for the DC output. 3) Simulation mode for simulating power failure, voltage surge, voltage dip, and frequency fluctuations. When the ASR-2000 series power supply outputs, it can also output Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, voltage harmonics, and current harmonics 40. In addition, the remote sense function ensures accurate voltage output. With the Customized Phase Angle for Output On/Off function, the start and end angles of the voltage output can be set according to the test requirements. The settings of the V-Limit, Ipeak-Limit, F-Limit, OVP, OCP, OPP functions can protect the device under test during the measurement process. In addition to OTP, OCP, and OPP protection, the ASR-2000 series features a fan failure alarm function and an AC failure alarm function.Key features- Output power: AC 0-350 Vrms, DC 0-±500 V- Output frequency up to 999.9 Hz- DC output (100% of rated power)- Measured variables: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF- Harmonic analysis of voltage and current (THDv, THDi)- Remote sensing function- OVP, OCP, OPP, OTP, AC failure detection, and fan failure alarm.- Support for the “Arbitrary Waveform” function- Output capacity: 500 VA / 1000 VA- User-defined phase angle for output on/off- Sequence and simulation function (up to 10 sets)- Interface: USB, LAN (std.); RS-232 + GPIB (opt.)- Built-in external control I/O and external signal input Built-in output relay control- Memory function (up to 10 devices)- Built-in web server
