ITECH - IT6332A - IT6332A High Performance Triple Channels DC Power Supply 2 x 30V/6A/180W + 5V/3A/15W (RS232/USB)IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be set from 0 to maximum rated output. This series supports series connection, parallel connection and track mode, which offer multi-purpose solutions for customers test. IT6300 series is with high resolution 1mV / 1mA and remote sense function, which make the test more accurate. With built-in standard USB / RS232 / GPIB communication interface, IT6300 series greatly enhance the communication speed, and customers also can adjust the digital step value by using the cursor to facilitate the operation.Key features:- Triple adjustable voltage output, isolated 3 channels- Serial/ Parallel/ Track mode- Display voltage and current measurements continuously from all three outputs- Small size of 1/2 2U VFD display- Panel function keys with backlight display- Adjust the digital step value via cursor- Output switch control- High accuracy, high resolution and high stability- Remote measurement function, compensation online voltage drop- Comprehensive protection functions- Intelligent fan control to reduce noise- Multi interfaces for choosing, such as USB/GPIB/RS232/LAN * — Check Manual for details

ITECH - IT6151 - IT6151 Programmable Linear DC Power Supply 5.2V / 60A / 312W IT6100 series power supply is designed to meet the test requirements that general supplies can not achieve. High-speed and high-precision features make production line capacity greatly improved, different from the conventional high speed power supply, IT6100 ensures low ripple and noise while meeting the high speed requirements.Key features:• Linear programmable power supply• High-light VFD display• Lower ripple and lower noise• Built-in 5 1/2 digital voltmeter• Support SCPI communication protocol• Optional GPIB/USB/RS232 interfaces• High accuracy and high resolution• PC monitoring software • List mode operation, change output voltage and current quickly• Suitable for 19" standard rack installation Consult the datasheet for a complete list of functions and features.

ITECH - IT6152 - IT6153 Programmable Linear DC Power Supply 30V / 18A / 540WThe IT6100 series guarantees accurate measurements with 0.1 mV / 0.1 mA high resolution and high accuracy. With high-speed List mode it generates voltage waveforms to meet high-speed testing needs. The IT6100 series has a built-in 5½ digital voltmeter and milliohm meter, which can measure additional signals. The IT6100 series supports SCPI communication protocol, GPIB / USB / RS232 interfaces are optional and can be added with external adapters.Key features:- Linear programmable power supply- High-brightness VFD display- Low ripple and low noise- Built-in 5½ digital voltmeter- Supports SCPI communication protocol- Optional GPIB / USB / RS232 interfaces- High accuracy and high resolution- PC monitoring software- List mode operation, fast output voltage and current adjustment- Suitable for 19" standard rack installationConsult the datasheet for a complete list of functions and features.

ITECH - IT6153 - IT6153 Programmable Linear DC Power Supply 30V / 18A / 540WIT6100 series power supply is designed to meet the test requirements that general supplies can not achieve. High-speed and high-precision features make production line capacity greatly improved, different from the conventional high speed power supply, IT6100 ensures low ripple and noise while meeting the high speed requirements.Key features: - Linear programmable power supply- High-light VFD display- Lower ripple and lower noise- Built-in 5 1/2 digital voltmeter- Support SCPI communication protocol- Optional GPIB/USB/RS232 interfaces- High accuracy and high resolution- PC monitoring software- List mode operation, change output voltage and current quickly- Suitable for 19" standard rack installationConsult the datasheet for a complete list of functions and features.

ITECH - IT6154 - IT6154 Programmable Linear DC Power Supply 60V / 9A / 540WIT6100 series power supply is designed to meet the test requirements that general supplies can not achieve. High-speed and high-precision features make production line capacity greatly improved, different from the conventional high speed power supply, IT6100 ensures low ripple and noise while meeting the high speed requirements.Key features:- Linear programmable power supply- High-light VFD display- Lower ripple and lower noise- Built-in 5 1/2 digital voltmeter- Support SCPI communication protocol- Optional GPIB/USB/RS232 interfaces- High accuracy and high resolution- PC monitoring software- List mode operation, change output voltage and current quickly- Suitable for 19" standard rack installationConsult the datasheet for a complete list of functions and features.

ITECH - IT6333B - IT6333B High Performance Triple Channels DC Power Supply 2 x 60V/3A/180W + 5V/3A/15W (RS232/USB/GPIB)IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be set from 0 to maximum rated output. This series supports series connection, parallel connection and track mode, which offer multi-purpose solutions for customers test. IT6300 series is with high resolution 1mV / 1mA and remote sense function, which make the test more accurate. With built-in standard USB / RS232 / GPIB communication interface, IT6300 series greatly enhance the communication speed, and customers also can adjust the digital step value by using the cursor to facilitate the operation.Key features:- Triple adjustable voltage output, isolated 3 channels- Serial/ Parallel/ Track mode- Display voltage and current measurements continuously from all three outputs- Small size of 1/2 2U- VFD display- Panel function keys with backlight display- Adjust the digital step value via cursor- Output switch control- High accuracy, high resolution and high stability- Remote measurement function, compensation online voltage drop- Comprehensive protection functions- Intelligent fan control to reduce noise- Multi interfaces for choosing, such as USB/GPIB/RS232/LAN* Check Manual for details

ITECH - IT6332C- IT6332C High Performance Triple Channels DC Power Supply 2 x 30V/6A/180W + 5V/3A/15W (LAN/USB)IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be set from 0 to maximum rated output. This series supports series connection, parallel connection and track mode, which offer multi-purpose solutions for customers test. IT6300 series is with high resolution 1mV / 1mA and remote sense function, which make the test more accurate. With built-in standard USB / RS232 / GPIB communication interface, IT6300 series greatly enhance the communication speed, and customers also can adjust the digital step value by using the cursor to facilitate the operation.Key features:- Triple adjustable voltage output, isolated 3 channels- Serial/ Parallel/ Track mode- Display voltage and current measurements continuously from all three outputs- Small size of 1/2 2U- VFD display- Panel function keys with backlight display- Adjust the digital step value via cursor- Output switch control- High accuracy, high resolution and high stability- Remote measurement function, compensation online voltage drop- Comprehensive protection functions- Intelligent fan control to reduce noise- Multi interfaces for choosing, such as USB/GPIB/RS232/LAN* Check Manual for details

ITECH - IT6333C - IT6333C High Performance Triple Channels DC Power Supply 2 x 60V/3A/180W + 5V/3A/15W (LAN/USB)IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be set from 0 to maximum rated output. This series supports series connection, parallel connection and track mode, which offer multi-purpose solutions for customers test. IT6300 series is with high resolution 1mV / 1mA and remote sense function, which make the test more accurate. With built-in standard USB / RS232 / GPIB communication interface, IT6300 series greatly enhance the communication speed, and customers also can adjust the digital step value by using the cursor to facilitate the operation.Key features:- Triple adjustable voltage output, isolated 3 channels- Serial/ Parallel/ Track mode- Display voltage and current measurements continuously from all three outputs- Small size of 1/2 2U- VFD display- Panel function keys with backlight display- Adjust the digital step value via cursor- Output switch control- High accuracy, high resolution and high stability- Remote measurement function, compensation online voltage drop- Comprehensive protection functions- Intelligent fan control to reduce noise- Multi interfaces for choosing, such as USB/GPIB/RS232/LAN* Check Manual for details

ITECH - IT6411 USED DEMO UNIT The ITech IT6411 is a unique bipolar voltage/current output that can be used as a bipolar current source or bipolar electronic load. The battery simulation function is particularly suitable for the development and high-speed testing of portable, battery-powered products.The IT6400 series has an ultra-fast transient response time of less than 50 μs and a resolution of up to 1 nA. The newly developed speed shift mode enables a rapid rise in voltage and current without overshoot, with a rise time of up to 150 μs. Meanwhile, the waveform display function makes testing visible and easy. The IT6400 series can be widely used for testing portable battery-powered products, mobile power supplies, LEDs, and other areas.Key Features- Single channel, two ranges: ±15 V, ±3 A or ±9 V, ±5 A, 45 W- Bipolar output with two measurement ranges- Precise battery simulation- Oscilloscope waveform display (DSO)- Built-in high-accuracy DVM- Variable output impedance- Applicable for testing portable battery power supplies- LED test (no current overshoot)- Relay output function for galvanic isolation of connections- High-speed AD sampling- List function for generating arbitrary voltage/current output waveforms- Standard LAN/USB interface

ITECH - IT-M3422 USED DEMO UNIT  The IT-M3422 bidirectional DC power supply combines the features of a bidirectional power supply and a regenerative load. It retains the advantages of the high power density and modular architecture of the M series.It can meet the test requirements of customers with different current and power levels. Thanks to the independent multi-channel design, users can configure each channel according to the number and specifications of the device under test. At the same time, it has high-precision output and measurement, and has a series of safety designs for testing, suitable for multiple test areas, such as power modules, smart industrial devices, automotive electronics, and charging and discharging tests of various low-capacity batteries.

ITECH - IT6932A The IT6900A series programmable power supply has built-in standard RS232, USB, GPIB, RS485, and analog interfaces (RS485 and analog interfaces are only for IT6900B), supports SCPI protocol, and facilitates remote control, industrial PLC control, and the formation of an intelligent test platform. Remote compensation terminals avoid the problem of inaccurate testing caused by voltage drop on the line. Low ripple, low noise, and a built-in digital voltmeter make it easy for the IT6900A to perform external measurements. The IT6900A can be widely used in testing DC-DC power supply modules, battery chargers, sensors, and other test areas.Performance features: • VFD display • Voltage and current adjustment via rotary knob or numeric keypad • High accuracy and high resolution • Digital step value adjustment via cursor • Output of voltage and current values according to the procedure • Output timer (0.1 ~ 99999.9S) function • Low ripple and low noise • Remote sense function • Intelligent fan control • Extensive SCPI commands to facilitate the creation of an intelligent test platform • Supports front and rear panel output • Optional external analog function • Standard communication interface RS232/USB/GPIB

ITECH - IT6933A The IT6900A series programmable power supply has built-in standard RS232, USB, GPIB, RS485, and analog interfaces (RS485 and analog interfaces are only for IT6900B), supports SCPI protocol, and facilitates remote control, industrial PLC control, and the formation of an intelligent test platform. Remote compensation terminals avoid the problem of inaccurate testing caused by voltage drop on the line. Low ripple, low noise, and a built-in digital voltmeter make it easy for the IT6900A to perform external measurements. The IT6900A can be widely used in testing DC-DC power supply modules, battery chargers, sensors, and other test areas. Features: • Voltage and current adjustment via rotary knob or numeric keypad • High accuracy and high resolution • Digital step value adjustment via cursor • Output of voltage and current values according to procedure • Output timer (0.1 ~ 99999.9S) function • Low ripple and low noise • Remote sense function • Intelligent fan control • Extensive SCPI commands to facilitate the creation of an intelligent test platform • Supports front and rear panel output • Optional external analog function • Standard communication interface RS232/USB/GPIB

ITECH - IT-M3412  The IT-M3412 bidirectional DC power supply combines the features of a bidirectional power supply and a regenerative load. It retains the advantages of the high power density and modular architecture of the M series.It can meet customer test requirements for different current and power levels. Thanks to its independent multi-channel design, users can configure each channel according to the number and specifications of the device under test. At the same time, it has high-precision output and measurement, and has a series of safety designs for testing, suitable for multiple test areas, such as power modules, smart industrial devices, automotive electronics, and charging and discharging tests of various low-capacity batteries.

ITECH - IT-E151A  - 19" rack mount kit for 1 * 2U and 2 * 2U side by side Most ITECH loads (Series IT8900/IT8500 (power below 1800W)/IT8811/IT8812) and power supplies (Series IT6800, IT6900, IT6322, IT6120, IT6150, IT6400, IT6700H (except IT6726)) are compatible with a standard 19-inch cabinet.

ITECH - IT-E121 -IT-E121 Communication InterfaceRS-232 Communication interface with RS232 standard communication cable.Models of application: IT6100, IT6800, IT6322, IT6302, IT8500, IT8500+

ITECH - IT8701 - IT8701 Main Frame with GPIB, USB, RS232, Ethernet, 2 slotsThis Main Frame can accomodate up to 2 IT87xx E-Load ModulesIT8700 series programmable DC electronic load adopts removable modules design, with single frame control 8 channels, and 16 channels with extended mainframe extension transient mode up to 25 kHz , which improves your test efficiency, with high resolution and accuracy. Users can freely choose in the 8 load modules according to the number of channels and power requirements, controlled by mainframe control panel, or controlled by IT9000-PV8700 software via built-in LAN / RS232 / USB interface. IT8700, with adjustable slope, list function, automatic test and other functions, automatic test function can be set to work under CC / CV / CR / CP can be used in the application of R&D and production line. IT8700 has self-diagnosis and comprehensive OVP, OCP, OPP, OTP, etc., ensure the operator safety.Key features:- Removable modules for easy system configurability- Dual-channel module can display each channel information simultaneously- Single frame up to max.8 channels, extended frame up to max.16 channels- Dynamic power distribution function for dual channels- Measurement resolution: 0.1mV/0.01mA- Measure short-circuit peak current value and peak voltage value- Measurement speed for voltage, current up to 50kHz- Adjustable current rising / falling slope- Auto-test function, with automatic judgement whether the test result exceeds the set specification- Simulate various waveforms with load under List mode- Up to 25kHz dynamic mode- Automatic test function can automatically determine whether the test results exceed the set specifications- Simultaneously perform multiple sets of electronic load modules- OVP / OCP / OPP / OTP / anti-reverse protection function- Built-in Ether Net / USB / RS232 communication interface • Support anti-reverse alarm function

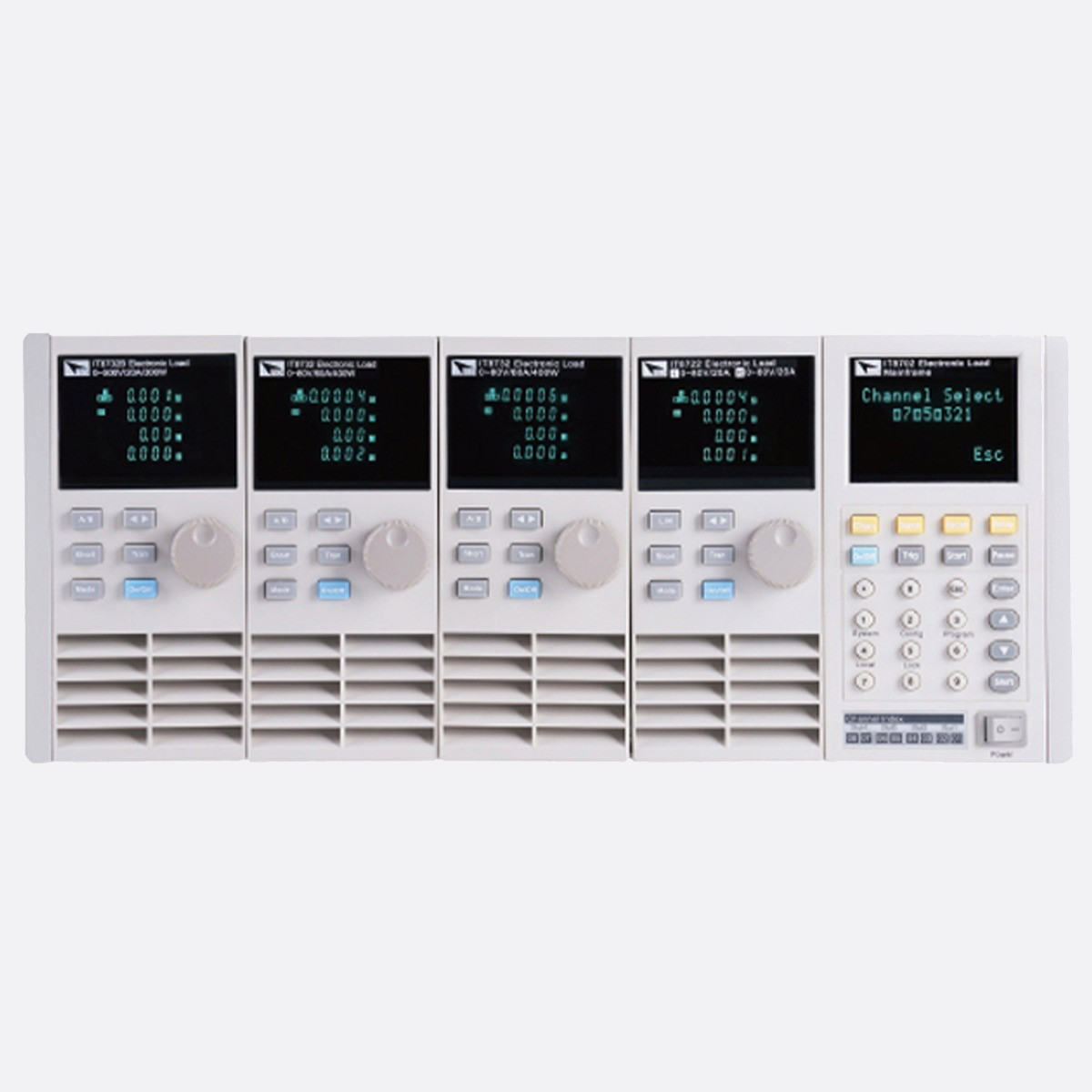

ITECH - IT8702 The IT8700 series programmable DC electronic load adopts a removable module design, with single-frame control of 8 channels and 16 channels with extended mainframe expansion transient mode up to 25 kHz, which improves your test efficiency with high resolution and accuracy. Users can freely choose from the 8 load modules according to the number of channels and power requirements, controlled by the mainframe control panel, or controlled by IT9000-PV8700 software via integrated LAN/RS232/USB interface. IT8700, with adjustable slope, list function, automatic test, and other functions, automatic test function can be set to work under CC/CV/CR/CP, can be used in R&D and production line applications. IT8700 has self-diagnosis and comprehensive OVP, OCP, OPP, OTP, etc., ensuring operator safety. Performance features: • Removable modules for easy system configurability • The dual-channel module can display the information from each channel simultaneously • Single screen up to a maximum of 8 channels, expanded screen up to a maximum of 16 channels • Dynamic power distribution function for two channels • Measurement resolution: 0.1 mV/0.01 mA • Measurement of short-circuit peak current and peak voltage values • Measurement speed for voltage and current up to 50kHz • Adjustable current rise and fall slope • Self-test function with automatic assessment of whether the test result exceeds the set specification • Simulate various waveforms with load in list mode • Dynamic mode up to 25kHz • Automatic test function can automatically determine whether the test results exceed the set specifications • Simultaneous execution of multiple sets of electronic load modules • OVP/OCP/OPP/OTP/anti-reverse protection function • Built-in Ether Net/USB/RS232 communication interface • Support for anti-reverse alarm function

ITECH - IT8722 - IT8722 DC E-load 2 channels: 2 x 80V / 20A / 250W (Total 300W max.) This E-Load module fits into one slot of a IT8701 or IT8702 Modular E-Load Main Frame. It cannot be used without a Main Frame.IT8700 series programmable DC electronic load adopts removable modules design, with single frame control 8 channels, and 16 channels with extended mainframe extension transient mode up to 25 kHz , which improves your test efficiency, with high resolution and accuracy. Users can freely choose in the 8 load modules according to the number of channels and power requirements, controlled by mainframe control panel, or controlled by IT9000-PV8700 software via built-in LAN / RS232 / USB interface. IT8700, with adjustable slope, list function, automatic test and other functions, automatic test function can be set to work under CC / CV / CR / CP can be used in the application of R&D and production line. IT8700 has self-diagnosis and comprehensive OVP, OCP, OPP, OTP, etc., ensure the operator safety. Key features:- Removable modules for easy system configurability- Dual-channel module can display each channel information simultaneously- Single frame up to max.8 channels, extended frame up to max.16 channels- Dynamic power distribution function for dual channels- Measurement resolution: 0.1mV/0.01mA- Measure short-circuit peak current value and peak voltage value- Measurement speed for voltage, current up to 50kHz - Adjustable current rising / falling slope- Auto-test function, with automatic judgement whether the test result exceeds the set specification- Simulate various waveforms with load under List mode- Up to 25kHz dynamic mode- Automatic test function can automatically determine whether the test results exceed the set specifications- Simultaneously perform multiple sets of electronic load modules- OVP / OCP / OPP / OTP / anti-reverse protection function- Built-in Ether Net / USB / RS232 communication interface- Support anti-reverse alarm function

ITECH - IT8722B - IT8722B DC E-load 2 channels: 2 x 500V / 15A / 150W (Total 300W max.)This E-Load module fits into one slot of a IT8701 or IT8702 Modular E-Load Main Frame.It cannot be used without a Main Frame.IT8700 series programmable DC electronic load adopts removable modules design, with single frame control 8 channels, and 16 channels with extended mainframe extension transient mode up to 25 kHz , which improves your test efficiency, with high resolution and accuracy. Users can freely choose in the 8 load modules according to the number of channels and power requirements, controlled by mainframe control panel, or controlled by IT9000-PV8700 software via built-in LAN / RS232 / USB interface. IT8700, with adjustable slope, list function, automatic test and other functions, automatic test function can be set to work under CC / CV / CR / CP can be used in the application of R&D and production line. IT8700 has self-diagnosis and comprehensive OVP, OCP, OPP, OTP, etc., ensure the operator safety.Key features:- Removable modules for easy system configurability- Dual-channel module can display each channel information simultaneously- Single frame up to max. 8 channels, extended frame up to max.16 channels- Dynamic power distribution function for dual channels- Measurement resolution: 0.1mV/0.01mA- Measure short-circuit peak current value and peak voltage value- Measurement speed for voltage, current up to 50kHz- Adjustable current rising / falling slope- Auto-test function, with automatic judgement whether the test result exceeds the set specification- Simulate various waveforms with load under List mode- Up to 25kHz dynamic mode- Automatic test function can automatically determine whether the test results exceed the set specifications- Simultaneously perform multiple sets of electronic load modules- OVP / OCP / OPP / OTP / anti-reverse protection function- Built-in Ether Net / USB / RS232 communication interface- Support anti-reverse alarm function

ITECH - IT8723 - IT8723 DC E-load 2 channels: 2 x 80V / 45A / 300W (Total 600W max.)This E-Load module fits into one slot of a IT8701 or IT8702 Modular E-Load Main Frame.It cannot be used without a Main Frame.IT8700 series programmable DC electronic load adopts removable modules design, with single frame control 8 channels, and 16 channels with extended mainframe extension transient mode up to 25 kHz , which improves your test efficiency, with high resolution and accuracy. Users can freely choose in the 8 load modules according to the number of channels and power requirements, controlled by mainframe control panel, or controlled by IT9000-PV8700 software via built-in LAN / RS232 / USB interface. IT8700, with adjustable slope, list function, automatic test and other functions, automatic test function can be set to work under CC / CV / CR / CP can be used in the application of R&D and production line. IT8700 has self-diagnosis and comprehensive OVP, OCP, OPP, OTP, etc., ensure the operator safety.Key features:- Removable modules for easy system configurability- Dual-channel module can display each channel information simultaneously- Single frame up to max.8 channels, extended frame up to max.16 channels- Dynamic power distribution function for dual channels- Measurement resolution: 0.1mV/0.01mA- Measure short-circuit peak current value and peak voltage value- Measurement speed for voltage, current up to 50kHz- Adjustable current rising / falling slope- Auto-test function, with automatic judgement whether the test result exceeds the set specification- Simulate various waveforms with load under List mode- Up to 25kHz dynamic mode- Automatic test function can automatically determine whether the test results exceed the set specifications- Simultaneously perform multiple sets of electronic load modules- OVP / OCP / OPP / OTP / anti-reverse protection function- Built-in Ether Net / USB / RS232 communication Interface

ITECH - IT8731 USED DEMO UNIT The IT8731 is a Load Module 80V/40A/200W that fits into the IT870x Mainframe.The IT8700 series programmable DC electronic load adopts a removable module design, with single-frame control of 8 channels and 16 channels with extended mainframe expansion transient mode up to 25 kHz, which improves your test efficiency with high resolution and accuracy. Users can freely choose from the 8 load modules according to the number of channels and power requirements, controlled by the mainframe control panel, or controlled by IT9000-PV8700 software via integrated LAN/RS232/USB interface. IT8700, with adjustable slope, list function, automatic test, and other functions, automatic test function can be set to work under CC/CV/CR/CP, can be used in R&D and production line applications. IT8700 has self-diagnosis and comprehensive OVP, OCP, OPP, OTP, etc., ensuring operator safety. Performance features:• Removable modules for easy system configurability• The dual-channel module can display the information from each channel simultaneously• Single screen up to a maximum of 8 channels, expanded screen up to a maximum of 16 channels• Dynamic power distribution function for two channels• Measurement resolution: 0.1 mV/0.01 mA• Measurement of short-circuit peak current and peak voltage values• Measurement speed for voltage and current up to 50kHz• Adjustable current rise and fall slope• Self-test function with automatic assessment of whether the test result exceeds the set specification• Simulate various waveforms with load in list mode• Dynamic mode up to 25kHz• Automatic test function can automatically determine whether the test results exceed the set specifications• Simultaneous execution of multiple sets of electronic load modules• OVP/OCP/OPP/OTP/anti-reverse protection function• Built-in Ether Net/USB/RS232 communication interface• Support for anti-reverse alarm function

ITECH - IT8733 - IT8733 DC E-load 1 channel: 80V / 120A / 600WThis E-Load module fits into one slot of a IT8701 or IT8702 Modular E-Load Main Frame. It cannot be used without a Main FrameIT8700 series programmable DC electronic load adopts removable modules design, with single frame control 8 channels, and 16 channels with extended mainframe extension transient mode up to 25 kHz , which improves your test efficiency, with high resolution and accuracy. Users can freely choose in the 8 load modules according to the number of channels and power requirements, controlled by mainframe control panel, or controlled by IT9000-PV8700 software via built-in LAN / RS232 / USB interface. IT8700, with adjustable slope, list function, automatic test and other functions, automatic test function can be set to work under CC / CV / CR / CP can be used in the application of R&D and production line. IT8700 has self-diagnosis and comprehensive OVP, OCP, OPP, OTP, etc., ensure the operator safety.Key features:- Removable modules for easy system configurability- Dual-channel module can display each channel information simultaneously- Single frame up to max.8 channels, extended frame up to max.16 channels- Dynamic power distribution function for dual channels- Measurement resolution: 0.1mV/0.01mA- Measure short-circuit peak current value and peak voltage value- Measurement speed for voltage, current up to 50kHz- Adjustable current rising / falling slope- Auto-test function, with automatic judgement whether the test result exceeds the set specification- Simulate various waveforms with load under List mode- Up to 25kHz dynamic mode- Automatic test function can automatically determine whether the test results exceed the set specifications- Simultaneously perform multiple sets of electronic load modules- OVP / OCP / OPP / OTP / anti-reverse protection function- Built-in Ether Net / USB / RS232 communication interface- Support anti-reverse alarm function

ITECH - IT8733B - IT8733B DC E-load 1 channel: 500V / 30A / 500WThis E-Load module fits into one slot of a IT8701 or IT8702 Modular E-Load Main Frame.It cannot be used without a Main FrameIT8700 series programmable DC electronic load adopts removable modules design, with single frame control 8 channels, and 16 channels with extended mainframe extension transient mode up to 25 kHz , which improves your test efficiency, with high resolution and accuracy. Users can freely choose in the 8 load modules according to the number of channels and power requirements, controlled by mainframe control panel, or controlled by IT9000-PV8700 software via built-in LAN / RS232 / USB interface. IT8700, with adjustable slope, list function, automatic test and other functions, automatic test function can be set to work under CC / CV / CR / CP can be used in the application of R&D and production line. IT8700 has self-diagnosis and comprehensive OVP, OCP, OPP, OTP, etc., ensure the operator safety.Key features:- Removable modules for easy system configurability- Dual-channel module can display each channel information simultaneously- Single frame up to max.8 channels, extended frame up to max. 16 channels- Dynamic power distribution function for dual channels- Measurement resolution: 0.1mV/0.01mA- Measure short-circuit peak current value and peak voltage value- Measurement speed for voltage, current up to 50kHz- Adjustable current rising / falling slope- Auto-test function, with automatic judgement whether the test result exceeds the set specification- Simulate various waveforms with load under List mode- Up to 25kHz dynamic mode- Automatic test function can automatically determine whether the test results exceed the set specifications- Simultaneously perform multiple sets of electronic load modules- OVP / OCP / OPP / OTP / anti-reverse protection function- Built-in Ether Net / USB / RS232 communication interface- Support anti-reverse alarm function

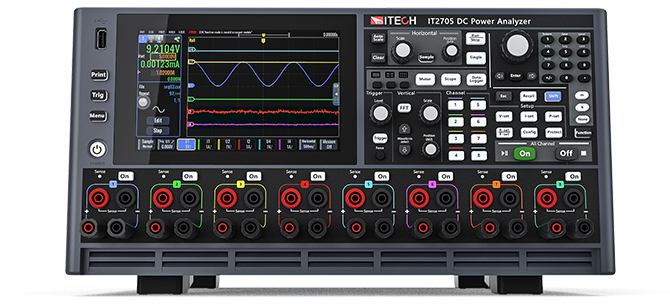

ITECH - IT2705 IT2705 is a 5U 8-slot mainframe, front panel (7" display), front outputs, 200 kHz / 16 scope traces, compatible with IT271XX/IT273XX/IT275XX/IT27814/IT27814E, max. power 1600WIT2705 is a highly integrated modular DC power analyzer designed for battery testing, developed based on extensive research on power sources. It combines DC power, electronic loads and arbitrary waveform generator with an intuitive GUI, supports Oscilloscope Sampling and Data Logging function, allowing for the creation of complex testing without the need for secondary development.The IT2705 supports a variety of functional modules, including DC power modules, bidirectional power supply modules, regenerative loads, and SMU modules, with a power range from 20W to 500W, and can be configured with up to 8 channels. It can be applied for testing IoT devices, chips, automotive electronics, smart wearable devices,etc. It helps engineers deeply analyze dynamic waveforms, instant responses, and key electrical characteristics, improving testing efficiency and accuracy.- IT2705 Modular DC Power Analyzer supports more than 30+ modules (including DC sources, electronic loads, bidirectional power supply, SMU).- Up to 8 modules can be installed (depends on power), separate control and solation between channels- Supports master-slave parallel connection between 2 modules to extend power*1- Graphical operation interface with guided menus, significantly enhancing ease of use- Supports LIST programming, sequence editing, battery testing/emulating, user-defined waveform and correction scanning, etc- Built-in EIS (Electrochemical Impedance Spectroscopy) capability (IT2705 with IT27814 SMU module) - Integrated Ah/Wh statistics, automatically recording regenerative energy- Flexible display modes: Meter / Scope / Data Logger- Minimum data logging interval of 20 μs- Web control supported, allowing full functionality through a standard browser- Standard interfaces: USB / LAN / CAN / Digital I/O, with free control software PV2700 included *1 IT27814/IT27814E can be parallel connection only under CC mode.
