Pico Technology - PicoScope 2204A - PicoScope 2204A, 2 Channels, 10 MHz Bandwith, 100 MS/s Sample Rate
You can use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and protocol decoder out of the box. Mixed signal models also add a 16 channel logic analyzer. A complete electronics lab in one compact, low-cost, USB-powered unit.The PicoScope 2000A models deliver unbeatable value for money and are ideal for education, hobby and field service use. In the lab the low cost allows one scope per person rather than having to share.The PicoScope 2000B models have the added benefits of deep memory (up to 128 MS), higher bandwidth (up to 100 MHz) and faster waveform update rates. PicoScope 2000B models give you the performance to carry out advanced analysis of your waveforms. They are ideal for design, debug and serial decoding.Features:- 2 analog Channels- 10 MHz Bandwidth- 100 MS/s Sample Rate- 8 kS Memory- Includes Waveform Generator- USB-Interface for communication and powerIncludes::- USB 2.0 (USB 3.0/3.1 compatible) cable- 2 passive probes switchable x1/x10- Quick start guide
PICO TECHNOLOGY -
PicoScope 3415E - PicoScope 3415E, 4 channel, 100 MHz, 8 / 10-bit oscilloscope with probesUp to 500 MHz, 5 GS/s, USB powered PC oscilloscopes and MSOs Where power and performance meet portability- 100, 200, 350 or 500 MHz with - 5 GS/s
Up to 10-bit resolution (14 bits using enhanced resolution)- 2 GS ultra-deep capture memory- 16 digital channels (on MSO models)- Function/arbitrary waveform generator included- Compact, portable and USB powered- Over 40 serial protocol decoders included as standard- Segmented memory, persistence and fast waveform updates- Advanced math, measurements, masks and digital triggering- PicoScope 7 for Windows®, macOS® & Linux® with free updates- Support for LabView®, MATLAB® and writing your own code- 5-year warranty and free technical support
PICO TECHNOLOGY -

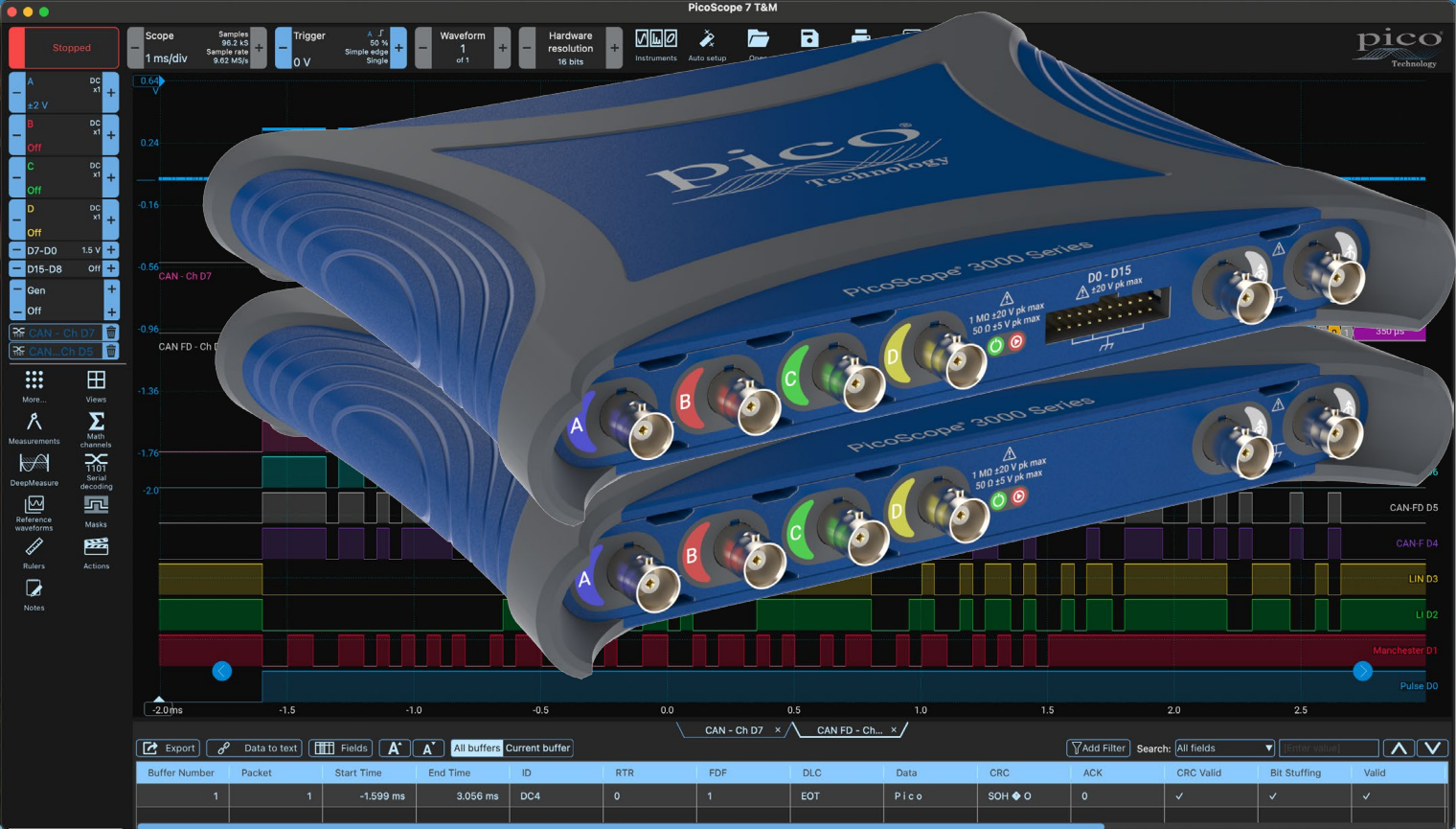

PicoScope 3417E MSO - PicoScope 3417E MSO, 4 channel, 350 MHz, 8 / 10-bit oscilloscope with probesUp to 500 MHz, 5 GS/s, USB powered PC oscilloscopes and MSOs Where power and performance meet portability- 100, 200, 350 or 500 MHz with - 5 GS/s
Up to 10-bit resolution (14 bits using enhanced resolution)- 2 GS ultra-deep capture memory- 16 digital channels (on MSO models)- Function/arbitrary waveform generator included- Compact, portable and USB powered- Over 40 serial protocol decoders included as standard- Segmented memory, persistence and fast waveform updates- Advanced math, measurements, masks and digital triggering- PicoScope 7 for Windows®, macOS® & Linux® with free updates- Support for LabView®, MATLAB® and writing your own code- 5-year warranty and free technical support
PICO -

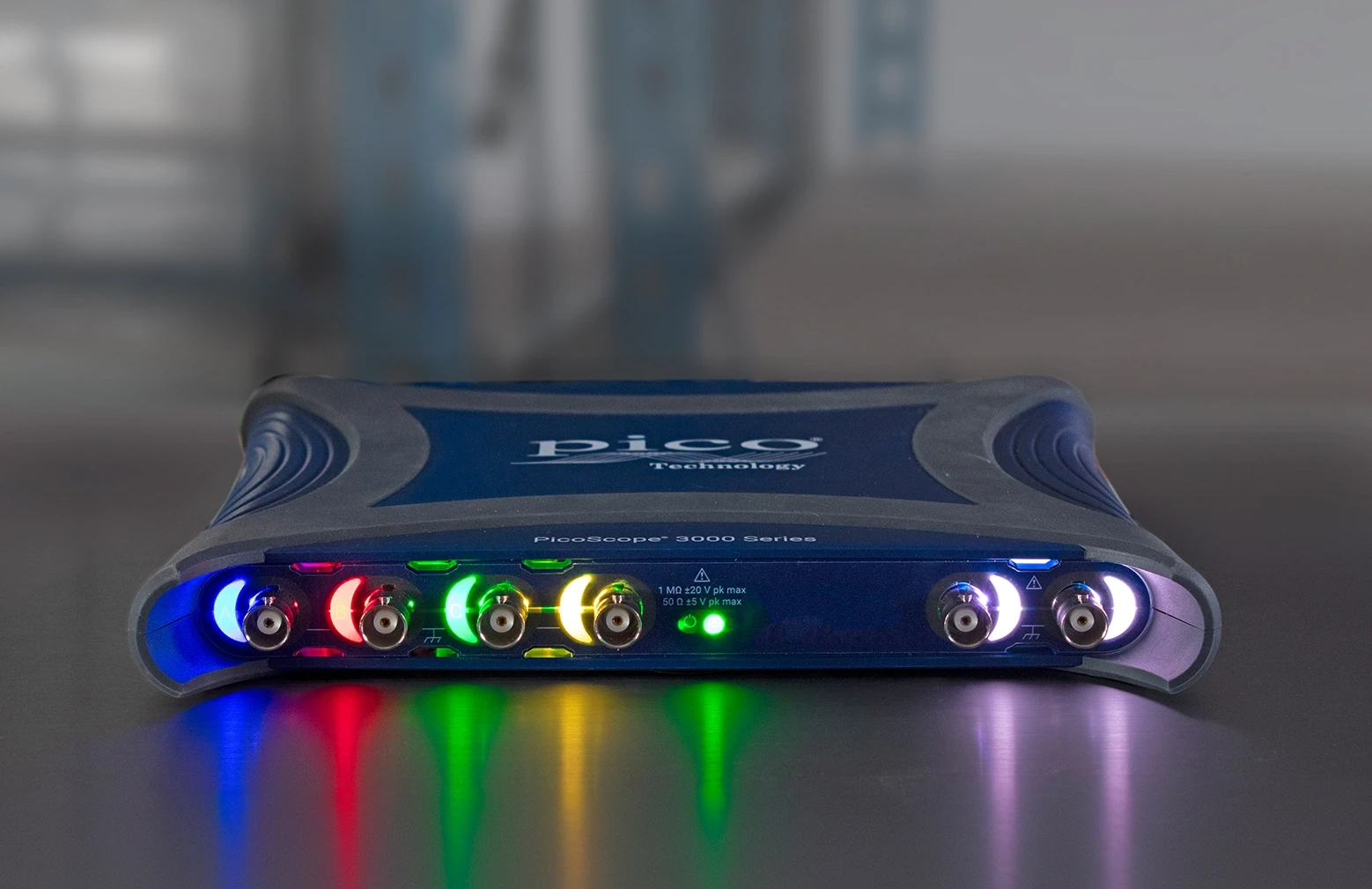

PicoScope 3418E - PicoScope 3418E, Oscilloscope 4 Channels, 500 MHz, 8 Bit, max. 5 GS/s Where power and performance meet portability
Once again, Pico is redefining PC-based oscilloscopes with up to 500 MHz bandwidth and 5 GS/s in a compact, portable USB-powered package. The PicoScope 3000E Series is a range of USB-powered PC oscilloscopes which are small, light, portable and provide high-performance specifications ideal for engineers working on advanced electronics and diverse embedded system technologies, either in the laboratory or on the move. Supported by the advanced PicoScope 7 Test and Measurement software, the PicoScope 3000E Series enables the rapid cost-effective debug and performance validation of complex analog and power electronic designs. It also offers an ideal package for many other applications including embedded systems design, research, test, education, service and repair.
High bandwidth, high sampling rate, deep memory
With compact size, low cost and input bandwidths up to 500 MHz, there is no compromise on performance. This bandwidth is matched by a real-time sampling rate of up to 5 GS/s, enabling detailed display of high frequency signal detail.
Many other oscilloscopes have high maximum sampling rates, but without deep memory they cannot sustain these rates on long timebases. The PicoScope 3000E Series offers up to 2 GS of capture memory, enabling the 500 MHz PicoScope 3418E to sample at 5 GS/s all the way down to 20 ms/div (200 ms total capture time). The PicoScope 3000E Series includes a range of powerful tools to make the most of this huge waveform memory. Easy-to-use zoom functions let you zoom and reposition the display by simply dragging with the mouse or touchscreen, while hardware acceleration ensures you see every glitch in huge waveforms regardless of the zoom level.Memory segmentation lets you capture thousands of waveforms in quick succession and view them in the waveform buffer navigator, filtering them using criteria such as mask limit testing or measurement limits to drill down to the waveforms you need to see. More advanced tools such as serial decoding and DeepMeasureTM work to analyze data packets or events across all waveform buffers in the deep memory, making the PicoScope 3000E Series some of the most capable oscilloscopes on the market. FEATURES:- 350 MHz or 500 MHz with 5 GS/s USB powered PC oscilloscopes- 10-bit resolution (14 bits using enhanced resolution)- 2 GS ultra-deep capture memory- Function/arbitrary waveform generator included- Compact, portable and USB powered- 40 serial protocol decoders included as standard- Segmented memory, persistence and fast waveform updates- Advanced math, measurements, masks and digital triggering- PicoScope 7 for Windows ® , Mac ® & Linux® with free updates- Support for LabView ® , MATLAB® and writing your own code- 1 Probe per Channel included in each Kit
- 5-year warranty and free technical support
PICO TECHNOLOGY -
PicoScope 3418E - PicoScope 3418E, 4 channel, 500 MHz, 8 / 10-bit oscilloscope with probesUp to 500 MHz, 5 GS/s, USB powered PC oscilloscopes and MSOs Where power and performance meet portability- 100, 200, 350 or 500 MHz with - 5 GS/s
Up to 10-bit resolution (14 bits using enhanced resolution)- 2 GS ultra-deep capture memory- 16 digital channels (on MSO models)- Function/arbitrary waveform generator included- Compact, portable and USB powered- Over 40 serial protocol decoders included as standard- Segmented memory, persistence and fast waveform updates- Advanced math, measurements, masks and digital triggering- PicoScope 7 for Windows®, macOS® & Linux® with free updates- Support for LabView®, MATLAB® and writing your own code- 5-year warranty and free technical support
PICO TECHNOLOGY -
PicoScope 3418E MSO - PicoScope 3418E MSO, 4 channel, 500 MHz, 8 / 10-bit oscilloscope with probesUp to 500 MHz, 5 GS/s, USB powered PC oscilloscopes and MSOs Where power and performance meet portability- 100, 200, 350 or 500 MHz with - 5 GS/s
Up to 10-bit resolution (14 bits using enhanced resolution)- 2 GS ultra-deep capture memory- 16 digital channels (on MSO models)- Function/arbitrary waveform generator included- Compact, portable and USB powered- Over 40 serial protocol decoders included as standard- Segmented memory, persistence and fast waveform updates- Advanced math, measurements, masks and digital triggering- PicoScope 7 for Windows®, macOS® & Linux® with free updates- Support for LabView®, MATLAB® and writing your own code- 5-year warranty and free technical support
PICO TECHNOLOGY -

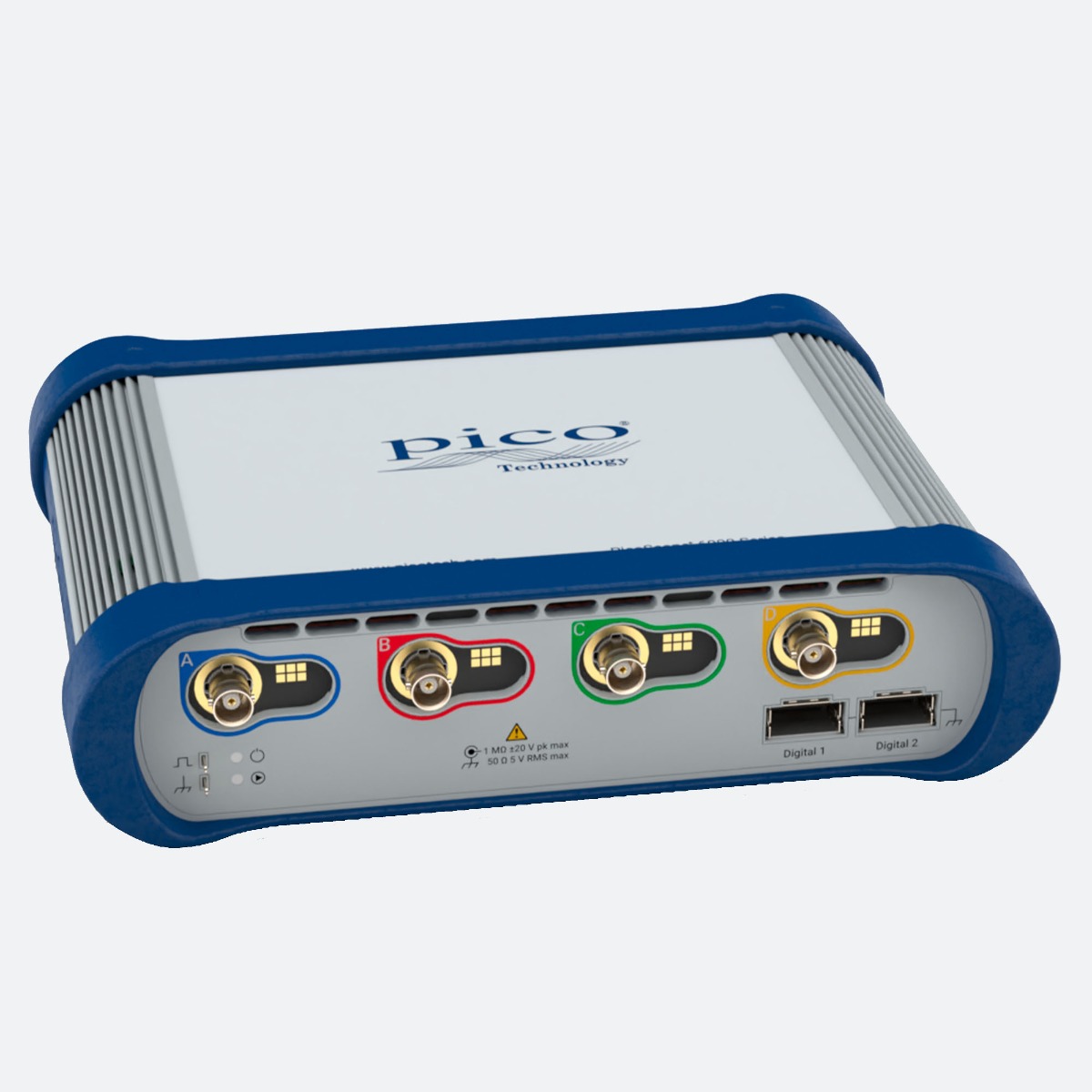

PicoScope 6424E - PicoScope 6424E,
FlexRes
Oscillosope 500 MHz, 4 ChannelsThe PicoScope 6000E Series fixed-resolution and FlexRes oscilloscopes provide 8 to 12 bits of vertical resolution, with up to 500 MHz bandwidth and 5 GS/s sampling rate.Models with four or eight analog channels have the timing and amplitude resolution you need to reveal signal integrity issues such as timing errors, glitches, dropouts, crosstalk and metastability issues.Key features- 8-bit to 12-bit FlexRes ADC- A choice of 4 or 8 analog channels- Add 8 or 16 digital MSO channels- Up to 500 MHz bandwidth- 200 ms capture time at 5 GS/s- Up to 4 GS capture memory- 50 MHz 200 MS/s 14-bit AWG- 300 000 waveforms per second update rate- PicoScope 6 software and PicoSDK included- 21 serial protocol decoder / analyzers included- Mask limit testing and user-definable alarms- High-resolution time-stamping of waveforms- Over ten million DeepMeasure™ results per acquisition- Advanced triggers: edge, window, pulse width, window pulse width, level dropout, window dropout, interval, runt and logicPicoScope 6000E Series oscilloscope pack contents:- PicoScope 6000E Series PC oscilloscope- P2056 500 MHz 10:1 passive probes (4) (supplied with the PicoScope 6824E, 6424E, 6804E and 6404E)
- P2036 300 MHz 10:1 passive probes (4) (supplied with the PicoScope 6403E)- Quick start guide- 12 V power supply, universal input- Localized IEC mains lead- USB cable, 1.8 m- Storage / carry case
PICO TECHNOLOGY -
PicoScope 6824E - PicoScope 6824E, 500 MHz, 8 Channels, FlexRes 8 - 12 bitsA smarter scope for faster debug. The PicoScope 6000E Series fixed-resolution and FlexRes oscilloscopes provide 8 to 12 bits of vertical resolution, 1 GHz bandwidth and 5 GS/s sampling rate, and now includes the four-channel PicoScope 6428E-D which offers 3 GHz bandwidth and 10 GS/s maximum sampling rate.Models with four or eight analog channels have the timing and amplitude resolution you need to reveal critical signal integrity issues such as timing errors, glitches, dropouts, crosstalk and metastability issues.FEATURES: Up to 3 GHz bandwidth 8-bit to 12-bit FlexRes® ADC A choice of 4 (up to 3 GHz) or 8 (up to 500 MHz) analog channels Supports up to 16 digital MSO channels 200 ms capture time at 5 GS/s Up to 10 GS/s with the PicoScope 6428E-D Up to 4 GS capture memory 50 MHz 200 MS/s 14-bit AWG 300 000 waveforms per second update rate PicoScope, PicoLog® and PicoSDK® software included 38 serial protocol decoder/analyzers included Mask limit testing and user-definable actions High-resolution time-stamping of waveforms Over ten million DeepMeasure™ results per acquisition Advanced triggers: edge, window, pulse width, window pulse width, level dropout, window dropout, interval, runt, rise/fall time and logic
