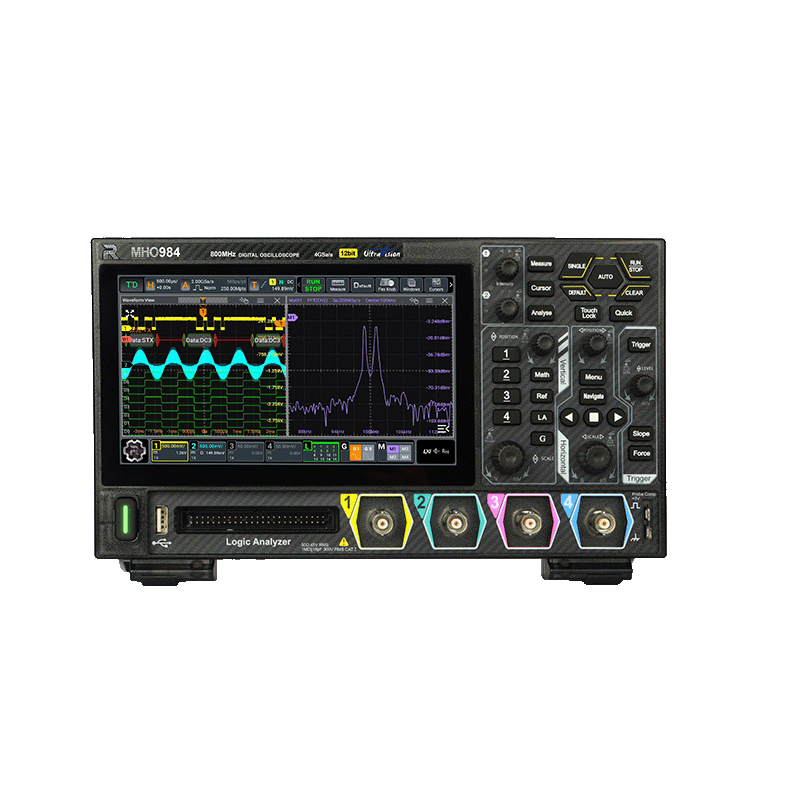

RIGOL - MHO984MHO984 is a 800 MHz Mixed Signal Oszilloscope with 4 analog and 16 digital ChannelsFeatures:- 12-bit resolution- 800 MHz analog bandwidth, 4 analog channels- Standard 16 digital channels, 200 MHz PLA2216 logic analyzer probe (optional)- Real-time sample rate: up to 4 GSa/s- Max. memory depth of 500 Mpts (optional)- Vertical sensitivity 200 μV/div to 10 V/div- Max. waveform capture rate: 1,000,000 wfms/s- Digital phosphor display with real-time 256-level intensity grading- Optional 2-channel, 50 MHz/100 MHz Function/Arbitrary Waveform Generator(Bode plot supported)- Supports histogram,digital signal analysis, etc.- Supports waveform search and navigation function, capable of delbugging the signal anomalies faster- 7"(1024x600)HD touch screen- Flex knob brings user-friendly experience- Standard USB2.0 Device & Host, LAN (100M), and HDMI interfaces- Novel and delicate industrial design, easy to operate- Supports online upgrade of software version
RIGOL - MSO2102A - Oscilloscope, 100 MHz, 50 Ohm in, 2 Ch, 16 dig Ch, 2 GSa/s, Memory up to 56 Mpts, Up to 52,000 wfms/sOscilloscope, 100 MHz, standard 50 Ohm input, 2 analog channel, 16 digital channel, 2 GSa/s, Memory depth up to 56 Mpts, Up to 52,000 wfms/s, Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard), UltraVision, USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional), 8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display. All MSO/DS2000-BND options are preinstalled!
RIGOL - MSO2102A-S - Oscilloscope, 100 MHz, 50 Ohm in, 2 Ch, 16 dig Ch, 2 GSa/s, Memory up to 56 Mpts, Up to 52,000 wfms/sOscilloscope, 100 MHz, standard 50 Ohm input, 2 analog channel, 16 digital channel, 2 GSa/s, Memory depth up to 56 Mpts, Up to 52,000 wfms/s, Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard), UltraVision, USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional), 8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display. Built-in 25 MHz AWG. All MSO/DS2000-BND options are preinstalled!
RIGOL - MSO2202A - Oscilloscope, 200 MHz, 50 Ohm in, 2 Ch, 16 dig Ch, 2 GSa/s, Memory up to 56 Mpts, Up to 52,000 wfms/s to 56 Mpts, Up to 52,000 wfms/s, Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard), UltraVision, USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional), 8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display. All MSO/DS2000-BND options are preinstalled!
RIGOL - MSO2202A-S - Oscilloscope, 200 MHz, 50 Ohm in, 2 Ch, 16 dig Ch, 2 GSa/s, Memory up to 56 Mpts, Up to 52,000 wfms/sOscilloscope, 200 MHz, standard 50 Ohm input, 2 analog channel, 16 digital channel, 2 GSa/s, Memory depth up to 56 Mpts, Up to 52,000 wfms/s, Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard), UltraVision, USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional), 8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display. Built-in 25 MHz AWG. All MSO/DS2000-BND options are preinstalled!
RIGOL - MSO2302A - Oscilloscope, 300 MHz, 50 Ohm in, 2 Ch, 16 dig Ch, 2 GSa/s, Memory up to 56 Mpts, Up to 52,000 wfms/sOscilloscope, 300 MHz, standard 50 Ohm input, 2 analog channel, 16 digital channel, 2 GSa/s, Memory depth up to 56 Mpts, Up to 52,000 wfms/s, Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard), UltraVision, USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional), 8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display. All MSO/DS2000-BND options are preinstalled!
RIGOL - MSO2302A-S - Oscilloscope, 300 MHz, 50 Ohm in, 2 Ch, 16 dig Ch, 2 GSa/s, Memory up to 56 Mpts, Up to 52,000 wfms/sOscilloscope, 300 MHz, standard 50 Ohm input, 2 analog channel, 16 digital channel, 2 GSa/s, Memory depth up to 56 Mpts, Up to 52,000 wfms/s, Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard), UltraVision, USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional), 8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display. Built-in 25 MHz AWG. All MSO/DS2000-BND options are preinstalled!
RIGOL - MSO5000-2RL - Optional 200 Mpts memory for MSO5000-series. Activation via software code. MSO5000 Memory expansion: MSO5000-2RL Optional 200 Mpts memory option for the MSO5000 series devices. Simple activation via software code (memory is already build-in). Please specify the serial number of your oscilloscope.
RIGOL - MSO5000-AERO - MIL-STD 1553 Serial Triggering and Analysis MIL-STD 1553 Serial Triggering and Analysis (Already included in MSO5000-BND. Please contact customer service info@rigolshop.eu before purchasing.)
RIGOL - MSO5000-AUDIO - Audio Serial Triggering and Analysis(I2S) Audio Serial Triggering and Analysis(I2S) (Already included in MSO5000-BND. Please contact customer service info@rigolshop.eu before purchasing.)
RIGOL - MSO5000-AUTO - Automotive Serial Triggering and Analysis(CAN/LIN) Automotive Serial Triggering and Analysis(CAN/LIN) (Already included in MSO5000-BND. Please contact customer service info@rigolshop.eu before purchasing.)
RIGOL - MSO5000-BW0T1 - Bandwidth Upgrade from 70 MHz to 100 MHz for models MSO5000 series. Bandwidth Upgrade from 70 MHz to 100 MHz for models MSO5000 series. For this upgrade the latest firmware is required.
RIGOL - MSO5000-BW0T2 - Bandwidth Upgrade from 70 MHz to 200 MHz for models MSO5000 series. Bandwidth Upgrade from 70 MHz to 200 MHz for models MSO5000 series. For this upgrade the latest firmware is required.
RIGOL - MSO5000-BW0T3 - Bandwidth Upgrade from 70 MHz to 350 MHz for models MSO5000 series. Bandwidth Upgrade from 70 MHz to 350 MHz for models MSO5000 series. For this upgrade the latest firmware is required.
RIGOL - MSO5000-BW1T2 - Bandwidth Upgrade from 100 MHz to 200 MHz for models MSO5000 series. Bandwidth Upgrade from 100 MHz to 200 MHz for models MSO5000 series. For this upgrade the latest firmware is required.
RIGOL - MSO5000-BW1T3 - Bandwidth Upgrade from 100 MHz to 350 MHz for models MSO5000 series. Bandwidth Upgrade from 100 MHz to 350 MHz for models MSO5000 series. For this upgrade the latest firmware is required.
RIGOL - MSO5000-BW2T3 - Bandwidth Upgrade from 200 MHz to 350 MHz for models MSO5000 series. Bandwidth Upgrade from 200 MHz to 350 MHz for models MSO5000 series. For this upgrade the latest firmware is required.

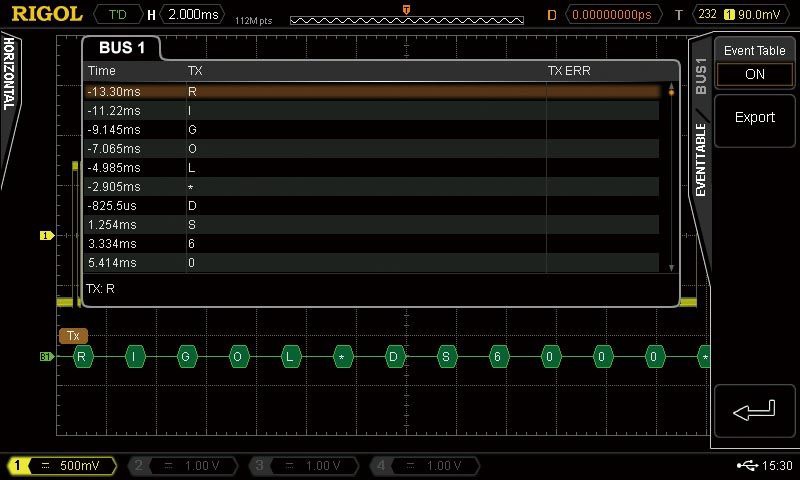

RIGOL - MSO5000-COMP - Computer Serial Triggering and Analysis(RS232/UART) Computer Serial Triggering and Analysis(RS232/UART), (Already included in MSO5000-BND. Please contact us before purchasing.)
RIGOL - MSO5000-FLEX - FlexRay serial bus trigger and analysis (FlexRay) FlexRay serial bus trigger and analysis (FlexRay), (Already included in MSO5000-BND. Please contact us before purchasing.)
