DHO1204
CHF 1,234.00
Product information "DHO1204"

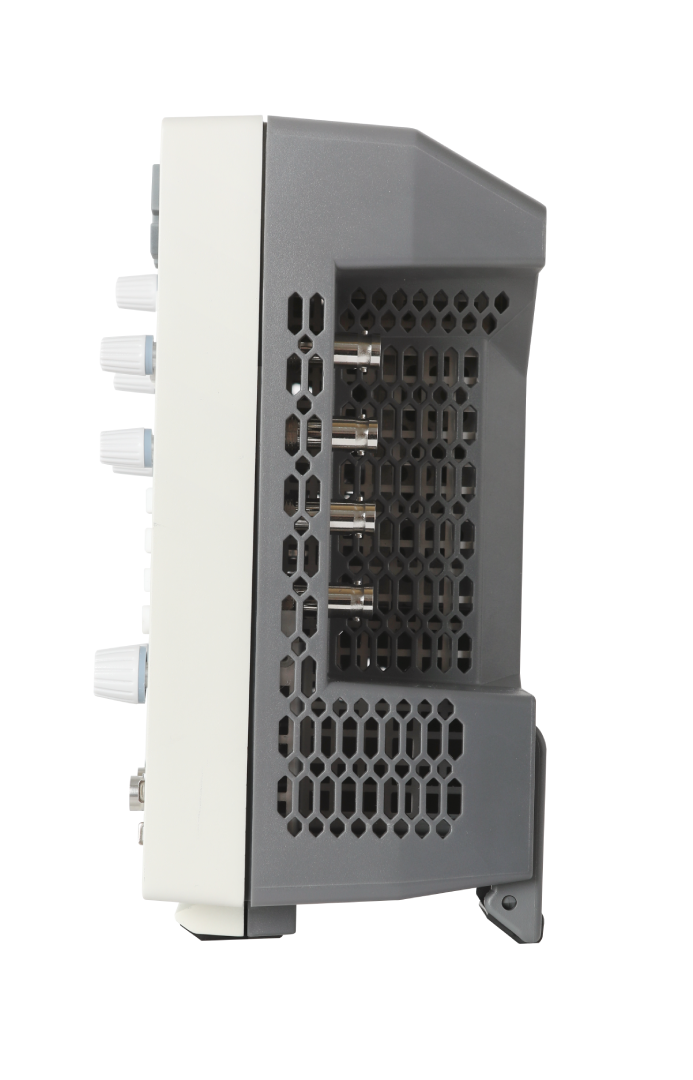

RIGOL - DHO1204
Digital Oscilloscope with 200 MHz bandwidth, 12-bit resolution, and 4 channels. Features a 10.1" WXGA touchscreen for intuitive operation.
Sample rates up to 2 GS/s (1 channel), 1 GS/s (2 channels), and 500 MS/s (4 channels), with a memory depth of 50 M / 25 M / 12.5 M points (1/2/4 channels).
Supports CAN/LIN, RS232/UART, and I²C/SPI trigger and analysis functions, with a signal capture rate of up to 1,500,000 signals per second. Hardware real-time recorder allows up to 500,000 recordings (1 channel).
Analysis features include 41 automatic measurements, advanced FFT up to 1 M points, four user-definable math functions, as well as zoom analysis, memory play, playback, zone trigger, and pass/fail testing.
Interfaces:
2 × USB 3.0 Host, 1 × USB 3.0 Device, Ethernet, HDMI.
| Bandwidth: | 200 MHz |
|---|---|
| Analog Channels: | 4 |
| ADC Vertical Resolution [Bit]: | 12 Bit |
| Sample Rate: | 2 GS/s |
| Memory: | 50 Mpts |
| Digital Channels: | 0 |
