DNA5262

26.5 GHz Vector Network Analyzer – Ultimate Microwave Performance

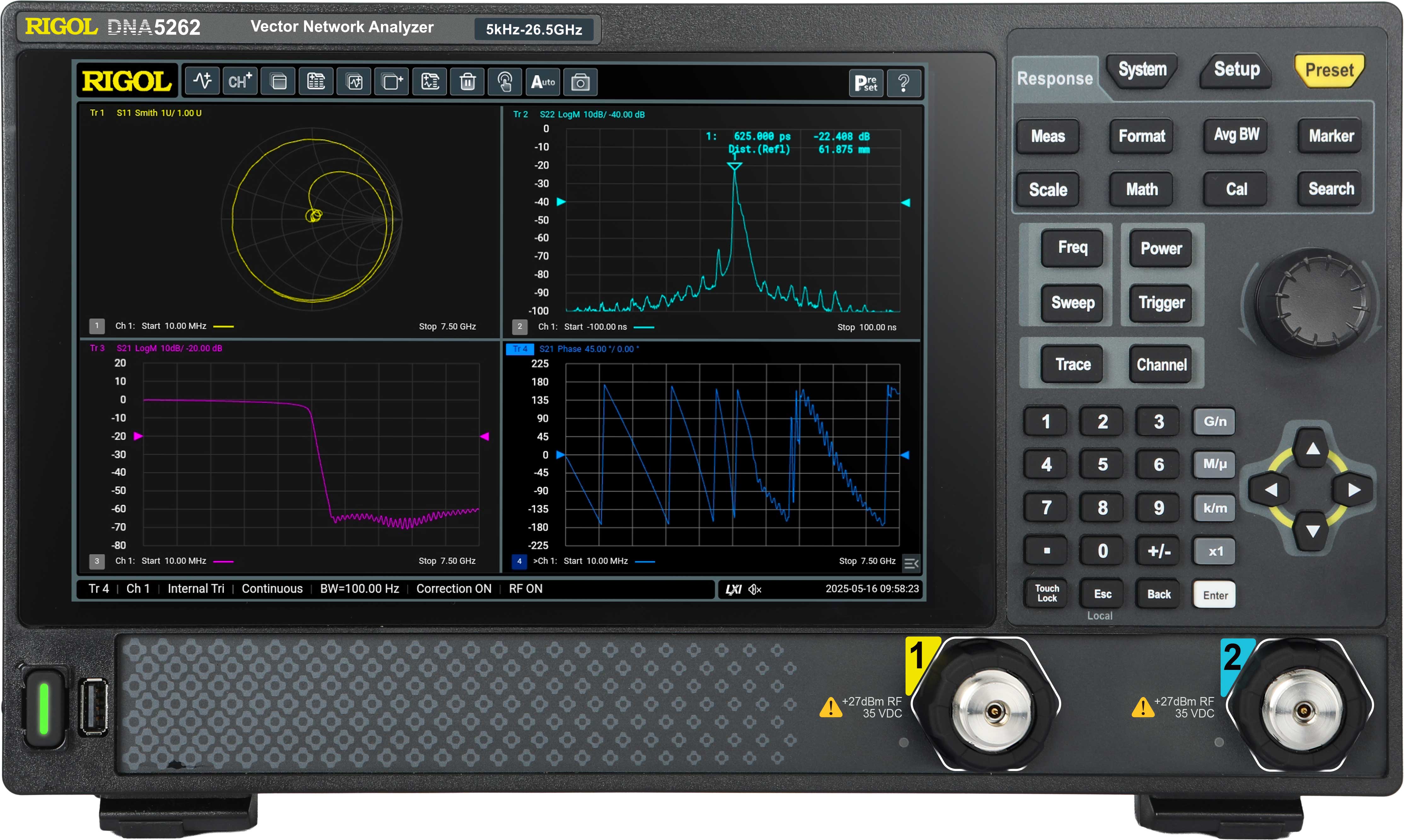

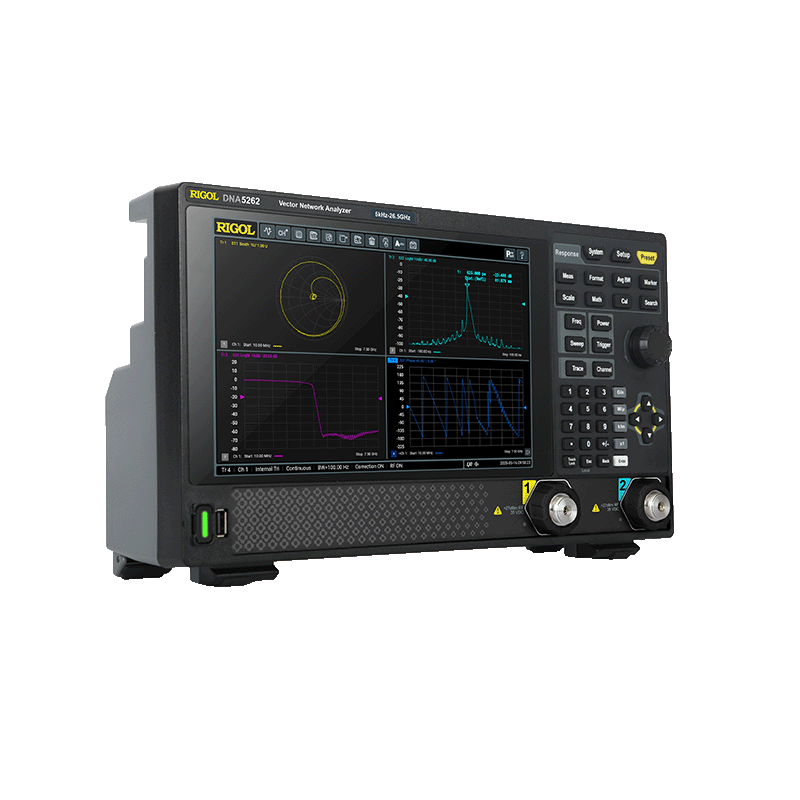

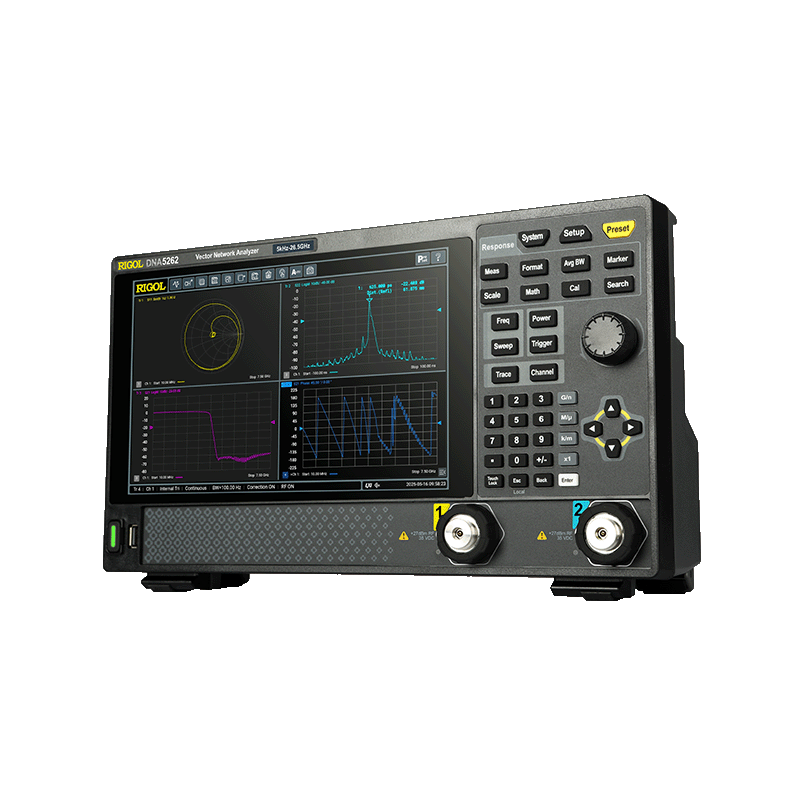

The Rigol DNA5262 is a high-performance 2-port Vector Network Analyzer (VNA) designed for advanced RF and microwave applications. With a frequency range from 9 kHz to 26.5 GHz, it delivers precise and reliable characterization of high-frequency components, microwave modules, antennas, filters, amplifiers, and radar systems.

Engineered for R&D laboratories, validation testing, and production environments, the DNA5262 combines wide bandwidth, excellent dynamic range, and powerful analysis tools in a compact and portable form factor.

Key Specifications

• Frequency Range: 9 kHz – 26.5 GHz

• Number of Ports: 2

• Frequency Resolution: 1 Hz

• Maximum Output Power: 10 dBm

• Dynamic Range: up to 130 dB (typ.)

• Trace Noise: 0.005 dB

• IF Bandwidth: 1 Hz – 10 MHz

The extended frequency coverage up to 26.5 GHz makes the DNA5262 ideal for microwave communication systems, satellite technology, radar development, automotive radar testing, and high-speed RF applications.

Advanced Measurement & Analysis Capabilities

The DNA5262 integrates comprehensive RF and microwave analysis functions:

• Full S-parameter measurements (S11, S21, S12, S22)

• Impedance and Smith chart analysis

• VSWR measurement

• Time Domain Analysis (TDA)

• Fixture embedding / de-embedding

• Antenna and cable testing

• Marker, limit, and trace math functions

Delivers highly accurate, stable, and repeatable measurement results across demanding high-frequency test scenarios.

Flexible Calibration Support

Compatible with both mechanical calibration kits and electronic calibration kits (ECal). Supported calibration types include:

• SOLT

• Response Short

• Response Open

• OSL

• Enhanced Response 1–2

• Response Through

Ensures high-precision calibration and reliable measurement accuracy throughout the entire 26.5 GHz range.

Modern Interface & System Integration

• 10.1" HD touchscreen (1280 × 800 resolution)

• Touchscreen and physical key operation

• External keyboard and mouse support

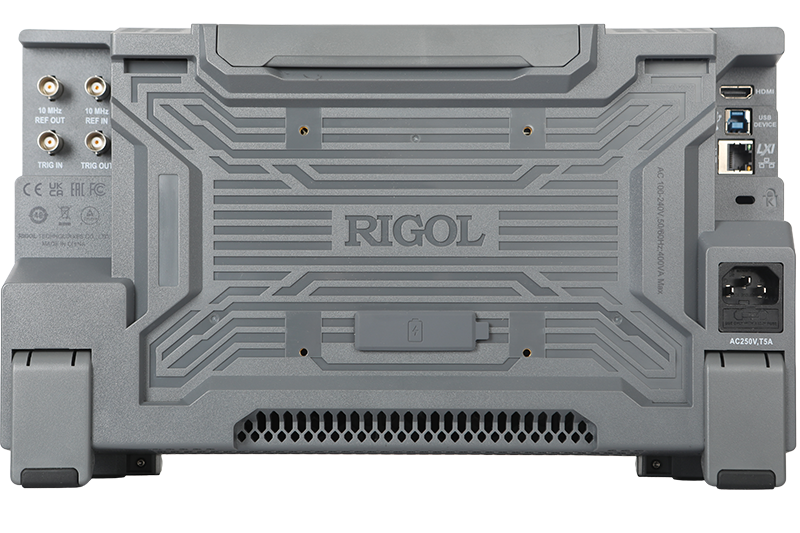

• LAN, USB Device, USB Host, HDMI interfaces

• Standard SCPI command sets

• Web Control for remote operation

Designed for seamless integration into automated production systems while remaining intuitive for manual laboratory use.

Compact High-Frequency Solution

Despite its 26.5 GHz microwave capability, the DNA5262 maintains a compact benchtop footprint and lightweight design, making it suitable for laboratory, validation, and mobile RF service applications.
