GW INSTEK - GTL-110 - BNC Cable, BNC (P/M) - BNC (P/M), 1000mmBNC Cable, BNC (P/M) - BNC (P/M), 1000mm. For use with GW Instek oscilloscopes of MDO-2000E series and following GW Instek Functional Generators: AFG-Series, SFG-Series, GFG-Series, GFC-Series

GW INSTEK - GTL-232 - RS-232C Cable, 9-pin, F-F Type, null modem, 2000mmFor use with following instruments by GW Instek:- Oscilloscopes - GDS-3000 Series, GDS-2000A Series - Functional Generators - AFG-3081/3051, GFG-3015- LCR meters - LCR -6000 series

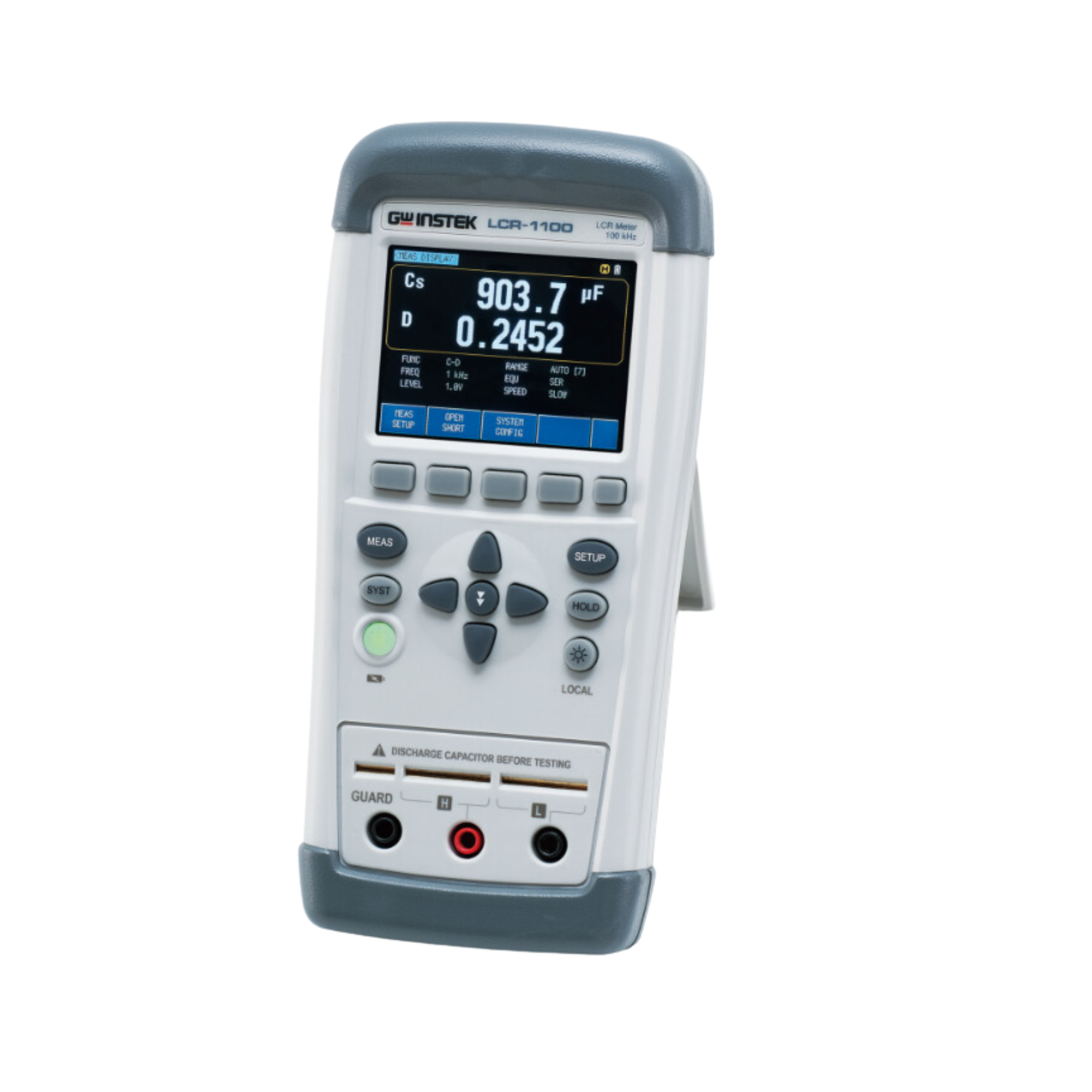

GW INSTEK - LCR-1100 - Handheld LCR Meter 100kHz GW Instek launches the new LCR-1000 series, which is a handheld LCR meter with the automatic real-time test function. The series adopts TFT-LCD and provides a basic accuracy of 0.2%. Users can choose to use buttons or touch screen operations. The series, with high measurement accuracy and usability, is suitable for precision tests, including maintenance test, component production, schools/research institutes, and even quality test.The LCR-1000 series comprises 2 models. The LCR-1100 provides a test frequency up to 100 kHz, and the LCR-1010 provides a test frequency up to 10 kHz. The series provides selectable test voltages (0.3/0.7/1.0Vrms) and equivalent circuits (series/parallel) to automatically measure capacitance, inductance, resistance, reactance, impedance, quality factor, loss factor, phase and DC resistance.The LCR-1000 series, with 50,000 display counts for both main and auxiliary parameters and a basic accuracy of 0.2%, supports 2-wire or 5-wire measurement. Furthermore, the series also provides the comparison function and data retention function to meet various test and measurement requirements for different types of components. The entire series is equipped with USB-HID and USB-VCOM interfaces. A simple and practical free PC software is provided and remote control commands (compatible with SCPI) are available for users to write their own personal software to meet the needs of data acquisition.Features:- 2.8” TFT Touch LCD- 50,000 Counts Resolution on Primary and Secondary Display- 0.2% Basic Accuracy- Six or Eight Selectable Test Frequencies Depends on Model- 15 Kinds Measurement Combinations Available- Test Level Selectable : AC 0.3V/0.7V/1Vrms and DC +/- 1V- Selectable measurement Speed : Fast 10 Times/s, Slow 2.5 Times/s- Auto LCR Mode for Automatic Component Type Identification and measurement- Data Hold- USB (Virtual COM) Interface for Remote Communication- Software for Datalogging is Available

GW Instek - LCR-6200 - LCR-6200 is a LCR Meter up to 200kHzThe LCR-6000 series, a compact LCR meter with diversified and abundant features, is an excellent tool for various application stages of passive components, including R&D, engineering testing, incoming inspection, etc., or the production and sorting of passive components.High-precision LCR-6000 meter provides test frequency from 2kHz/20kHz/100kHz/200kHz/300kHz (the highest), the basic accuracy is up to 0.05%, and there are 5 models in total.​ Features- 3.5” color LCD- 5 models (10Hz~2kHz/20kHz/100kHz/200kHz/300kHz)- Consecutive test frequency- Basic accuracy : 0.05%- Measuring speed up to 25ms (max.)- Full frequency range or spot OPEN/SHORT- 16 major/secondary parameter measurement combinations and two additional monitoring parameters(maximum four different parameters can be shown simultaneously)- DCR measurement and internal D.C. bias voltage (±2.5V)- PASS/FAIL judgment- Auto Level Control (ALC) function- BIN function provides 9BIN and 1AUX, totally 10 BIN- 10 steps listed tests to select different frequency, voltage and current criteria- Standard interface : RS-232C, Handler and USB Host / Device- Compact size, ideal for automatic equipment (2U,1/2 RACK)

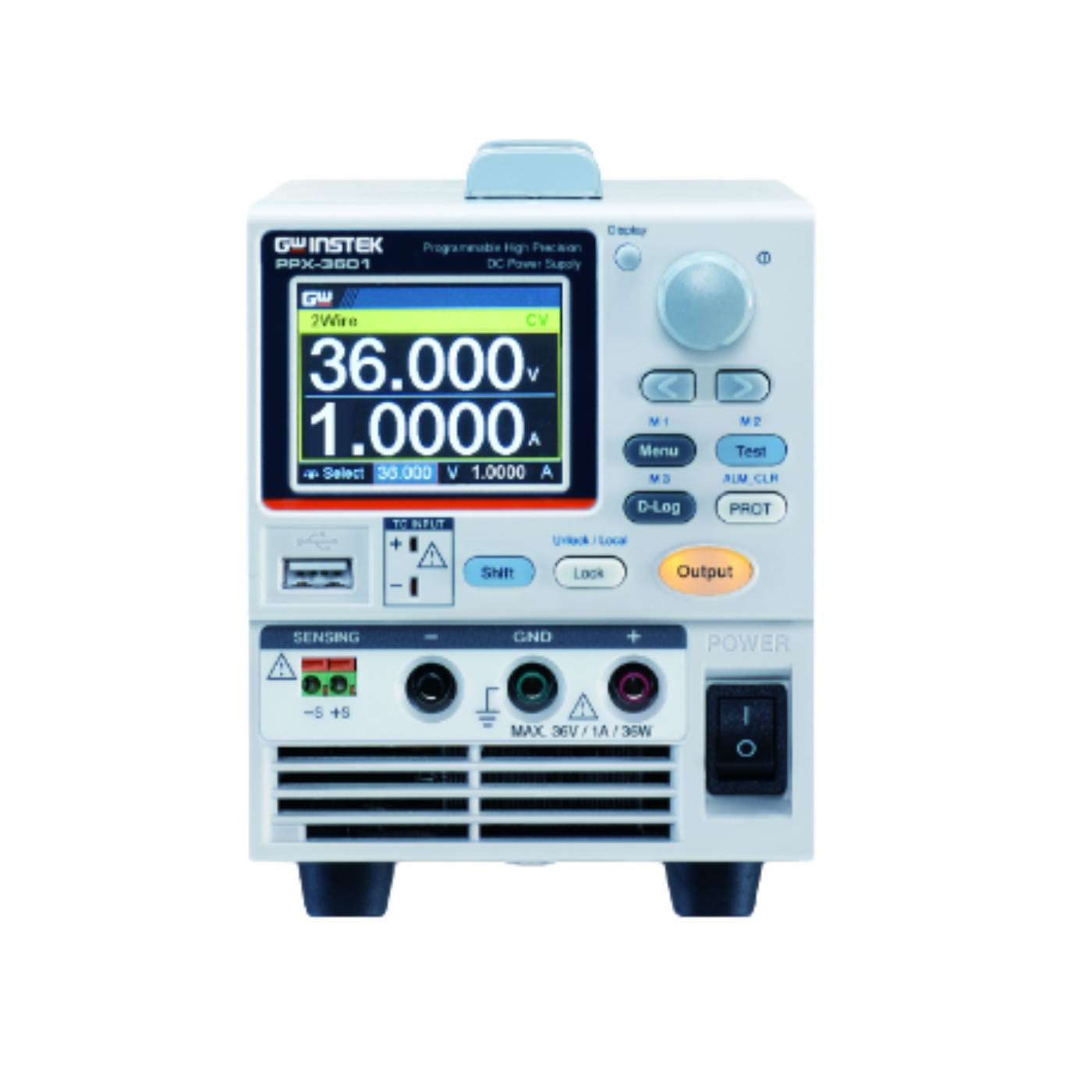

GW INSTEK - PPX-3601 - 36V, 1A, 36W Programmable High Precision Power SupplyThe PPX series programmable high-precision DC power supplies include six models; PPX- 1005(10V/5A/50W), PPX-2002(20V/2A/40W), PPX-2005(20V/5A/100W) ), PPX- 3601(36V/1A/36W), PPX-3603(36V/3A/108W), and PPX-10H01(100V/1A/100W). This series has the output low noise (0.35mVrms) and fast transient response characteristics (<50μs) of conventional linear power supplies. It also provides constant voltage and constant current priority output modes, and the series can also set the voltage and current rising/falling slew rates separately, and the delay time for the output to be turned on and off.The PPX series has four current levels and two voltage levels to provide users with high-precision measurements, and via the Data Logger function, the measurement records can be stored in the USB for long-term measurement and recording of IoT devices, portable devices, wearable devices, and sensor components.Features:- CV, CC priority start function.- Four levels of current measurement resolution (min. 0.1μA) / two levels of voltage measurement resolution (min. 0.1mV)- Power output ON/OFF delay function- Adjustable voltage and current slew rate- Bleeder circuit control- Delayed over-current protection(OCP Delay)- Sequential power output function- Remote Sensing function- Data Logger- 10 sets of memory function- Over voltage protection, under voltage limit, over current protection, over temperature protection, AC alarm function- Supports K Type thermocouple temperature measurement- Interfaces: USB, LAN, RS-232, RS-485, Analog Control; Opt: GPIB - Size: 3U high, in line with 1/4 Rack

GW INSTEK - PSP-2010The PSP-Series is single output 200W, programmable switching DC power supplies. OVL, OCL, OTP and OPL protect the PSP-Series and its loads from unexpected conditions. The PSP-Series has a large LCD panel to display output and parameter simultaneously and a key lock feature to prevent changing the settings. The PSP-Series is suitable for generic bench-top applications in laboratories and educational institutions.Key features:- LCD display- Output on/off control- 3-step fan speed control- Voltage/current/power settings- Key lock to avoid operation error- OVL / OCL /OPL /OTP protection- Normal, +% & -% output operation key- High efficiency and high power density- Standard interface：RS-232C- Optional European type jack terminal

GW INSTEK - PSW 160-14.4 - 160V, 14.4A, 720W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN,USB,Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 160-21.6 - 160V, 21.6, 1080W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN,USB,Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 160-7.2 - 160V, 7.2A, 360W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN, USB, Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 250-13.5 - 250V, 13.5A, 1080W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN, USB, Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 250-4.5  - 250V, 4.5A, 360W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN, USB, Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 250-9 - 250V, 9A, 720W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN,USB,Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 30-108 - 30V, 108A, 1080W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN, USB, Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 30-36 - 30V, 36A, 360W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN,USB,Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 30-72 - 30V, 72A, 720W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN, USB, Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

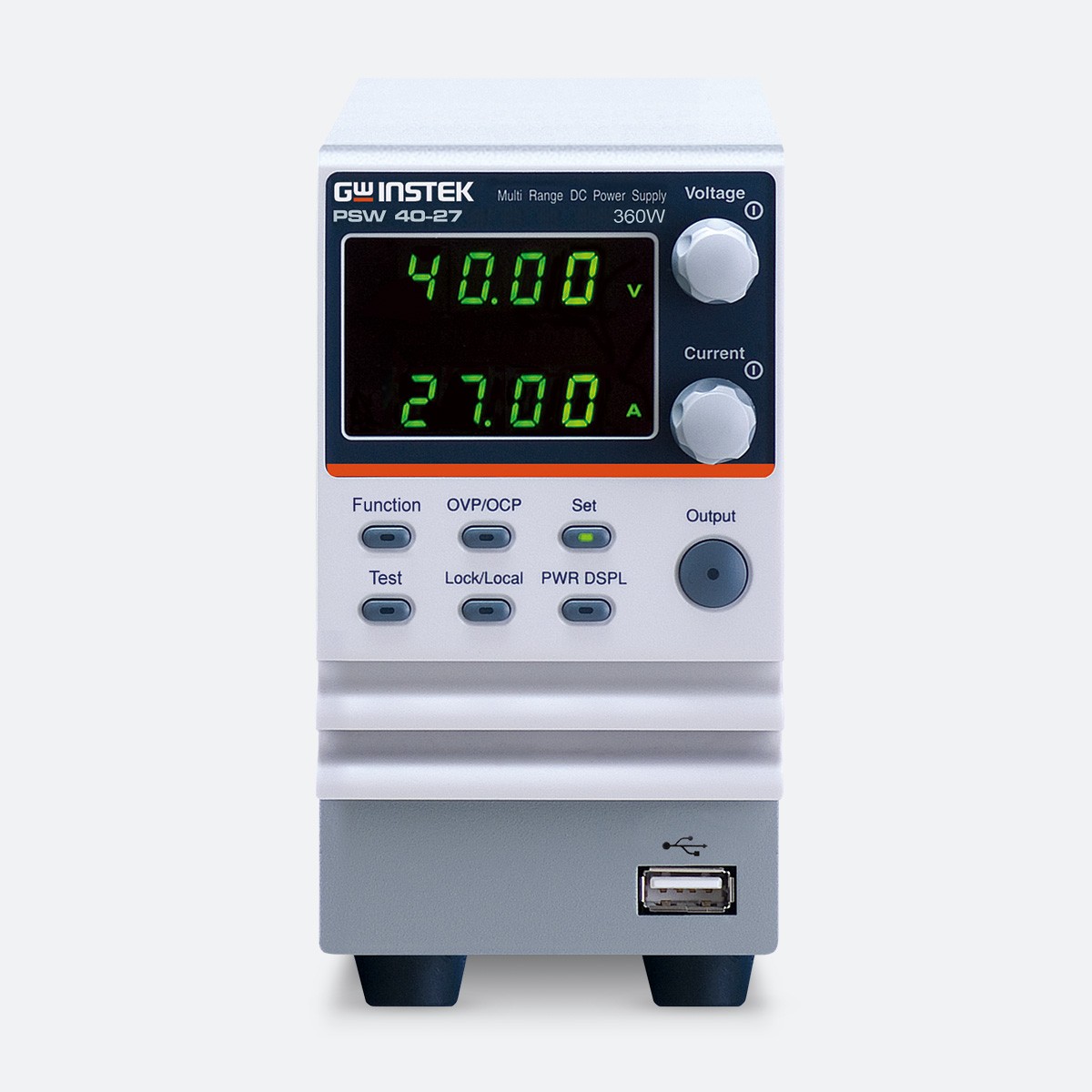

GW INSTEK - PSW 40-27 - 40V, 27A, 360W Multi-Range Programmable Switching DC Power Supply   The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements. The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage.  Features: - Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W - Multi-range Voltage & Current Combinations in One Power Supply - CV/CC Priority; Particularly Suitable for the Battery and LED Industry - Adjustable Slew Rate - Series Operation (2 units in Series) for (30V/40V/80V/160V) - Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V) - High Efficiency and High Power Density - 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W - Standard Interface: LAN, USB, Analog Control Interface - Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

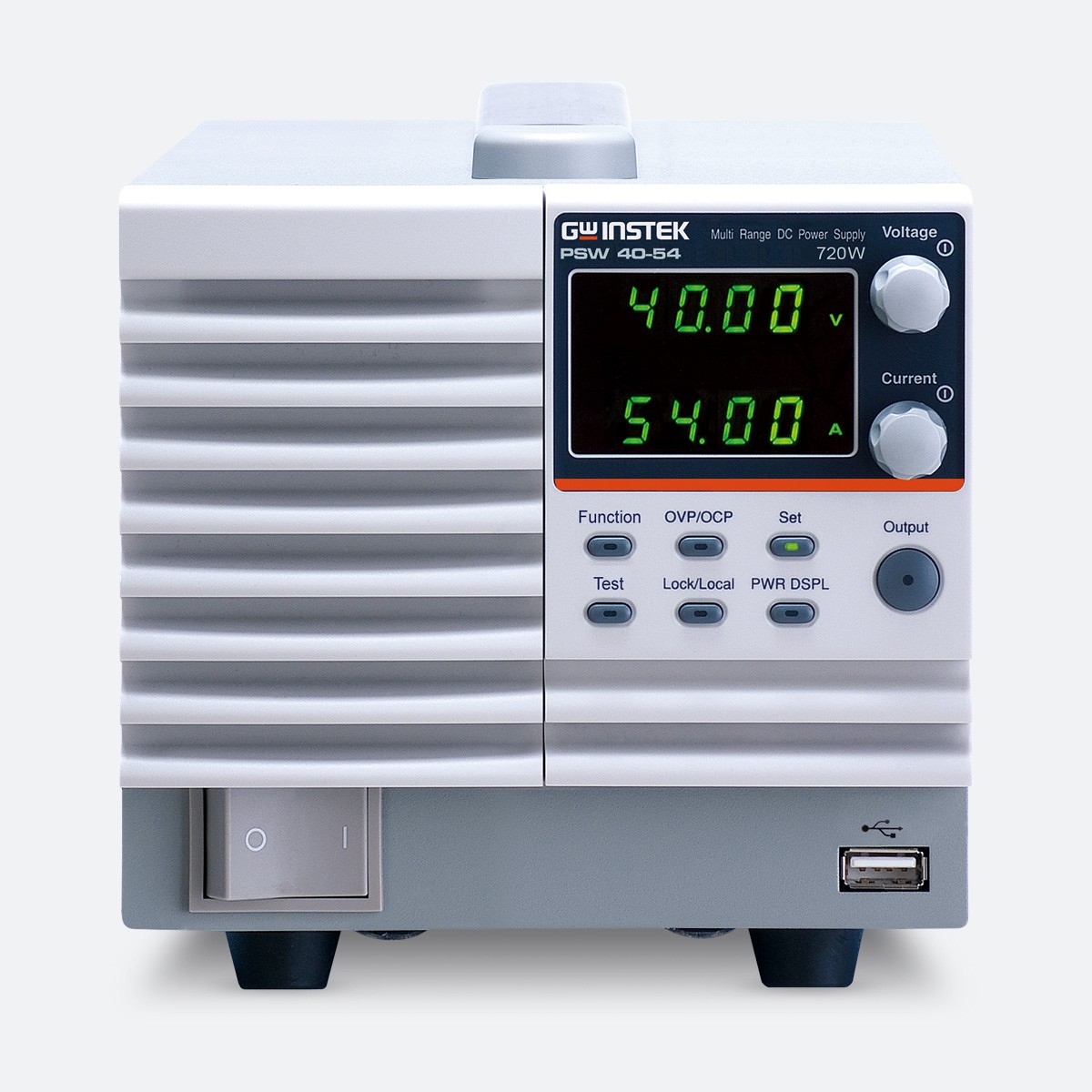

GW INSTEK - PSW 40-54 - 40V, 54A, 720W Multi-Range Programmable Switching DC Power Supply   The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements. The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage.  Features: - Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W - Multi-range Voltage & Current Combinations in One Power Supply - CV/CC Priority; Particularly Suitable for the Battery and LED Industry - Adjustable Slew Rate - Series Operation (2 units in Series) for (30V/40V/80V/160V) - Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V) - High Efficiency and High Power Density - 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W - Standard Interface: LAN, USB, Analog Control Interface - Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 40-81 - 40V, 81A, 1080W Multi-Range Programmable Switching DC Power Supply   The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements. The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage.  Features: - Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W - Multi-range Voltage & Current Combinations in One Power Supply - CV/CC Priority; Particularly Suitable for the Battery and LED Industry - Adjustable Slew Rate - Series Operation (2 units in Series) for (30V/40V/80V/160V) - Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V) - High Efficiency and High Power Density - 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W - Standard Interface: LAN, USB, Analog Control Interface - Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 80-13.5 - 80V, 13.5A, 360W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN, USB, Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 80-27 - 80V, 27A, 720W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density - 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN,USB,Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 80-40.5 - 80V, 40.5A, 1080W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN, USB, Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

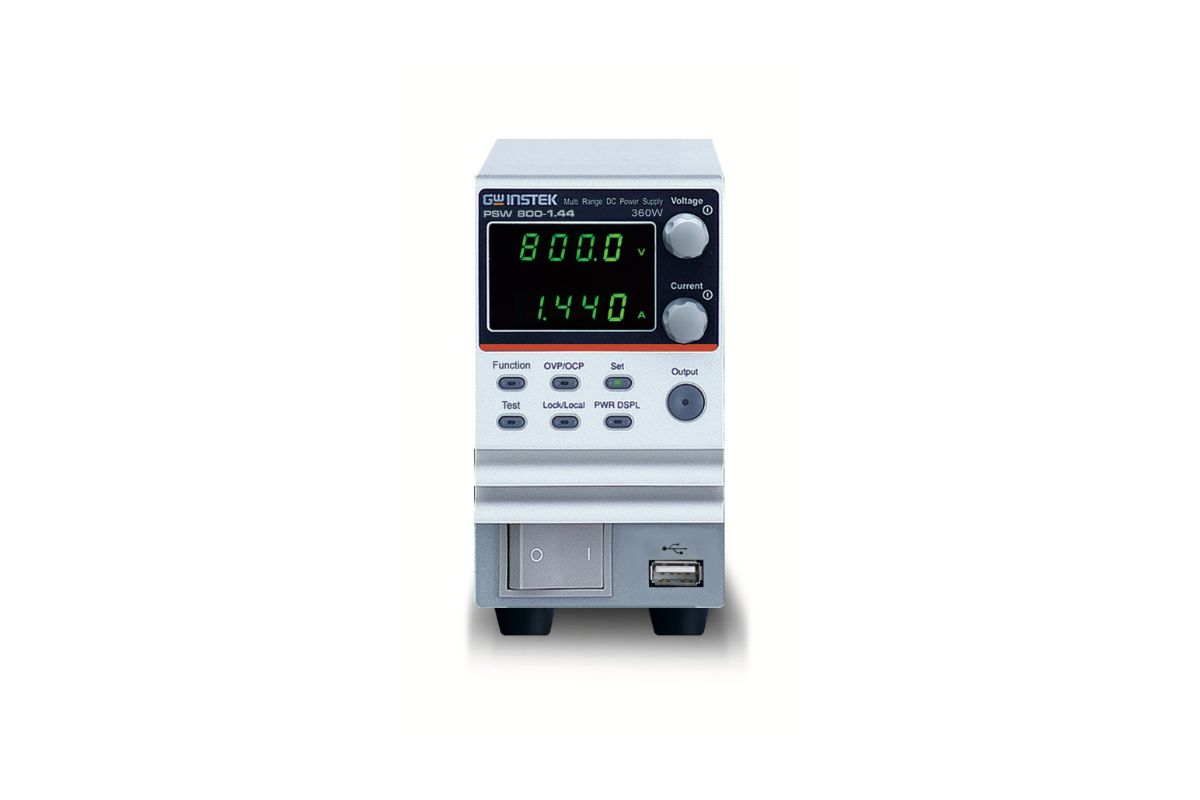

GW INSTEK - PSW 800-1.44PSW 800-1.44, Multi Range DC Power Supply 800V / 1.44A / 360WThe PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements. The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode. Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage.Features- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W - Standard Interface: LAN,USB,Analog Control Interface Optional Interface: GPIB-USB Adaptor, RS232-USB Cable LabView Driver

GW INSTEK - PSW 800-2.88 - 800V, 2.88A, 720W Multi-Range Programmable Switching DC Power Supply  The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN, USB, Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver

GW INSTEK - PSW 800-4.32 - 800V, 4.32A, 1080W Multi-Range Programmable Switching DC Power SupplyThe PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage.Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN,USB,Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver
