GW INSTEK - GDP-025 - 25MHz High Voltage Differential Probe.25MHz High Voltage Differential Probe. For use with following GW Instek oscilloscopes: GDS-3000 Series, MSO-2000E Series, MDO-2000E Series, GDS-2000A/E Series, GDS-1000B Series. GDP-025 Probe provides 25 MHz bandwidth, enabling users to safely make high-voltage measurements on floating circuit test. It converts floating signals to low-voltage ground-referenced signals that can be displayed safely on any ground-referenced oscilloscope. GDP-025 Differential Probe offers user-selectable attenuation settings that make it highly versatile, allowing it to be used for a broad range of applications. The probe comes with probe tip accessories for use with both small or large components in tight places. GDP-025 also provides over-range indicator which alerts the user when the probe input exceeds the dynamic range of the probe.Features include:- 25 MHz Bandwidth- Up to 1400 V differential voltage- Flexible attenuation option, suitable for various applications- Separation design, users can easily replace the probe connector to complete variety of test applications.

GW INSTEK - GDP-050 - 50MHz High Voltage Differential Probe.50MHz High Voltage Differential Probe. For use with following GW Instek oscilloscopes: GDS-3000 Series, MSO-2000E Series, MDO-2000E Series, GDS-2000A/E Series, GDS-1000B Series. GDP-025 Probe provides 25 MHz bandwidth, enabling users to safely make high-voltage measurements on floating circuit test. It converts floating signals to low-voltage ground-referenced signals that can be displayed safely on any ground-referenced oscilloscope. GDP-050 Differential Probe offers user-selectable attenuation settings that make it highly versatile, allowing it to be used for a broad range of applications. The probe comes with probe tip accessories for use with both small or large components in tight places. GDP-050 also provides over-range indicator which alerts the user when the probe input exceeds the dynamic range of the probe.Features include:- 50 MHz Bandwidth- Up to 7000 V differential voltage- Flexible attenuation option, suitable for various applications- Separation design, users can easily replace the probe connector to complete variety of test applications.

GW INSTEK - GDP-100 - 100MHz High Voltage Differential Probe.100MHz High Voltage Differential Probe. For use with following GW Instek oscilloscopes: GDS-3000 Series, MSO-2000E Series, MDO-2000E Series, GDS-2000A/E Series, GDS-1000B Series. GDP-025 Probe provides 25 MHz bandwidth, enabling users to safely make high-voltage measurements on floating circuit test. It converts floating signals to low-voltage ground-referenced signals that can be displayed safely on any ground-referenced oscilloscope. GDP-100 Differential Probe offers user-selectable attenuation settings that make it highly versatile, allowing it to be used for a broad range of applications. The probe comes with probe tip accessories for use with both small or large components in tight places. GDP-100 also provides over-range indicator which alerts the user when the probe input exceeds the dynamic range of the probe.Features include:- 100 MHz Bandwidth- Up to 7000 V differential voltage- Flexible attenuation option, suitable for various applications- Separation design, users can easily replace the probe connector to complete variety of test applications.

GW INSTEK - GOM-804 - Programmable DC Milli-Ohm Meter 50'000 counts The GOM-805 features 3.5-inch TFT display, maximum 50,000 counts measurement display, the rapid sampling rate of 60 readings per second, optimum 0.05% measurement precision, four wire measurement method as well as the temperature measurement and temperature compensation measurement function to meet the requirement of low resistance measurement application. The GOM-805 also includes various drive modes and Dry circuit for contact resistance measurement applications. More features, including 20 sets of panel setting memory and many external control interface such as RS-232C, USB, Handler/Scan/EXT IO or GPIB greatly elevate GOM-805 milliohm meter’s convenience on practical applications.Key features:- 50'000 counts- 3.5” (320×240) TFT LCD display- High accuracy of 0.05 % precision- 1 Amp test current, 0.1 µΩ resolution- Fast measurement of 60 readings per second- Four wire resistance measurement- Temperature compensation measurement function- Delayed measurement 20 sets of panel setting memory- Dry circuit- Drive modes: DC+/DC-, Pulsed, PWM, Zero, Standby- Interface: USB device, RS-232C, Handler/Scan/EXT I/O, and GPIB

GW Instek - GPD-3303SThe GPD-3303S Power Supply contains the superior technology and high quality which GW Instek had established through its long history of power supply design and manufacturing. It offers digital panel control, large display, bright LED indicators, high output resolution, 4 sets of setup memory, USB remote control and smart cooling fan control. Additionally , the GPD-3303S product provides easy operation , a wide selection of panel setting and operation.All these features make the GPD-3303S power supply the most promising new comer in the power supply market.Features:- 3 Independent Isolated Outputs;- 4 LED Display Sets: 3 digits after decimal point;- Minimum Resolution 1mV/1mA;- Digital panel control(rotary encoder Switch, rubber key with indicator);- User-friendly operation, coarse/fine volume control;- 4 Sets Save/Recall;- Key-Lock;- Output on/off;- Tracking Series and Parallel mode;- Smart cooling fan achieving low noise;- USB Standard Interface;- PC Software & USB Driver;- Labview driver

GW INSTEK - GPD-4303S - 195W, 4-Channel, Programmable Linear D.C. Power SupplyThe GPD-4303S Power Supply contains the superior technology and high quality which GW Instek had established through its long history of power supply design and manufacturing. It offers digital panel control, large display, bright LED indicators, high output resolution, 4 sets of setup memory, USB remote control and smart cooling fan control. Additionally , the GPD-4303S product provides easy operation , a wide selection of panel setting and operation. All these features make the GPD-4303S power supply the most promising new comer in the power supply market.Features- 4 Independent Isolated Outputs- 4 LED Display Sets: 3 digits after decimal point- Minimum Resolution 1mV/1mA- Digital panel control(rotary encoder Switch, rubber key with indicator)- User-friendly operation, coarse/fine volume control- 4 Sets Save/Recall- Key-Lock- Output on/off- Tracking Series and Parallel mode- Smart cooling fan achieving low noise- USB Standard Interface- PC Software & USB Driver- Labview driver.

GWINSTEK - GPE-30603 Channels Linear Power Supply 2x 30V / 6A / 1x 5V / 5A - Total 385WThe GPE-3060/6030 launched by GW Instek are high-resolution linear DC power supplies. Their primary aim is to replace the existing GPC-3060D/ 6030D models. The GPE-3060/6030 deliver 385 watts of output power and feature three independent isolated output channels. The GPE-3060 offers CH1/CH2 outputs of 0 to 30V and 0 to 6A, while the GPE-6030 supports CH1/CH2 outputs of 0 to 60V and 0 to 3A. Both models feature CH3 outputs of 5.0V at 5A.With respect to high program resolution, GPE-3060 provides 10mV/2mA and GPE-6030 offers 20mV/1mA. GPE-3060/6030 adopts a new hybrid power supply design, which can save 13% of power consumption compared with the wattage of the conventional linear power supplies, and the volume and weight are significantly reduced.Digital panel controlThe GPE-3060/6030 linear DC power supplies have a built-in digital panel control design. By long pressing and short pressing a single button, they provide efficient and user-friendly OVP (overvoltage protection) function. The OVP function provides overvoltage protection, and the panel lock function prevents voltage/current parameters from being tampered with by a third party to improve the protection of the DUT.The voltage and current setting knobs are changed to Encoder Switches to make the setting more accurate. In addition, the On/Off output button has a backlight display, which makes it easier for users to identify the current operating status of the power supply.Series/parallel operation functionIn addition to the independent output between each channel, GPE-3060/6030 can perform series/parallel automatic connection tracking function. Through the parallel or series function, the output of the power supply can be controlled at 30V/12A (parallel) (GPE-3060) or 120V/3A (series) (GPE-6030) and this function can be used on CH1/CH2.Optimization of heat dissipationThere are air inlet ducts in front of the panel to efficiently dissipate heat. Temperature controlled fan can effectively reduce fan noise.High measurement resolution (setting and readback functions)With respect to high program resolution, GPE-3060 provides 10mV/2mA and GPE-6030 offers 20mV/1mA with a readback accuracy of 30mV/10mA. GPE-3060/6030 ensure that the power output is pure and stable. Users can easily apply the series to simulate the DUT with very small voltages or currents. Conventional low-resolution linear DC power supplies cannot achieve this function.Panel output On/Off or rear panel remote control output On/Off functionGPE-3060/6030 provide the output On/Off function. This function can avoid unnecessary damage caused by pre-output when the DUT is connected to the power supply. Users can set the voltage and current parameters in advance and confirm all connections have been completed, and manually execute output On/Off function through the front panel. Furthermore, the series provides a simple analog control function to control external output On/Off through the Remote Control terminal on the rear panel.Features- 1/2/3 independent isolated output channels- GPE-3060 provides CH1/CH2: 0 ~ 30V / 0 ~ 6A output; CH3 supports 5.0V at 5A- GPE-6030 supports CH1/CH2: 0 ~ 60V / 0 ~ 3A output; CH3 supports 5.0V at 5A- Series/parallel tracking function- High program resolution of 10mV/1mA and measurement resolution of 30mV/10mA- Output On/Off function- Simple analog control interface- Multiple protection apparatuses such as overvoltage and overload protection functions

GWINSTEK - GPE-60303 Channels Linear Power Supply 2x 60V / 3A / 1x 5V / 5A - Total 385WThe GPE-3060/6030 launched by GW Instek are high-resolution linear DC power supplies. Their primary aim is to replace the existing GPC-3060D/ 6030D models. The GPE-3060/6030 deliver 385 watts of output power and feature three independent isolated output channels. The GPE-3060 offers CH1/CH2 outputs of 0 to 30V and 0 to 6A, while the GPE-6030 supports CH1/CH2 outputs of 0 to 60V and 0 to 3A. Both models feature CH3 outputs of 5.0V at 5A.With respect to high program resolution, GPE-3060 provides 10mV/2mA and GPE-6030 offers 20mV/1mA. GPE-3060/6030 adopts a new hybrid power supply design, which can save 13% of power consumption compared with the wattage of the conventional linear power supplies, and the volume and weight are significantly reduced.Digital panel controlThe GPE-3060/6030 linear DC power supplies have a built-in digital panel control design. By long pressing and short pressing a single button, they provide efficient and user-friendly OVP (overvoltage protection) function. The OVP function provides overvoltage protection, and the panel lock function prevents voltage/current parameters from being tampered with by a third party to improve the protection of the DUT.The voltage and current setting knobs are changed to Encoder Switches to make the setting more accurate. In addition, the On/Off output button has a backlight display, which makes it easier for users to identify the current operating status of the power supply.Series/parallel operation functionIn addition to the independent output between each channel, GPE-3060/6030 can perform series/parallel automatic connection tracking function. Through the parallel or series function, the output of the power supply can be controlled at 30V/12A (parallel) (GPE-3060) or 120V/3A (series) (GPE-6030) and this function can be used on CH1/CH2.Optimization of heat dissipationThere are air inlet ducts in front of the panel to efficiently dissipate heat. Temperature controlled fan can effectively reduce fan noise.High measurement resolution (setting and readback functions)With respect to high program resolution, GPE-3060 provides 10mV/2mA and GPE-6030 offers 20mV/1mA with a readback accuracy of 30mV/10mA. GPE-3060/6030 ensure that the power output is pure and stable. Users can easily apply the series to simulate the DUT with very small voltages or currents. Conventional low-resolution linear DC power supplies cannot achieve this function.Panel output On/Off or rear panel remote control output On/Off functionGPE-3060/6030 provide the output On/Off function. This function can avoid unnecessary damage caused by pre-output when the DUT is connected to the power supply. Users can set the voltage and current parameters in advance and confirm all connections have been completed, and manually execute output On/Off function through the front panel. Furthermore, the series provides a simple analog control function to control external output On/Off through the Remote Control terminal on the rear panel.Features- 1/2/3 independent isolated output channels- GPE-3060 provides CH1/CH2: 0 ~ 30V / 0 ~ 6A output; CH3 supports 5.0V at 5A- GPE-6030 supports CH1/CH2: 0 ~ 60V / 0 ~ 3A output; CH3 supports 5.0V at 5A- Series/parallel tracking function- High program resolution of 10mV/1mA and measurement resolution of 30mV/10mA- Output On/Off function- Simple analog control interface- Multiple protection apparatuses such as overvoltage and overload protection functions

GWINSTEK - GPP-3650LGPP-3060L/6030L/3650L triple-channel programmable DC power supplies are extension models of the GPP-X323 series. The maximum output power of these three models is 385W.GPP-3060 supports CH1/CH2: 0 ~ 30V / 0 ~ 6A output; GPP-6030 supports CH1/CH2: 0 ~ 60V / 0 ~ 3A output; GPP-3650 supports CH1/CH2: 0 ~ 36V / 0 ~5A output; CH3 of three models supports 1.8V, 2.5V, 3.3V, 5.0V/5A.GPP-3060L/6030L/3650L inherit the high program resolution (1mV/0.1mA) and read back resolution (0.1mV/0.1mA) of the GPP series with low-ripple noise characteristics ≦1mVrms/≦2mArms and ≦100µs output transient recovery ability. An independent output on-off switch is provided for each channel.The unique load function of the GPP series can arbitrarily set CH1/CH2 as power supply or load function. For example, one channel is set as power output, and the other channel is set as load function to consume the power of the DUT to satisfy simple battery charging and discharging or load characteristic test by a single power supply.Applications:Scientific research and experimental testingBattery charging and discharging testElectronic parts test3C electronic product testFeatures:4.3”TFT LCD DisplaySetting resolution: 1mV / 0.1mA; read back resolution: 0.1mV / 0.1mALow ripple noise: ≦1mVrms/ ≦2mArmsTransient response time: ≦100µSLoad function (CC, CV, CR mode)Tracking series and parallel function without additional external wiringUtilizing hardware to realize over voltage protection / over current protection / over temperature protectionDelay function / output monitoring function / output recorder functionSupports setting value, measurement value and output waveform displaySequential output function and built-in 8 template waveformsThe output recorder function records the output voltage & current parameters with a minimum recording interval of 1 secondProvides 10 sets of memory for each sequence/delay/recorder/panel setting conditionSupports a USB (Type A) output terminalIntelligent temperature control fan effectively reduces noiseStandard: RS-232, USB, LAN, Ext I/O ; Optional (LG) (manufacturer installed only): GPIB

GW Instek - GPP-4323 The GPP series regulated DC power supply series are light weight, adjustable, multifunctional work stations. The GPP-4323 has four independent voltage outputs that are all fully adjustable. The GPP series can be used for logic circuits where various output voltage or current are needed, and for tracking mode definition systems where plus and minus voltages with insignificant error are required. Key features 4.3" TFT LCD Display Supports Setting Value, Measurement Value and Output Waveform Display Load Function (CC, CV, CR Mode) Setting Resolution: 1mV/0.1mA ; Read BackResolution: 0.1 mV / 0.1 mA Low Ripple Noise: ≤350 Vrms / ≤2 mArms Transient Response Time: ≤50 s Tracking Series and Parallel Function without Additional External Wiring Utilizing Hardware to Realize Over Voltage Protection / Over Current Protection / Over Temperature Protection Delay Function / Output Monitoring Function / Output Recorder Function Intelligent Temperature Control Fan Effectively Reduces Noise Sequential Output Function and Built-in 8 Template Waveforms The Output Recorder Function Records The Output Voltage & Current Parameters with A Minimum Recording Interval of 1 Second Provides 10 Sets of Memory for Each Sequence / Delay / Recorder / Panel Setting Condition Standard: RS-232, USB, Ext I/O Optional: GPIB + LAN Compatible with Commands of GPD-X303S Series

GW Instek - GPS-1850DThe GPS-1850D is single output, 90 W, linear DC power supply with digital display meter. The GPS-1850D features overload and reverse polarity protection as well as high regulation and low ripple / noise that are maintained at 0.01 % and <1 mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.Key featuresSingle Output: 18 V, 5 A, 90 W Light and Compact Design 0.01 % High Regulation Constant Voltage and Constant Current Operation Remote Control for External Programmability Internal Select for Continuous or Dynamic Load Low Ripple and Noise Overload and Reverse Polarity Protection Series or Parallel Operation

GWInstek - GPS-2303The GPS-Series is 2-4 channel, 180 to 200W output, linear DC power supplies. Overload and reverse polarity protection, and an output on/off switch keep the GPS-Series and their load safe from unexpected conditions. A High regulation (0.01%+3mV) and low ripple/noise (< 1mVrms, 5Hz~1MHz) are maintained for channel 1 and 2 in constant voltage mode. Automated cooling fan speed control minimizes fan noise according to load conditions, ensuring quiet operation. The GPS-Series is an ideal solution for lightweight, inexpensive bench-top or portable applications requiring high regulation and multiple outputs.Key features:- 2 Independent Isolated Outputs- Four "3 Digits" LED Displays- 0.01% Load and Line Regulation- Low Ripple and Noise- Tracking Operation and Auto Series/Parallel Operation- Output ON/OFF Switch- Output Voltage and Current Setting When Output Disable- Fan Speed Control Circuit to Minimize Fan Noise- Over Load and Reverse Polarity Protection- Optional European Jack Type Terminal

GW INSTEK - GPS-3030DDLinear Power Supply GPS-3030DD, 30V / 3A / 90W, Dual Display for U and IThe GPS-Series is single output, 54 to 90W, linear DC power supplies. The GPS-Series includes both analog and digital display meters with varying power outputs. The GPS-Series features Overload and reverse polarity protection as well as high regulation and low ripple / noise that are maintained at 0.01% and &lt; 1mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.Features- Light and Compact Design- 0.01% High Regulation- Constant Voltage and Constant Current Operation- Remote Control for External Programmability Internal Select for Continuous or Dynamic- Load Low Ripple and Noise Overload and Reverse Polarity Protection Series or Parallel Operation- Optional European Type Jack Terminal for GPS-3030/GPS-3030D/GPS-3030DD

GWInstek - GPS-3303The GPS-Series is 2-4 channel, 180 to 200W output, linear DC power supplies. Overload and reverse polarity protection, and an output on/off switch keep the GPS-Series and their load safe from unexpected conditions. A High regulation (0.01%+3mV) and low ripple/noise (< 1mVrms, 5Hz~1MHz) are maintained for channel 1 and 2 in constant voltage mode. Automated cooling fan speed control minimizes fan noise according to load conditions, ensuring quiet operation. The GPS-Series is an ideal solution for lightweight, inexpensive bench-top or portable applications requiring high regulation and multiple outputs.Key features:- 3 Independent Isolated Outputs- Four "3 Digits" LED Displays- 0.01% Load and Line Regulation- Low Ripple and Noise- Tracking Operation and Auto Series/Parallel Operation- Output ON/OFF Switch- Output Voltage and Current Setting When Output Disable- Fan Speed Control Circuit to Minimize Fan Noise- Over Load and Reverse Polarity Protection- Optional European Jack Type Terminal

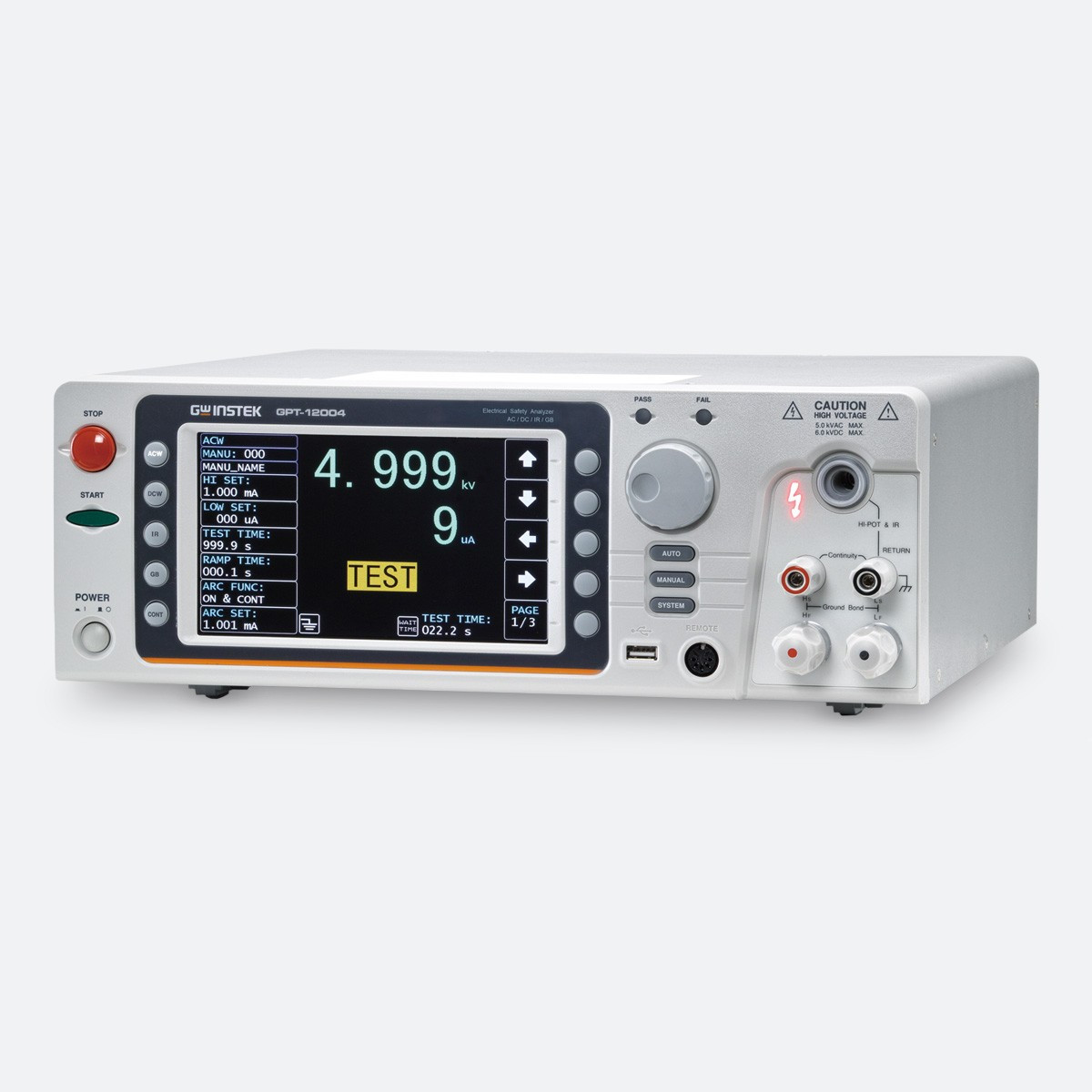

GW INSTEK - GPT-12004 - AC/DC/IR/GB Electrical Safety AnalyzerGW Instek introduces the flagship model (200VA output capacity) safety analyzer-the GPT-12000 series, which is the first safety analyzer in the world to comply with IEC 61010-2-034 (safety requirement for electrical requirement for measurement, control and laboratory use – particular requirements for measurement equipment for insulation resistance and test equipment for electric strength), which stipulates that the requirements of the software and hardware interfaces must be followed while designing high voltage and insulation resistance test and measurement instruments so as to ensure that users are provided with necessary protection and warning while using the instruments.Key features:- 200VA AC Test Capacity- Comply with IEC 61010-2-034- 7”TFT LCD- Manual / Auto Mode- RMS Current Measurement- Zero Crossing Turn-on Operation- Controllable Ramp-up & Ramp-down Time- Capacitive Load Testing Capability up to 47μF- Statistics & Analysis Function- Sweep Function for DUT Characteristic Analysis- Convenience Listed AUTO mode easy to read result & judge- Internal Storage & USB Storage available- Barcode Function available- Setting Data Export / Import Rear panel output available- Interface : RS-232C, USB host/device, Signal I/O and option GPIB or LAN- Universal power input

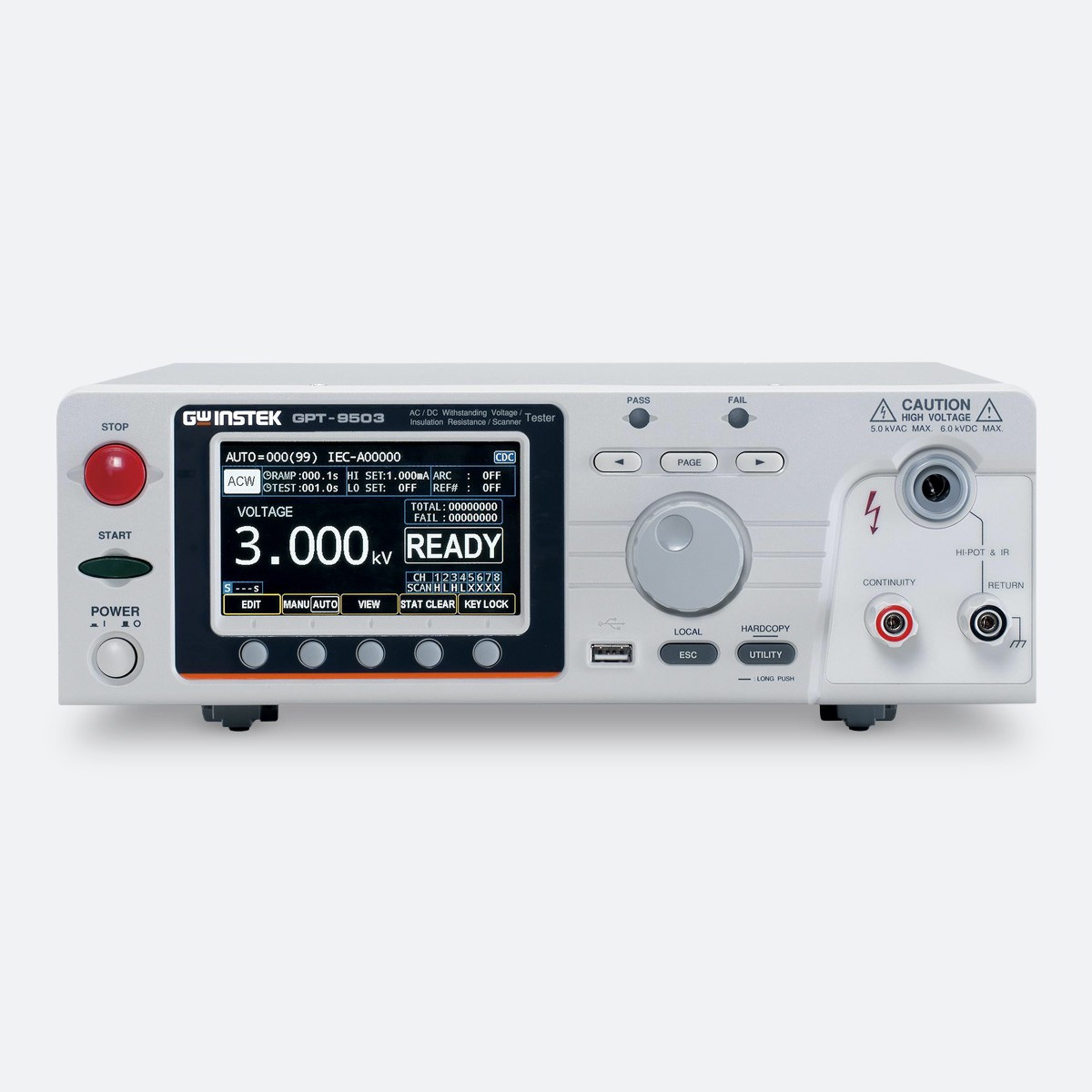

GW INSTEK - GPT-9503 - AC 150VA Multi-Channel Hipot TesterThe GPT-9500 series is a three-in-one multi-channel hipot tester, providing AC withstanding voltage (5kV max.), DC withstanding voltage (6kV max.), and insulation resistance (1000V max.).The series meets safety regulations: IEC, EN, UL, CSA, GB, JIS and other safety regulations and aims at the needs of the main test items of general electronic components or winding components during routine tests. The status of the 8 channels of GPT-9503 only provides the setting of H or X, which is more suitable for general components such as passive components for high-voltage testing between two points.Key feaures:- 150VA AC Test Capacity- 3 in 1 Tester : AC, DC, IR- Built-in 8 channel Scanner- 480 x 272 Color TFT LCD- Test parameter Export / Import through USB host- Statistics (counter) function Insulation resistance measurement up to 10GΩ- Open/Short Check (OSC)- ARC detection- Multi-language: Traditional / Simplified Chinese-English- Interface: RS-232C and USB host/device

GW INSTEK - GPT-9603 - AC/DC Withstanding Voltage/Insulation Resistance Tester The GPT-9600 Series offers an affordable solution for supporting routine tests of major items of the safety standards such as IEC, EN, UL, CSA, GB, JIS and other safety regulations. The GPT-9600 Series is built upon a platform of 100VA AC maximum power output while this model, GPT-9603, is a 3-in-1 capable of performing AC withstanding, DC withstanding and insulation resistance tests. This series is equipped with the high-efficiency PWM amplifier, which is the core of the platform design to impede the influence from the input AC voltage fluctuation and ensure a stable voltage output. Additionally, it renders users an intuitive operation environment by a simple and clear panel layout, a large LCD display and color LED indicators. The switching power supply, used as a universal input source, accommodates the power systems in most countries in the world.Key features:- 100VA AC Test Capacity- 240 x 48 Ice Blue Dot Matrix LCD- RMS Current Measurement- ARC Detection- Zero Crossing Turn-on Operation- PWM Switching Amplifier to Enhance the Power Efficiency and Reliable Testing- Automatically Switching Input Source for World-wide Input Voltage- Light Design and Easy to Operation

GW Instek - GPT-9804  Das GPT-9800 unterstützt die wichtigsten Prüfpunkte, die für die Einhaltung von Sicherheitsnormen wie IEC, EN, UL, CSA, GB, JIS und anderen Sicherheitsvorschriften erforderlich sind.Das GPT-9804 ist ein 4-in-1-Modell, das Prüfungen der Wechselstromfestigkeit, Gleichstromfestigkeit, des Isolationswiderstands und der Erdung durchführen kann. Die Sicherheitstester der Serie basieren auf einer hocheffizienten PWM-Verstärkerplattform mit einer maximalen Ausgangskapazität von 200 VA AC, um den Einfluss von Spannungsschwankungen der AC-Eingangsquelle zu verhindern. Dies gewährleistet eine stabile Spannungsversorgung für alle Tests der Serie GPT-9800.Alle wichtigen Prüffunktionen, einschließlich AC-Festigkeitsprüfung (AC 5kV/40mA), DC-Festigkeitsprüfung (DC 6kV/10mA), Isolationswiderstandsprüfung (DC 50V ~ 1000V) und Masseverbindungsprüfung (AC 30A max.), werden unter einem hochstabilen Spannungsausgang mit hochauflösenden Messergebnissen durchgeführt. Darüber hinaus sind die Prüfdauer, die Hochlaufzeit und die Ober- und Untergrenzen der Ausgangsspannung vollständig einstellbar, um eine Vielzahl von Sicherheitsprüfungen mit genauen Messergebnissen zu ermöglichen. Hauptmerkmale: 200VA AC Testkapazität 240x64 Ice Blue Dot Matrix LCD Manueller/Auto-Modus Funktionstaste für schnelle Auswahl Blitzlicht mit hoher Intensität zur Anzeige von Vorsicht und Status Sicherheits-INTERLOCK-Funktion Nulldurchgangs-Einschaltfunktion Steuerbare Hochlaufzeit RMS-Strommessung Hohe Auflösung: 1uA für die Strommessung, 2V für die Spannungseinstellung PWM-Verstärker zur Verbesserung der Leistungseffizienz und zuverlässigen Prüfung Max. 100 Speicherblöcke für die Einstellung der Prüfbedingungen (Schritte). Und jeder Schritt kann individuell benannt werden. Fernbedienungsanschluss auf der Vorderseite für "Start" und "Stop" Steuerung Schnittstelle: RS-232C, USB-Gerät, Signal-I/O und GPIB (optional)

GRA-417Rack Mount Kit, 19", 4U Size.Key features:Rack Adapter Panel19" Rack Using4U SizeSuitable for use with:  GCT-9040  GPT-9600 Series  GPT-9800 Series  GPT-9901A/9902A/9903A

GW INSTEK - GSG-2060 - 6 GHz Vector Signal Generator (GPIB) (CE), AM, FM, PM The GSG-2000 series is a basic RF vector signal/ signal generator that covers a frequency range from 9 kHz to 6 GHz. It is suitable for applications in communications education, RF component testing (such as amplifiers, antennas, and filters), automotive electronic signal testing, and IoT applications. It meets the testing requirements of RF products during production and development stages. Compared to its main competitors, the GSG-2000 series offers superior specifications including a wide amplitude output range of +20 dBm to -140 dBm, lower phase noise of -117 dBc/Hz, and high frequency accuracy with 10 ppm frequency stability and 2 ppm aging rate. Users have the option to enhance frequency stability and aging rate by selecting the OCXO (Oven Controlled Crystal Oscillator) option, which provides 10ppb stability and 0.1 ppm aging rate. For the signal modulation, the entire series has built-in AM, FM, and PM analog modulation, and GSG-2160 features a digital signal modulation function with a maximum bandwidth of 60 MHz digital signal output, supporting ASK, PSK, APSK, QAM, FSK, MSK, User-defined IQ, User-defined FSK modulation signals. Furthermore, the GSG-2000 series also provides LF signal and Pulse signal output. The LF signal allows users to output Sine, Square, Triangle/Ramp, Gaussian Noise signals, and the Pulse signal output can simulate pulse wave applications of various widths. In addition to the above signal outputs, GSG-2000 also provides AM/FM/digital IQ signal input, as well as independent output ports for digital I or Q signals. GSG-2000 adopts a seven-inch TFT LCD display that can fully display the parameters and status set by the user, and the series also provides USB, LAN, GPIB (option) communications interfaces, and provides standard SCPI-compatible commands to support remote control . GSG-2000 is designed for 3U high standard rack size. The GSG-2000 series is available in two models and the main differences are shown in the Datasheet.  Features: - Frequency range: 9 kHz ~ 6 GHz - Frequency resolution: 1 mHz - Standard 10 ppm frequency stability, 2 ppm aging rate - Optional AUX (OCXO): 10 ppb frequency stability, 0.1 ppm aging rate - Amplitude range: -140 dBm to +20 dBm - 0.01 dBm amplitude setting resolution - Amplitude setting unit: dBm, dBµV, Vrms - Phase noise: <-117 dBc/Hz (real) @1 GHz output and 20 kHz offset - The sampling speed of digital modulation signal (I/Q) output reaches 180MSa/s - Frequency/amplitude switching speed: ≤ 5 ms - Built-in LF/RF signal output, Pulse signal output - The series has built-in AM, FM, PM analog signal modulation functions - Supports IQ modulation signal output (GSG-2160 only) - Up to 60 MHz baseband I or Q modulation signal output - Up to 120 MHz RF I+Q modulation signal output - Built-in ASK, PSK, APSK, QAM, FSK, MSK, self-defined IQ/FSK digital signal modulation functions (GSG-2160) - Provides USB, LAN and GPIB (option), commands comply with SCPI standards

GW INSTEK - GSG-2160 - 6 GHz Vector Signal Generator (GPIB) (CE), AM, FM, PM, ASK, PSK, APSK, QAM, FSK, MSK, user define IQ, user defined FSKThe GSG-2000 series is a basic RF vector signal/ signal generator that covers a frequency range from 9 kHz to 6 GHz. It is suitable for applications in communications education, RF component testing (such as amplifiers, antennas, and filters), automotive electronic signal testing, and IoT applications. It meets the testing requirements of RF products during production and development stages.Compared to its main competitors, the GSG-2000 series offers superior specifications including a wide amplitude output range of +20 dBm to -140 dBm, lower phase noise of -117 dBc/Hz, and high frequency accuracy with 10 ppm frequency stability and 2 ppm aging rate. Users have the option to enhance frequency stability and aging rate by selecting the OCXO (Oven Controlled Crystal Oscillator) option, which provides 10ppb stability and 0.1 ppm aging rate.For the signal modulation, the entire series has built-in AM, FM, and PM analog modulation, and GSG-2160 features a digital signal modulation function with a maximum bandwidth of 60 MHz digital signal output, supporting ASK, PSK, APSK, QAM, FSK, MSK, User-defined IQ, User-defined FSK modulation signals.Furthermore, the GSG-2000 series also provides LF signal and Pulse signal output. The LF signal allows users to output Sine, Square, Triangle/Ramp, Gaussian Noise signals, and the Pulse signal output can simulate pulse wave applications of various widths. In addition to the above signal outputs, GSG-2000 also provides AM/FM/digital IQ signal input, as well as independent output ports for digital I or Q signals.GSG-2000 adopts a seven-inch TFT LCD display that can fully display the parameters and status set by the user, and the series also provides USB, LAN, GPIB (option) communications interfaces, and provides standard SCPI-compatible commands to support remote control . GSG-2000 is designed for 3U high standard rack size.The GSG-2000 series is available in two models and the main differences are shown in the Datasheet.Features: - Frequency range: 9 kHz ~ 6 GHz - Frequency resolution: 1 mHz - Standard 10 ppm frequency stability, 2 ppm aging rate- Optional AUX (OCXO): 10 ppb frequency stability, 0.1 ppm aging rate - Amplitude range: -140 dBm to +20 dBm - 0.01 dBm amplitude setting resolution - Amplitude setting unit: dBm, dBµV, Vrms - Phase noise: <-117 dBc/Hz (real) @1 GHz output and 20 kHz offset - The sampling speed of digital modulation signal (I/Q) output reaches 180MSa/s - Frequency/amplitude switching speed: ≤ 5 ms - Built-in LF/RF signal output, Pulse signal output - The series has built-in AM, FM, PM analog signal modulation functions - Supports IQ modulation signal output (GSG-2160 only) - Up to 60 MHz baseband I or Q modulation signal output - Up to 120 MHz RF I+Q modulation signal output - Built-in ASK, PSK, APSK, QAM, FSK, MSK, self-defined IQ/FSK digital signal modulation functions (GSG-2160) - Provides USB, LAN and GPIB (option), commands comply with SCPI standards

GW INSTEK - GSP-8180TG1.8GHz Spectrum Analyzer with Tracking Generator The GSP-8000 series, brand new general spectrum analyzers from GW Instek, features three frequency ranges, namely 8.0GHz, 3.8GHz and 1.8GHz. The series is suitable for teaching research, R&D verification, and the test requirements of radio frequency products during production and development stages. The series provides 1Hz ~ 1MHz resolution bandwidth (RBW), 10Hz ~ 3MHz video bandwidth (VBW), -104dBc/Hz phase noise, a 20dB preamplifier, and the lowest noise floor of -160dBm/Hz (typical).With respect to measurement applications, GSP-8000 has built-in Time Spec function, AM/FM signal demodulation function, channel test (Channel Power Measurement) function, Pass-Fail function, etc. The Time Spec function can simultaneously observe and display the correlation between power, frequency and time. ACPR/OCBW/CHPW tests can be used to test adjacent channels, power occupation bandwidth ratio, and channel power. The Pass-Fail function can be used to determine whether the signal is within the set range. Users can use these functions to conduct a wide range of measurement applications.GSP-8000 utilizes a 10.4-inch TFT LCD large-size screen with XGA (1024*768) resolution to allow an easy observation of test signals. For communication interface, GSP-8000 provides two interfaces: USB and LAN. Through the USB Host, users can quickly retrieve the files stored after measurements, while USB Device and LAN interface allow users to control the instrument through dedicated PC software, or use the corresponding command set to design the required program.- GSP-8000 also provides two options, namely TG and EMI Filter. For GSP-8800 customers need to decide the TG function when placing an order. Other options can be activated through the corresponding software authorization (Soft-Key), which greatly improves usage efficiency.Features: Frequency Range: 9kHz ~ 3.8GHz RBW: 1Hz ~ 1MHz in 1-3-5-10 steps VBW: 10Hz ~ 3MHz in 1-3-5-10 steps Phase Noise: -104 dBc/Hz Sensitivity: -160dBm/Hz Typical @PreAmp On Built-in AM/FM Demodulation Built-in Time Spec Function Measurement Function: ACPR/OCBW/CHPW, NdB BW, Pass-Fail, Freq. Counter, Noise Marker Built-in 20dB Preamplifier Communication Interface: LAN, USB Host/Device Display: 10.4" XGA Output (1024*768) Options: Tracking Generator for GSP-8800, EMI Filter

GW Instek - GSP-9300B - GSP-9300B, 9kHz - 3GHz, 0.025ppm stability, Sensitivity: -149dBm/Hz (@PreAmp on), RBW: 1Hz ~ 1MHzGSP-9300B is a 3GHz spectrum analyzer to meet basic RF measurement requirements. It provides the frequency stability of 0.025ppm; the aging rate of 1ppm/year; a built-in preamplifier; the base noise of -149dBm/Hz, and more than 20 measurement applications, including AM/FM modulation signal analysis, signal channel analysis, and CATV parameter test. While collocating with TG option, GSP-9300B can conduct frequency response or power linearity tests for components.For monitoring signals, GSP-9300B provides Topographic display mode, which is capable of distinguishing continuous or random signals by using color temperature. Spectrogram mode provides a time axis on spectrum display that allows users to observe signal variations based upon the reference of time. Split window mode allows different parameter settings for each display window. Additionally, GSP-9300B also provides user-friendly user interfaces such as display mode, help, multi-languages, and fast data logging, etc. Interfaces and software include USB/RS-232/LXI/MicroSD/GPIB (option)/DVI output and dedicated PC software IVI Driver.GSP-9300B, with its unique features, including auto wake-Up, sequence function, and limit line testing, is specially designed to meet the requirements of production lines. The patent design of heat conduction allows GSP-9300B to substantially reduce the warm-up time so as to expedite production processes. Options include tracking generator, carrying bag, battery module, EMI antenna set and rack accessories. The compact design of GSP-9300B satisfies either field testing or the integration of automatic testing systems.To sum up, GSP-9300B is a stable, light and all-purpose test equipment, which is the most ideal choice for the educational market, production line, and general signal monitoring applications, etc. Most important, the pricing of GSP-9300B is beyond your imagination and it is the number one choice for users with budget considerations.Features:- Frequency Range: 9kHz ~ 3 GHz- 0.025ppm Frequency Stability and 1ppm aging Rate- Built-in Preamplifier, 50dB Attenuator, and Sequence Function- RBW: 1Hz ~ 1MHz- Sensitivity: -149dBm/Hz (@PreAmp on)- Built-in AM/FM Demodulation & Analysis- Built-in P1dB point, Harmonic, Channel Power, N-dB bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time - Domain Power, Gated Sweep- Built-in Spectrogram, Topographic and Dual-View Display Modes- Remote Control Interface: LAN, USB, RS-232- Options: Tracking Generator, GPIB Interface

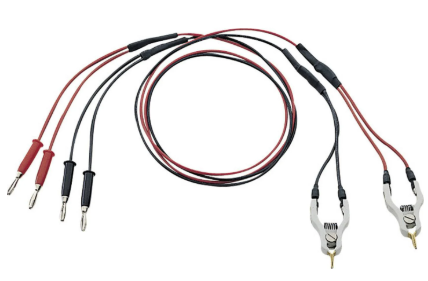

GW INSTEK - GTL-108A - T est Lead, Banana to Kelvin Test Lead, 4W Type, 1100mm
