DHO1074

RIGOL - DHO1102 Digital Oscilloscope with 100 MHz bandwidth, 12-bit resolution, and 2 analog channels. Features a 10.1" HD touchscreen for intuitive operation and clear waveform visualization.Sample rates up to 2 GSa/s, with a memory depth of 50 Mpts, enabling detailed signal capture and long acquisition times. Supports serial triggering and decoding (SPI, I²C, RS232/UART, CAN, LIN), with waveform capture rates up to 1,500,000 waveforms per second using UltraAcquire mode.Analysis capabilities include automatic measurements, FFT spectrum analysis, zoom and playback functions, and a low noise floor for accurate small-signal measurement.Interfaces:USB Host, USB Device, Ethernet (LAN), HDMI

RIGOL - DHO1104Digital Oscilloscope with 100 MHz bandwidth, 12-bit resolution, and 4 analog channels. Features a 10.1" HD touchscreen for intuitive operation and clear waveform visualization. Sample rates up to 2 GSa/s, with a memory depth of 50 Mpts, enabling detailed signal capture and long acquisition times. Supports serial triggering and decoding (SPI, I²C, RS232/UART, CAN, LIN), with waveform capture rates up to 1,500,000 waveforms per second using UltraAcquire mode. Analysis capabilities include automatic measurements, FFT spectrum analysis, zoom and playback functions, and a low noise floor for accurate small-signal measurement. Interfaces: USB Host, USB Device, Ethernet (LAN), HDMI

RIGOL - DHO1202Digital Oscilloscope with 200 MHz bandwidth, 12‑bit resolution, and 2 analog channels. Features a 10.1″ HD touchscreen display for intuitive operation and clear waveform visualization. Sample rates up to 2 GSa/s, with a memory depth of 50 Mpts (100 Mpts optional), enabling detailed signal capture and long acquisition times. Supports serial triggering and decoding (SPI, I²C, RS232/UART, CAN, LIN), with waveform capture rates up to 1,500,000 wfms/s in UltraAcquire mode. Analysis capabilities include automatic measurements, FFT spectrum analysis, zoom and playback functions, and a low noise floor for accurate small‑signal measurement. Interfaces: USB Host, USB Device, Ethernet (LAN), HDMI.

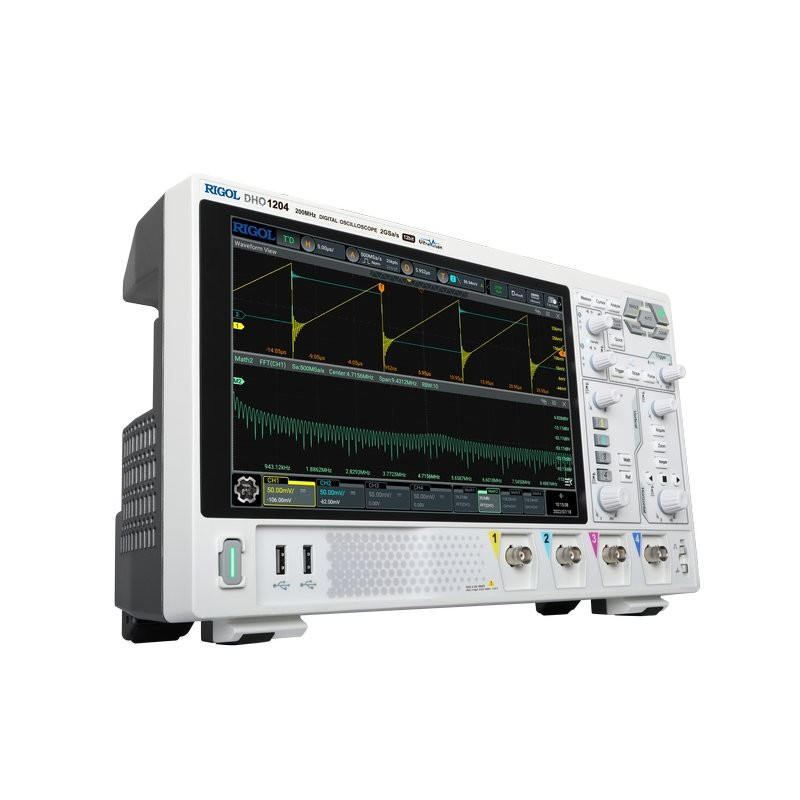

RIGOL - DHO1204Digital Oscilloscope with 200 MHz bandwidth, 12-bit resolution, and 4 channels. Features a 10.1" WXGA touchscreen for intuitive operation. Sample rates up to 2 GS/s (1 channel), 1 GS/s (2 channels), and 500 MS/s (4 channels), with a memory depth of 50 M / 25 M / 12.5 M points (1/2/4 channels). Supports CAN/LIN, RS232/UART, and I²C/SPI trigger and analysis functions, with a signal capture rate of up to 1,500,000 signals per second. Hardware real-time recorder allows up to 500,000 recordings (1 channel). Analysis features include 41 automatic measurements, advanced FFT up to 1 M points, four user-definable math functions, as well as zoom analysis, memory play, playback, zone trigger, and pass/fail testing. Interfaces: 2 × USB 3.0 Host, 1 × USB 3.0 Device, Ethernet, HDMI.

RIGOL - DHO1072 - Oscilloscope, 70MHz. 2 Ch. 12-bit vertical resolution 2 GSa/s. Ultra-low noise floor = cleaner sign Oscilloscope, 70 MHz. 2 analog channels and 1 EXT channel. 12-bit vertical resolution Real-time sample rate up to 2 GSa/s. Ultra-low noise floor for cleaner sign
