KEYSIGHT E36233AThe Power Supply E36233A from Keysight with automatic range selection is the ideal selection for applications where a higher power is required. The two independent 200 W outputs of a dual channel unit can supply up to 400 W. The automatic range selection makes the Power Supply delivering the maximum current at all different voltages. Automatic serial- and parallel-circuit at 2 channel models offer max. voltage or max. current up to a power of 400 W.Key features> Dual Output: 30 V, 20 A, 400 W> Auto-parallel outputs for higher current up to 40 A.> Autoranging power supply that produce more current at all voltages levels> Control inrush current with the variable slew rate> Acquire device protection by using overvoltage, overcurrent, and overtemperature provide device protection> Benefit from <350 µVrms for low ripple and noise output> Improve load regulation with a four-wire sense> Measure power over time with a built-in data logger> Simplify USB, LAN (LXI Core), and optional GPIB connectivity

KEYSIGHT E36234AThe Power Supply E36233A from Keysight with automatic range selection is the ideal selection for applications where a higher power is required. The two independent 200 W outputs of a dual channel unit can supply up to 400 W. The automatic range selection makes the Power Supply delivering the maximum current at all different voltages. Automatic serial- and parallel-circuit at 2 channel models offer max. voltage or max. current up to a power of 400 W.Key features> Dual Output: 60 V, 10 A, 400 W> Auto-series combined outputs for higher voltage up to 120 V.> Autoranging power supply that produce more current at all voltages levels> Control inrush current with the variable slew rate> Acquire device protection by using overvoltage, overcurrent, and overtemperature provide device protection> Benefit from <350 µVrms for low ripple and noise output> Improve load regulation with a four-wire sense> Measure power over time with a built-in data logger> Simplify USB, LAN (LXI Core), and optional GPIB connectivity

KEYSIGHT E36312AThe E36300 Series triple output power supply is ready for your bench application. With low output ripple/noise and accurate voltage/current measurements, you can test with confidence. Power multiple voltage buses with clean, reliable power, view voltage and current on all outputs simultaneously. You have access to advanced features such as data logging, output sequencing, list mode, and output coupling.Key features:4.3" color LCD Display Color-coded channels and display for fast and error-free control Individual voltage/current knobs with rotary encoder control for precise setting Intuitive, easy-to-use front panel interface Meter view to display more info on a selected channel Auto series/parallel connection Low output noise — ripple and noise <350 µVrms Accurate programming and readback accuracy <0.04 % Excellent stability with line and load regulation at 0.01 % All three outputs are isolated and set independently 4-wire sense to improve measurement accuracy Overvoltage, and overcurrent device protection Connectivity: USB, LAN (LXI Core), GPIB (optional)

KEYSIGHT - E36313AThe triple output E36300 series is ready for your bench application. With low output ripple/noise and accurate voltage - current measurement, you can test with confidence and power your next insight.This E36313A model offers twice the current of the other models with the same extended feature set as the E36312A model.Key Features:Clean, reliable power• Low output ripple and noise• Excellent programming/readback accuracy• Excellent line/load regulation: 0.01%• 2-wire or 4-wire remote sense• Over voltage, over current, and over temperature protectionConvenient benchtop capabilities• Three independent power supplies in one box• Low acoustic noise• Auto series/parallel connections• Front and rear output terminalIntuitive and easy to use interfaces• 4.3-inch LCD color display• Color-coded channels• Individual knobs for voltage and current• E3631A code compatible• LAN (LXI), USB and GPIB (optional)Advance characterization• Data logging• Output sequencing• LIST mode• Low current range measurement

KEYSIGHT - E36441A - E36441A, Power Supply, 4 Channels, 400 WAutoranging bench power supply - Power Your Next Insight400 W four-channel DC power supply, engineered for precision and reliability.This solution delivers 400 W across four outputs, each providing 160 W at 32 V / 10 A. Enjoy precise control with accurate programming and readback. Experience stable performance, low ripple and noise, and a fast transient response. It supports both two-wire and four-wire remote sensing for accurate voltage delivery. The user-friendly interface features a seven-inch color display, front and rear terminals, colorcoded channels, and individual adjustment knobs. Connectivity is seamless with Local Area Network (LAN) and Universal Serial Bus (USB) interfaces, and an emulator option ensures easy migration from the computer program with third-party power supplies.Features:Clean and reliable power- Four outputs – 160 W / 32 V / 10 A per channel, a total of 400 W- Auto Series to 128 V; Parallel to 40 A with the optional Series and Parallel Kit- Low output ripple and noise- Accurate programming/readback capability- Fast transient response, command processing, and up / down program speed- two-wire or four-wire remote sense- Over-voltage, over-current, and over-temperature protection Intuitive and easy-to-use interface- Seven-inch Liquid Crystal Display (LCD) color display- Numerical keypad for precise output setting- Color-coded channels- Individual knobs for voltage and current More productivity features- Built-in data logger, output sequencing, LIST mode, output tracking, and adjustable voltage slew rate- Front and rear output terminals- LAN and USB connectivity - PathWave BenchVue power supply application software

KEYSIGHT - E4980A - Precision LCR Meter, 20 Hz to 2 MHz test frequency The E4980A precision LCR meter provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980A is the ultimate tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity. For materials measurements, the E4980A with the N1500A-005/006 materials measurement suite provides ease-of-measurements, from setting-up fixtures to report generation.Key features and specifications:- 20 Hz to 2 MHz test frequency, with 4-digit resolution in any range- 0.05% basic accuracy with superior measurement repeatability at low and high impedance - Built-in 40V DC Bias (Option 001)- Rdc measurements (Option 200)Additional features include:- 20 Vrms test signal (Option 001) - High-speed measurements: 5.6 ms - 201 points list sweep - Versatile PC connectivity (LAN, USB and GPIB)

KEYSIGHT - EDU33212A - Arbitrary Waveform Generator, 20 MHz, 2 Channels The Keysight EDU33210 Series function / arbitrary waveform generators offer the standard signals and features you expect — such as modulation, sweep, and burst. It also provides features that give you the capabilities and flexibility you need to get your job done quickly, no matter how complex. An intuitive, information-packed front-panel interface enables you to easily recall where you left off when your attention is focused elsewhere. And that is just the beginning. The EDU33210 Series 20 MHz function / arbitrary waveform generators ship standard with USB and LAN connectivity, making it easy for remote access and control. It supports operation using standard commands for programmable instruments (SCPI) language, interchangeable virtual instruments (IVI) driver, web browser, or Keysight's Pathwave BenchVue software. The EDU33210 Series 20 MHz function / arbitrary waveform generators feature a built-in USB memory port enabling you to store setup parameters with a USB flash drive. This feature maximizes efficiency when you need to restore the same setup into all the function / arbitrary waveform generators in your lab. It also enables you to load the arbitrary waveform signal to the function generator quickly.Key features:- Use the signature 7-inch color display for a simultaneous parameter set up, signal viewing, and editing.- Get six built-in modulation types and 17 popular waveforms to simulate typical applications for testing.- Acquire 16-bit arbitrary waveform capability with memory up to 8 M samples per channel.- Begin using the USB and LAN IO interface for remote connectivity.- Receive Keysight's PathWave BenchVue software to enable PC control.

KEYSIGHT - EDU36311AThe Keysight EDU36311A triple-output DC bench power supply comes with a robust design and usability at an affordable price. Its 90 W, electrically isolated channels supply clean and reliable power. The signature 7-inch wide video graphics array (WVGA) gives you clear view, from instrument set up to the output status. You can easily control the EDU36311A triple output DC bench power supply remotely via USB or LAN. This solution includes Keysight’s PathWave BenchVue power supply software for the PC.Key features:Clean, reliable power• low output ripple and noise• excellent programming / readback accuracy• exceptional line / load regulation• superior over-voltage, over-current, and over-temperature protectionConvenient benchtop capabilities• independent power supplies (three) in one box• low acoustic noiseIntuitive and easy-to-use interfaces• signature 7-inch color display• distinctive color-coded channels• individual knobs for voltage and current• flexible connection using LAN (LXI) or USB

KEYSIGHT - EDUX1052AProvide a quality education for students and prepare them for industry with professional level instruments. The 1000 X-Series leverages the same technology as our higher-end oscilloscopes, allowing students to learn on the same hardware and software being used in leading R&D labs. The 1000 X-Series is a family of low-cost oscilloscopes that don’t compromise on quality. Each model has measurement and standard software analysis capability that rivals oscilloscopes 3x the price. The 1000 X-Series is a powerful protocol analyzer that enables hardware-based specialized serial communication analysis (standard). Other vendors’ oscilloscopes use software post-processing techniques that slow down the waveform and decode update rate, but the 1000 X-Series has faster decoding based on hardware technology that enhances scope usability and the probability of capturing infrequent serial communication errors. The EDUX models support I2C and UART/RS232 (standard).The 1000 X-Series has an integrated 3-digit voltmeter (DVM) inside each oscilloscope. The voltmeter operates through probes connected to the oscilloscope channels, but its measurement is decoupled from the oscilloscope triggering system so both the DVM and triggered oscilloscope measurements can be made with the same connection. You can quickly measure AC RMS, DC, and DC RMS without configuring the oscilloscope capture. The voltmeter results are always displayed, keeping these quick characterization measurements at your fingertips. The built-in DVM comes standard in 1000 X-Series oscilloscopes.Key features:- 50 MHz bandwidth- 1 GSa/s sample rate- 200k points memory- Make professional measurements, math, FFT, and serial protocol analysis, all standard- Quickly learn how to use with built-in help and training signals- See more signal detail at 100,000 waveforms/sec update rate

KEYSIGHT - FG33531A - FG33531A, 1 Channel, 100 MHz Functional / Arbitrary Waveform GeneratorThe Keysight FG33530 Series function / arbitrary waveform generators offer up to 100 MHz with all the essential signals and features you expect, including modulation, sweep, and burst capabilities. Enjoy seamless navigation through the intuitive front-panel interface, allowing you to effortlessly adjust and review your settings for maximum efficiency. The Trueform technology replicates every waveform point, providing up to 16 Mega Samples (MSa) record length per channel. Enhance your waveform creation process with Keysight BenchVue software and BenchLink Waveform Builder Pro software, making it simple to create and edit even your most complex waveforms.Features:- Seven-inch color display for parameter setup, signal viewing, and editing- Jitter of less than 50 ps- Total harmonic distortion of less than 0.06%- Six built-in modulation types and seventeen popular waveforms to simulate typical applications for testing- 16-bit arbitrary waveform capability with maximum sampling rate of 320 MSa/s and memory of up to 16 MSa per channel.

KEYSIGHT - FG33532A - FG33532A, 2 Channel, 100 MHz Functional / Arbitrary Waveform GeneratorThe Keysight FG33530 Series function / arbitrary waveform generators offer up to 100 MHz with all the essential signals and features you expect, including modulation, sweep, and burst capabilities. Enjoy seamless navigation through the intuitive front-panel interface, allowing you to effortlessly adjust and review your settings for maximum efficiency. The Trueform technology replicates every waveform point, providing up to 16 Mega Samples (MSa) record length per channel. Enhance your waveform creation process with Keysight BenchVue software and BenchLink Waveform Builder Pro software, making it simple to create and edit even your most complex waveforms.Features:- Seven-inch color display for parameter setup, signal viewing, and editing- Jitter of less than 50 ps- Total harmonic distortion of less than 0.06%- Six built-in modulation types and seventeen popular waveforms to simulate typical applications for testing- 16-bit arbitrary waveform capability with maximum sampling rate of 320 MSa/s and memory of up to 16 MSa per channel.

KEYSIGHT - HD302MSOOscilloscope, 2 Channels, 200 MHz, 14Bit, 20Mpts/Channel.The HD3 Series brings Keysight’s industry-leading capabilities from high-performance oscilloscopes to the high-volume level, making precision portable from 200 MHz to 1 GHz. Leveraging custom hardware technology from the UXR Series, the HD3 boasts impressive resolution with four times the vertical accuracy with a 14-bit ADC and half the noise floor. Paired with our fast, uncompromised waveform update rate and twenty-five times more memory, the HD3 Series can capture small signals with high vertical resolution.See What You’ve Been Missing with Portable PrecisionMeet the new generation of Keysight InfiniiVision oscilloscopes, the HD3 Series. The HD3 was created with high-performance technology leveraged from our high-speed UXR Series oscilloscopes, now making precision available in a much more portable form factor. With the all-new architecture of the HD3 (including a custom 14-bit ADC and low noise front end), you can analyze all signals in your design with high vertical accuracy. This ensures you make the most accurate measurements possible and have the most realistic view into the signals inside your device. You can achieve even greater accuracy (5x better) with up to 16 bits of resolution using the built-in per channel bandwidth filters. Need to use the full bandwidth to 1 GHz? You will still get extremely high accuracy at the full bandwidth, with the ability to zoom to 500 uV/div.See What You’ve Been Missing with Custom TechnologyThe HD3 Series uses custom components optimized specifically for oscilloscope measurements. Keysight’s R&D team designed a brand-new 14-bit ADC, an all-new ASIC, other support components, and an entirely new architecture for the signal to flow through. Because Keysight designs these components rather than using off-the-shelf components, our hardware works much faster and more efficiently since it is designed specifically for oscilloscopes. Part of this new architecture also includes deep memory with dedicated memory chips for every channel (100 Mpts). This means there is no interleaving between channels. You can have all four channels turned on and still get the maximum memory and sample rate on every channel. Our new custom ASIC (MegaZoom 5) enables the HD3 to have hardware-based functions such as zone trigger, serial decoding, and mask testing. Custom hardware also makes it possible for us to create new custom software, such as the Fault Hunter software application. Simply run Fault Hunter and detect any glitches or errors on your signal.See What You’ve Been Missing with Versatile FunctionalityDive deeper than ever before with more flexibility in the InfiniiVision user interface. Not only did we leverage the hardware from our high-performance oscilloscopes, but we also took some of the more advanced user interface capabilities and added them to the new InfiniiVision user interface. With more menus and user customization, you can set up the scope to be customized to your exact testing requirements. The custom grid display, favorites bar, and automatic actions make it even easier to dive deep into your characterization and view results quickly. All models can be upgraded in bandwidth or memory using immediate license upgrades. There are no returns to factory required for any upgrades. All models are also already equipped with these standard functions that typically cost thousands of dollars:• Frequency response analysis• Fault Hunter• Zone trigger• Segmented memory• MSO• Mask testing• Histograms• FFT, and more

KEYSIGHT - HD304MSO- Oscilloscope, 4 Channels, 200 MHz, 14Bit, 20Mpts/Ch.The HD3 Series brings Keysight’s industry-leading capabilities from high-performance oscilloscopes to the high-volume level, making precision portable from 200 MHz to 1 GHz. Leveraging custom hardware technology from the UXR Series, the HD3 boasts impressive resolution with four times the vertical accuracy with a 14-bit ADC and half the noise floor. Paired with our fast, uncompromised waveform update rate and twenty-five times more memory, the HD3 Series can capture small signals with high vertical resolution.See What You’ve Been Missing with Portable Precision Meet the new generation of Keysight InfiniiVision oscilloscopes, the HD3 Series. The HD3 was created with high-performance technology leveraged from our high-speed UXR Series oscilloscopes, now making precision available in a much more portable form factor. With the all-new architecture of the HD3 (including a custom 14-bit ADC and low noise front end), you can analyze all signals in your design with high vertical accuracy. This ensures you make the most accurate measurements possible and have the most realistic view into the signals inside your device. You can achieve even greater accuracy (5x better) with up to 16 bits of resolution using the built-in perchannel bandwidth filters. Need to use the full bandwidth to 1 GHz? You will still get extremely high accuracy at the full bandwidth, with the ability to zoom to 500 uV/div. See What You’ve Been Missing with Custom Technology The HD3 Series uses custom components optimized specifically for oscilloscope measurements. Keysight’s R&D team designed a brand-new 14-bit ADC, an all-new ASIC, other support components, and an entirely new architecture for the signal to flow through. Because Keysight designs these components rather than using off-the-shelf components, our hardware works much faster and more efficiently since it is designed specifically for oscilloscopes. Part of this new architecture also includes deep memory with dedicated memory chips for every channel (100 Mpts). This means there is no interleaving between channels. You can have all four channels turned on and still get the maximum memory and sample rate on every channel. Our new custom ASIC (MegaZoom 5) enables the HD3 to have hardware-based functions such as zone trigger, serial decoding, and mask testing. Custom hardware also makes it possible for us to create new custom software, such as the Fault Hunter software application. Simply run Fault Hunter and detect any glitches or errors on your signal. See What You’ve Been Missing with Versatile Functionality Dive deeper than ever before with more flexibility in the InfiniiVision user interface. Not only did we leverage the hardware from our high-performance oscilloscopes, but we also took some of the more advanced user interface capabilities and added them to the new InfiniiVision user interface. With more menus and user customization, you can set up the scope to be customized to your exact testing requirements. The custom grid display, favorites bar, and automatic actions make it even easier to dive deep into your characterization and view results quickly. All models can be upgraded in bandwidth or memory using immediate license upgrades. There are no returns to factory required for any upgrades. All models are also already equipped with these standard functions that typically cost thousands of dollars: • Frequency response analysis • Fault Hunter • Zone trigger • Segmented memory • MSO • Mask testing • Histograms • FFT, and more

Keysight N1913B - Highlights Frequency range of DC to 120 GHz (sensor dependent) Wide dynamic range of -70 to +44 dBm (sensor dependent) Go beyond GPIB with LAN LXI-C and USB connectivity Backward compatible with N1913/14A EPM Series single/dual-channel average power meters Increased measurement channels: up to three channels with two additional U2000/U8480 Series and U2050/60 (except the peak power measurement) X-Series USB power sensors connected using the optional USB hosts Automated frequency/power sweep measurements with the optional external trigger in/out feature BenchVue software license (BV0007B) is included, which makes it simple to connect, control instruments, and automate test sequences

KEYSIGHT - N2790AKey features:- User-selectable attenuation settings of 50:1 or 500:1- Rated to measure differential voltage up to 1,400 VDC + peak AC with high CMRR of >50 dB at 1 MHz. - Overrange indicator which alerts the user when the probe input exceeds the dynamic range of the probe- AutoProbe interface Included accessories: - Two browser tips - Two retractable hook tips - Two alligator clips Compatible oscilloscopes: - Keysight InfiniiVision 3000 X-Series, 4000 X-Series - Keysight InfiniiVision 5000, 6000 (except for 100 MHz) and 7000 Series with software V. 5.26.0001 or higher - Keysight Infiniium S-Series - Keysight Infiniium V-Series, Z-Series, 90000 X-Series, and 90000 Q-Series with N5449A adapter - Keysight Infiniium 8000 and 54830 Series with software version 5.7 - Keysight 9000 Series with software version 2.0 Use the N2790A 100-MHz high-voltage differential probe to make safe and accurate floating measurements with an oscilloscope. The N2790A probe allows conventional earth-grounded Keysight oscilloscopes to be used for floating signal measurements of up to 1,400 V of differential voltage and 1,000 V of common mode voltage.Thanks to its high bandwidth and excellent input-impedance characteristics, the probe can accurately measure up to 3.5 nsec of fast transient edges in modern switching power supplies. The probe is compatible with Keysight’s AutoProbe interface with 1 Mohm input where the probe’s power is supplied by the Keysight oscilloscope’s probe interface. When probing differential signals inside of environmental chambers at extreme temperatures, Keysight offers the N7013A extreme temperature extension kit. The N7014A is compatible with the N2790A with a de-rated bandwidth of 70 MHz. The 70 cm long differential cable set and accessories can operate in temperatures ranging from -40 degrees to +85 degree Celsius.

KEYSIGHT - N3304A - Single-slot DC electronic load module, 60 V, 60 A, 300 WThe Keysight N3304A is a 300 W (0−60 A, 0−60 V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications.The N3300 Series supports up to six channels, each with a unique maximum voltage and current. They allow the design of a flexible automated test equipment (ATE) system to verify many types of power supplies, DC-to-DC converters, and batteries. Add additional modules to test multiple power sources simultaneously. Each module includes a 16-bit voltage, current, and power measurement system.Key features:- Choice of half-rack width or full-rack width mainframe- Constant current, constant voltage, and constant resistance modes- Built-in transient generator- 16-bit voltage and current measurements captured simultaneously- Stable operation down to 0 V- Modular design for system flexibility- Fast command processing and settling times- Available interfaces: analog, RS232, and GPIB

KEYSIGHT - N5171B-503  - EXG X-Series RF Analog Signal Generator, 9 kHz to 3 GHz The Keysight N5171B EXG X-Series RF analog mid-performance signal generator offer 9 kHz to 6 GHz frequency coverage, optimized for manufacturing with faster throughput and greater uptime at the right price. N5171B EXG X-Series Analog Signal Generator allows to:- Achieve faster throughput and greater uptime with the cost-effective performance optimized for manufacturing test- Perform basic parametric testing of components and functional verification of receivers with industry-leading output power- Thoroughly verify receiver performance by simulating complex analog modulation scenarios with multi-function generator capability- Minimize downtime and expenses with self-maintenance solutions and low-cost repairs.

KEYSIGHT - N6700CPower supplies and electronic loads are a fundamental component of every test system in industries including aerospace and defense, consumer electronics, computers and peripherals, communications, semiconductor and automotive electronics. Today’s complex automatic test equipment (ATE) systems often require multiple power sources or electronic loads. Test system designers are challenged to keep costs down by reducing rack space occupied by these multiple power supplies or electronic loads and to continually increase test system throughput. The Keysight Technologies, Inc. N6700 Low-Profile Modular Power System (MPS) is a 1U (rack unit) high, multiple-output programmable DC power supply or electronic load system that enables test system integrators to optimize performance, power and price to match test needs.Key features:• 400 W mainframe• Modular solution with 1U low-profile• Up to four outputs per mainframe• Mix and match module power and performance levels• Choose modules from three levels of performance• Sink current with DC electronic load modules• Fast command processing and settling times• Interfaces available — LAN (LXI Core), USB, GPIB

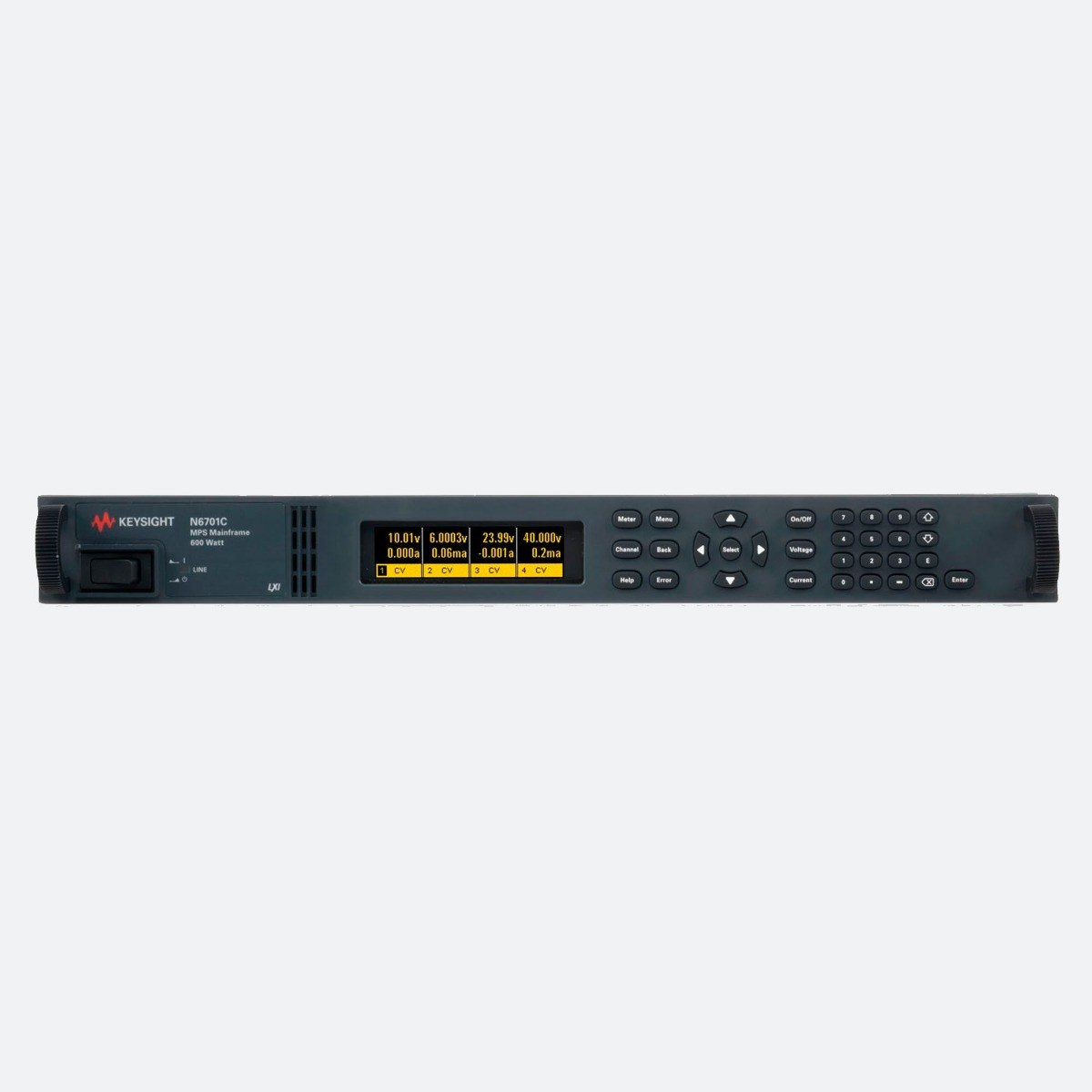

KEYSIGHT - N6701CAutomated test equipment (ATE) systems often require more than one power source. The Keysight N6700 Series provides up to four outputs per mainframe. An independent module is the source for each output, allowing for the customization of voltage, current, and performance. DC electronic load modules are also available, allowing testing of power sources in the same 1U high mainframe.Key features:600 W mainframe; Modular solution with 1U low-profile; Up to four outputs per mainframe; Mix and match module power and performance levels; Choose modules from three levels of performance; Sink current with DC electronic load modules; Fast command processing and settling times; Interfaces available — LAN (LXI Core), USB, GPIB.

KEYSIGHT - N6700CPower supplies and electronic loads are a fundamental component of every test system in industries including aerospace and defense, consumer electronics, computers and peripherals, communications, semiconductor and automotive electronics. Today’s complex automatic test equipment (ATE) systems often require multiple power sources or electronic loads. Test system designers are challenged to keep costs down by reducing rack space occupied by these multiple power supplies or electronic loads and to continually increase test system throughput. The Keysight Technologies, Inc. N6700 Low-Profile Modular Power System (MPS) is a 1U (rack unit) high, multiple-output programmable DC power supply or electronic load system that enables test system integrators to optimize performance, power and price to match test needs.Key features:• 400 W mainframe• Modular solution with 1U low-profile• Up to four outputs per mainframe• Mix and match module power and performance levels• Choose modules from three levels of performance• Sink current with DC electronic load modules• Fast command processing and settling times• Interfaces available — LAN (LXI Core), USB, GPIB

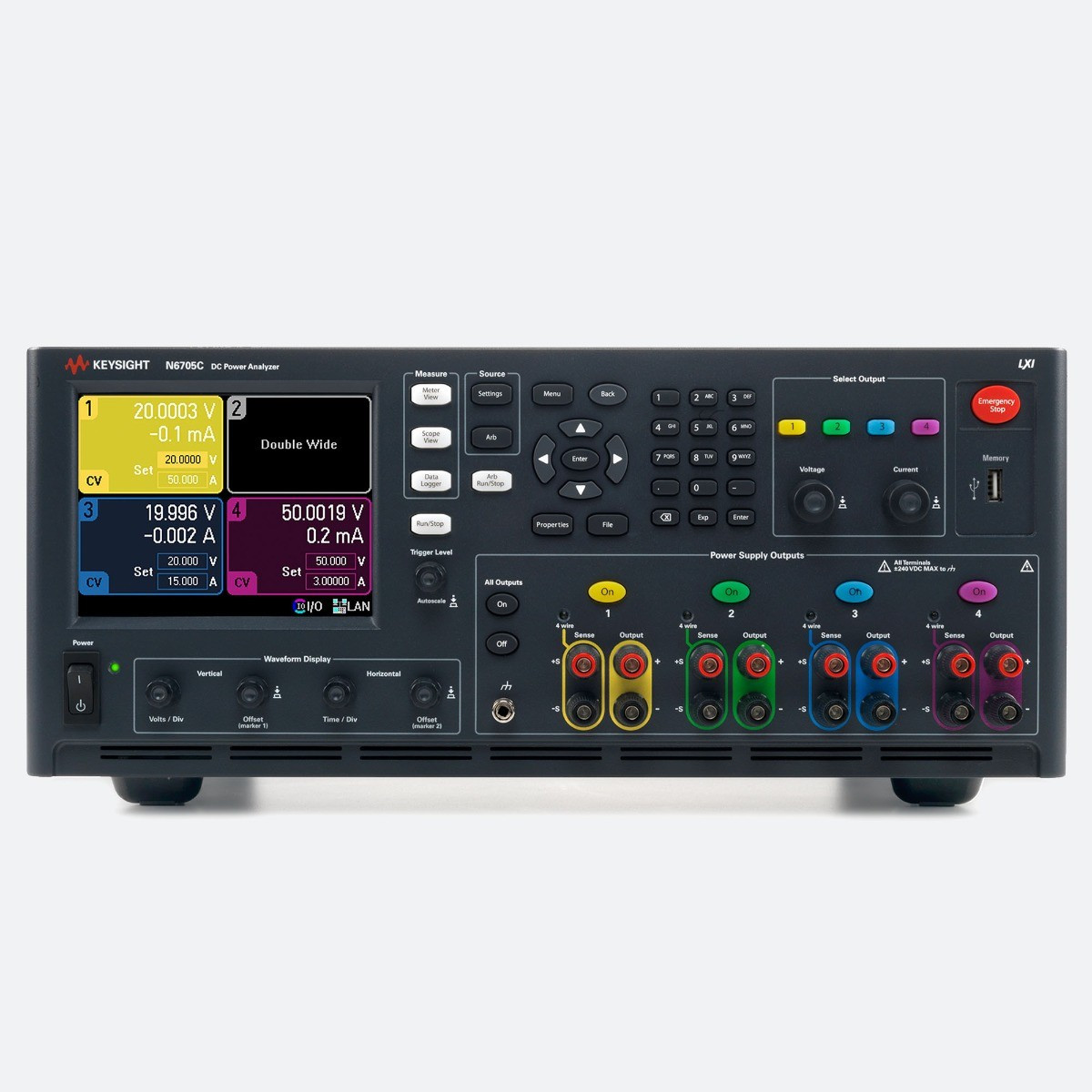

KEYSIGHT - N6705C The Keysight Technologies, Inc. N6705 DC Power Analyzer represents an entirely new instrument category for R&D engineers. It provides unrivaled productivity gains when sourcing or loading and measuring DC voltage and current into a DUT. Using the Keysight N6705 DC Power Analyzer, R&D engineers can gain insights into the DUT’s power consumption in minutes without writing a single line of code. It provides an easy-to-use interface, with all sourcing or loading and measuring functions available from the front panel. Key features: • Number of Outputs: up to 4• Total Power: 400 to 1200 W• Ripple and Noise: < 350 µVrms Accuracy:• Ampmeter accuracy: Up to 0.025% + 8 nA; up to 18 bits• Voltmeter accuracy: Up to 0.025% + 50 µV; up to 18 bits• Arbitrary waveform generator function: Bandwidth up to 100 kHz, output power up to 500 W• Data logger function: Measurement interval from 20 µs to 60 seconds, with a maximum of 500 M readings per second• Scope function: Digitizes voltage and current up to 200 kHz, 512 kpts; up to 18 bits• Modern Connectivity: USB, LAN, and GPIB

KEYSIGH - N6752AThe Keysight N6752A is a 100 W high-performance, autoranging DC power module that provides low noise, high accuracy and programming speeds that are up to 10 to 50 times faster than other programmable power supplies. Optional high-speed test extension offers an oscilloscope-like digitizer that increases measurement accuracy when viewing high-speed transient or pulse events within the device-under-test (DUT).This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 30 different DC power modules, ranging in capability from basic to high precision, and in power from 20−500 W.Key features> For use with the N6700 Series mainframes (USB, LAN (LXI-C), GPIB): Low profile MPS or DC Power Analyzer> DC output ratings: 50 V, 10 A, 100 W> Voltage accuracy: 0.06% + 19 mV> Ripple and noise: 4.5 mV> Up and down-programming with resistive load typically 20 ms> Overvoltage, overcurrent, and overtemperature protection> Basic modules are single wide allowing four per mainframe> Modules can operate at lower output power to stay within mainframe rating> Modules include a quick disconnect connector

KEYSIGH - N6762A The Keysight N6762A is a 100 W precision DC power module that provides low noise, and precise control and measurements in the milliampere and microampere region with the ability to simultaneously digitize voltage and current, and capture those measurements in an oscilloscope-like data buffer. For leakage current or sleep-mode current measurements, add option 2UA for measurement capability down to 1 μA.This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 30 different DC power modules, ranging in capability from basic to high precision, and in power from 20−500 W.Key features> For use with the N6700 Series mainframes (USB, LAN (LXI-C), GPIB): Low profile MPS or DC Power Analyzer> DC output ratings: 50 V, 3 A, 100 W> Voltage accuracy: 0.016% + 6 mV> Ripple and noise: 4.5 mV> Up and down-programming with resistive load typically 20 ms> Overvoltage, overcurrent, and overtemperature protection> Basic modules are single wide allowing four per mainframe> Modules can operate at lower output power to stay within mainframe rating> Modules include a quick disconnect connector

KEYSIGH - N6774A The Keysight N6774A is a 300 W basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 30 different DC power modules, ranging in capability from basic to high precision, and in power from 20−500 W.Key features> For use with the N6700 Series mainframes (USB, LAN (LXI-C), GPIB): Low profile MPS or DC Power Analyzer> DC output ratings: 35 V, 8.5 A, 300 W> Voltage accuracy: 0.1% + 35 mV> Ripple and noise: 22 mV> Up and down-programming with resistive load typically 20 ms> Overvoltage, overcurrent, and overtemperature protection> Basic modules are single wide allowing four per mainframe> Modules can operate at lower output power to stay within mainframe rating> Modules include a quick disconnect connector
