GW Instek - GCP-1000 GCP-1000 is current probe DC - 1MHz / DC : 70A / AC : 50ArmsThe GCP-300, GCP-500 and GCP-1000 are designed to measure AC and DC current.
The test frequency range of GCP-300 is from DC to 300kHz; GCP-500 is from DC to
500kHz and GCP-1000 is from DC to 1MHz. For the current measure range of GCP-300
is from 50mA to 200A; GCP-500 is from 30mA to 150A and GCP-1000 is from 20mA to
70A. (Do not clamp the probe onto circuits with voltages greater than 600 VAC)
The current probe is equipped with an AC power converter and designed to give priority
to the external power supply. If there is no 9V alkaline battery or the power is insufficient,
the AC power converter can be used to provide power so that the measurement will not
affected.

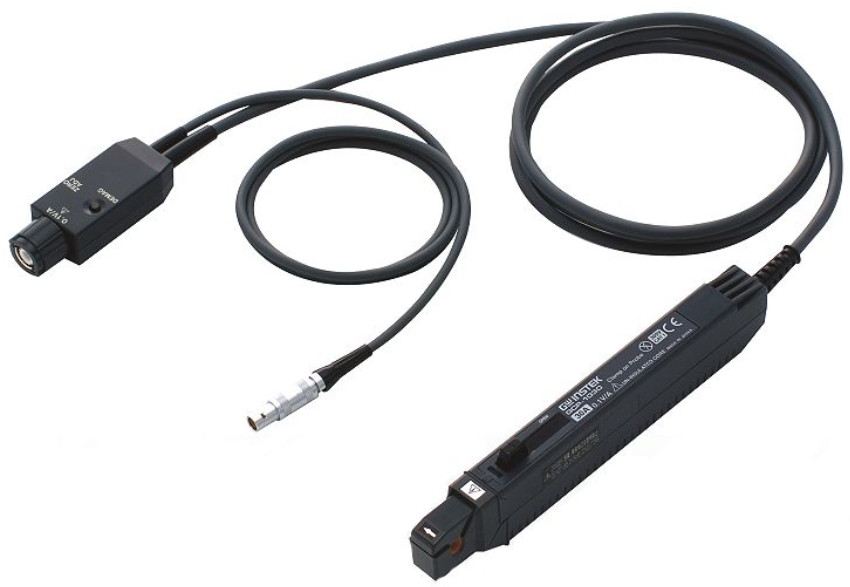

GW Instek - GCP-1030 Current Probe, DC ~ 100MHz, 30Arms100MHz AC/DC Current MeasurementFor easily observing current waveforms under a wide bandwidth and with high
sensitivity, the GCP-530 and GCP-1030 clamp on current probes only need to be
connected to the BNC input of a data logger or oscilloscope and clamped onto
a conductor to start measurement. Bandwidths : DC~50 MHz High S/N Ratio : Ideal for Measuring mA
Signals (GCP-530)
High Bandwidth, from DC ~ 100 MHz
(GCP-1030)
DC and AC Measurements
Better than 1% Accuracy
Direct Connection to High-impedance
1 M BNC Oscilloscope Inputs
Demagnetize Switch : Demagnetizes the
Core to Remove any Residual MagnetismSimple Overload Protector Prevents
Damage Due to Overheating
The split core construction allows the probe to
easily clip on to a conductor without breaking the conductor.
Wide Range of ApplicationsWith a flat frequency response, low noise and low insertion loss, the GCP-530 and
GCP-1030 clamp-on probes are ideal for measuring steady state or transient current
in amplifiers, inverters, electric motors, switching power supplies, controllers,
sensors, LCD displays and electronic ballasts. For low current measurements, the
high signal-to-noise ratio also makes the GCP-530 and GCP-1030 current probes
ideal solutions.

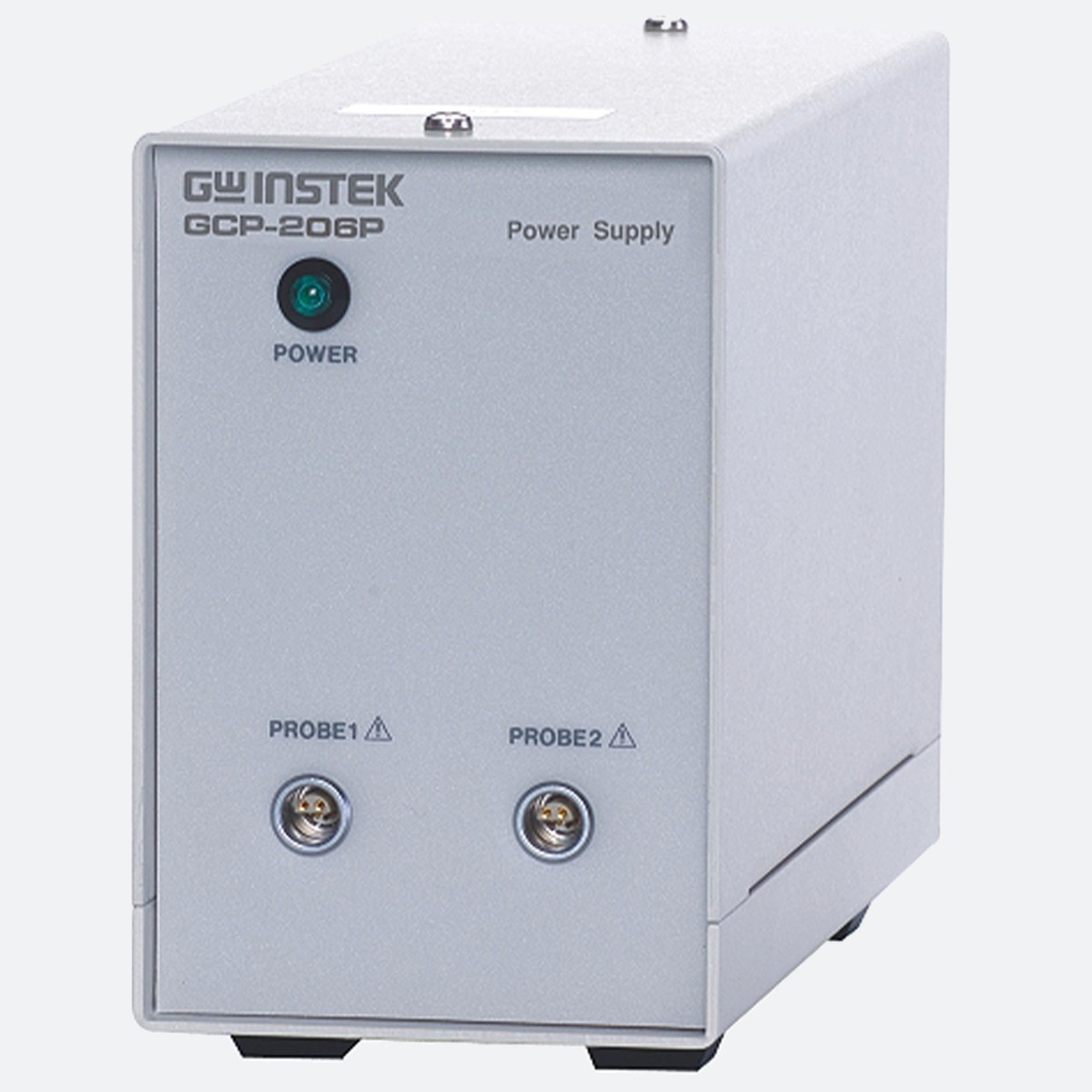

GW Instek - GCP-206P Current Probe - Power Supply, 2 Channel Power Supply for GCP-530/1030
2 Channel Current Probe
Power Supplies Designed for the GCP-530
and GCP-1030 Clamp Probes.The Power
Supplies are Ideal for when Power is not available from an Oscilloscope or for
General Current Measurement
Applications

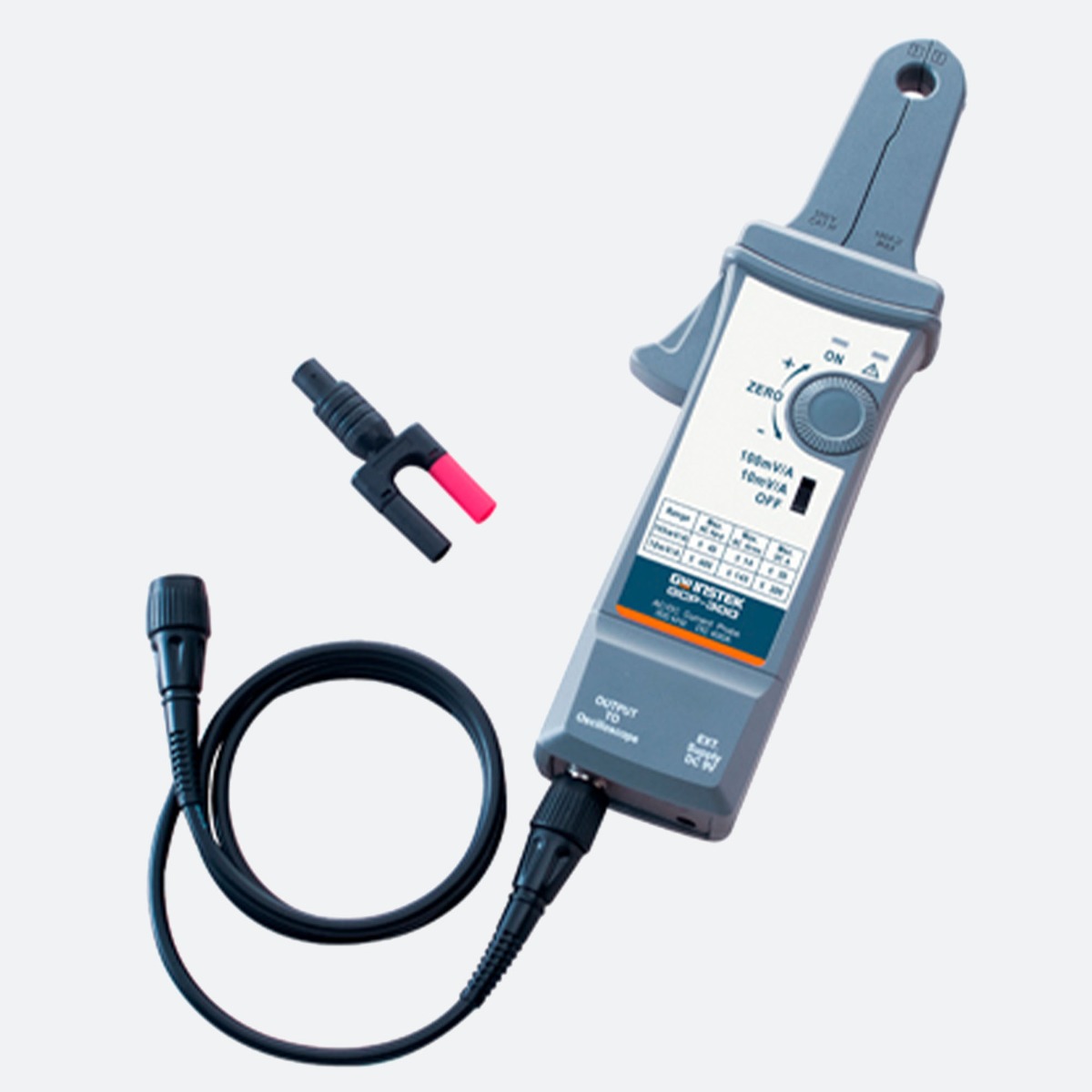

GW Instek - GCP-300 GCP-300 is current probe DC - 300kHz / DC : 200A / AC : 140ArmsThe GCP-300, GCP-500 and GCP-1000 are designed to measure AC and DC current.
The test frequency range of GCP-300 is from DC to 300kHz; GCP-500 is from DC to
500kHz and GCP-1000 is from DC to 1MHz. For the current measure range of GCP-300
is from 50mA to 200A; GCP-500 is from 30mA to 150A and GCP-1000 is from 20mA to
70A. (Do not clamp the probe onto circuits with voltages greater than 600 VAC)
The current probe is equipped with an AC power converter and designed to give priority
to the external power supply. If there is no 9V alkaline battery or the power is insufficient,
the AC power converter can be used to provide power so that the measurement will not
affected.
GW Instek - GCP-500 GCP-500 is current probe DC - 500kHz / DC : 150A / AC : 100ArmsThe GCP-300, GCP-500 and GCP-1000 are designed to measure AC and DC current.
The test frequency range of GCP-300 is from DC to 300kHz; GCP-500 is from DC to
500kHz and GCP-1000 is from DC to 1MHz. For the current measure range of GCP-300
is from 50mA to 200A; GCP-500 is from 30mA to 150A and GCP-1000 is from 20mA to
70A. (Do not clamp the probe onto circuits with voltages greater than 600 VAC)
The current probe is equipped with an AC power converter and designed to give priority
to the external power supply. If there is no 9V alkaline battery or the power is insufficient,
the AC power converter can be used to provide power so that the measurement will not
affected.
GW Instek - GCP-530 Current Probe, DC ~ 50MHz, 30Arms50MHz AC/DC Current MeasurementFor easily observing current waveforms under a wide bandwidth and with high
sensitivity, the GCP-530 and GCP-1030 clamp on current probes only need to be
connected to the BNC input of a data logger or oscilloscope and clamped onto
a conductor to start measurement. Bandwidths : DC~50 MHz High S/N Ratio : Ideal for Measuring mA
Signals (GCP-530)
High Bandwidth, from DC ~ 100 MHz
(GCP-1030)
DC and AC Measurements
Better than 1% Accuracy
Direct Connection to High-impedance
1 M BNC Oscilloscope Inputs
Demagnetize Switch : Demagnetizes the
Core to Remove any Residual MagnetismSimple Overload Protector Prevents
Damage Due to Overheating
The split core construction allows the probe to
easily clip on to a conductor without breaking the conductor.
Wide Range of ApplicationsWith a flat frequency response, low noise and low insertion loss, the GCP-530 and
GCP-1030 clamp-on probes are ideal for measuring steady state or transient current
in amplifiers, inverters, electric motors, switching power supplies, controllers,
sensors, LCD displays and electronic ballasts. For low current measurements, the
high signal-to-noise ratio also makes the GCP-530 and GCP-1030 current probes
ideal solutions.
GW INSTEK - GDP-025 - 25MHz High Voltage Differential Probe.25MHz High Voltage Differential Probe. For use with following GW Instek oscilloscopes: GDS-3000 Series, MSO-2000E Series, MDO-2000E Series, GDS-2000A/E Series, GDS-1000B Series.
GDP-025 Probe provides 25 MHz bandwidth, enabling users to safely make high-voltage measurements on floating circuit test. It converts floating signals to low-voltage ground-referenced signals that can be displayed safely on any ground-referenced oscilloscope.
GDP-025 Differential Probe offers user-selectable attenuation settings that make it highly versatile, allowing it to be used for a broad range of applications. The probe comes with probe tip accessories for use with both small or large components in tight places. GDP-025 also provides over-range indicator which alerts the user when the probe input exceeds the dynamic range of the probe.Features include:- 25 MHz Bandwidth- Up to 1400 V differential voltage- Flexible attenuation option, suitable for various applications- Separation design, users can easily replace the probe connector to complete variety of test applications.
GW INSTEK - GDP-050 - 50MHz High Voltage Differential Probe.50MHz High Voltage Differential Probe. For use with following GW Instek oscilloscopes: GDS-3000 Series, MSO-2000E Series, MDO-2000E Series, GDS-2000A/E Series, GDS-1000B Series.
GDP-025 Probe provides 25 MHz bandwidth, enabling users to safely make high-voltage measurements on floating circuit test. It converts floating signals to low-voltage ground-referenced signals that can be displayed safely on any ground-referenced oscilloscope.
GDP-050 Differential Probe offers user-selectable attenuation settings that make it highly versatile, allowing it to be used for a broad range of applications. The probe comes with probe tip accessories for use with both small or large components in tight places. GDP-050 also provides over-range indicator which alerts the user when the probe input exceeds the dynamic range of the probe.Features include:- 50 MHz Bandwidth- Up to 7000 V differential voltage- Flexible attenuation option, suitable for various applications- Separation design, users can easily replace the probe connector to complete variety of test applications.
GW INSTEK - GDP-100 - 100MHz High Voltage Differential Probe.100MHz High Voltage Differential Probe. For use with following GW Instek oscilloscopes: GDS-3000 Series, MSO-2000E Series, MDO-2000E Series, GDS-2000A/E Series, GDS-1000B Series.
GDP-025 Probe provides 25 MHz bandwidth, enabling users to safely make high-voltage measurements on floating circuit test. It converts floating signals to low-voltage ground-referenced signals that can be displayed safely on any ground-referenced oscilloscope.
GDP-100 Differential Probe offers user-selectable attenuation settings that make it highly versatile, allowing it to be used for a broad range of applications. The probe comes with probe tip accessories for use with both small or large components in tight places. GDP-100 also provides over-range indicator which alerts the user when the probe input exceeds the dynamic range of the probe.Features include:- 100 MHz Bandwidth- Up to 7000 V differential voltage- Flexible attenuation option, suitable for various applications- Separation design, users can easily replace the probe connector to complete variety of test applications.
GRA-417Rack Mount Kit, 19", 4U Size.Key features:Rack Adapter Panel19" Rack Using4U SizeSuitable for use with: GCT-9040 GPT-9600 Series GPT-9800 Series GPT-9901A/9902A/9903A
ITECH - IT-E121 -IT-E121 Communication InterfaceRS-232 Communication interface with RS232 standard communication cable.Models of application: IT6100, IT6800, IT6322, IT6302, IT8500, IT8500+
ITECH - IT-E151A
- 19" rack mount kit for 1 * 2U and 2 * 2U side by side
Most ITECH loads (Series IT8900/IT8500 (power below 1800W)/IT8811/IT8812) and power supplies (Series IT6800, IT6900, IT6322, IT6120, IT6150, IT6400, IT6700H (except IT6726)) are compatible with a standard 19-inch cabinet.
