Power Supplies

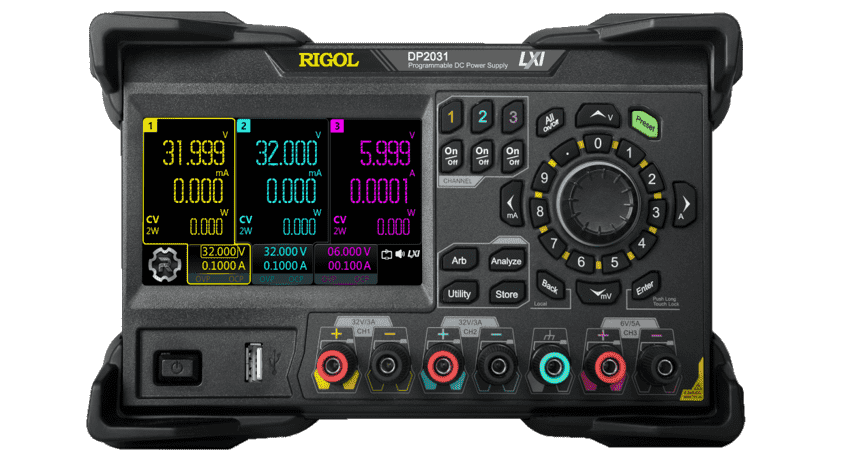

DP2031
RIGOL - DP2031 - DC Power Supply, 3 Ch., +32 V / 3 A, +32 V / 3 A, +6 V / 5 A, DC, max 222 W). DC Power Supply with 3 independent output channels (+32 V / 3 A, +32 V / 3 A, +6 V / 5 A, DC, max 222 W). 4.3-inch LCD color touch screen. High resolution for measurement of 1 ?A low range current. Low output ripple and noise <350 ?Vrms/2 mVpp. USB HOST, LAN, Digital I/O, and RS232 (standard)
IT6332A
ITECH - IT6332A - IT6332A High Performance Triple Channels DC Power Supply 2 x 30V/6A/180W + 5V/3A/15W (RS232/USB)IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be set from 0 to maximum rated output. This series supports series connection, parallel connection and track mode, which offer multi-purpose solutions for customers test. IT6300 series is with high resolution 1mV / 1mA and remote sense function, which make the test more accurate. With built-in standard USB / RS232 / GPIB communication interface, IT6300 series greatly enhance the communication speed, and customers also can adjust the digital step value by using the cursor to facilitate the operation.Key features:- Triple adjustable voltage output, isolated 3 channels- Serial/ Parallel/ Track mode- Display voltage and current measurements continuously from all three outputs- Small size of 1/2 2U VFD display- Panel function keys with backlight display- Adjust the digital step value via cursor- Output switch control- High accuracy, high resolution and high stability- Remote measurement function, compensation online voltage drop- Comprehensive protection functions- Intelligent fan control to reduce noise- Multi interfaces for choosing, such as USB/GPIB/RS232/LAN * — Check Manual for details
EDU36311A
KEYSIGHT - EDU36311AThe Keysight EDU36311A triple-output DC bench power supply comes with a robust design and usability at an affordable price. Its 90 W, electrically isolated channels supply clean and reliable power. The signature 7-inch wide video graphics array (WVGA) gives you clear view, from instrument set up to the output status. You can easily control the EDU36311A triple output DC bench power supply remotely via USB or LAN. This solution includes Keysight’s PathWave BenchVue power supply software for the PC.Key features:Clean, reliable power• low output ripple and noise• excellent programming / readback accuracy• exceptional line / load regulation• superior over-voltage, over-current, and over-temperature protectionConvenient benchtop capabilities• independent power supplies (three) in one box• low acoustic noiseIntuitive and easy-to-use interfaces• signature 7-inch color display• distinctive color-coded channels• individual knobs for voltage and current• flexible connection using LAN (LXI) or USB
GPS-3030DD
GW INSTEK - GPS-3030DDLinear Power Supply GPS-3030DD, 30V / 3A / 90W, Dual Display for U and IThe GPS-Series is single output, 54 to 90W, linear DC power supplies. The GPS-Series includes both analog and digital display meters with varying power outputs. The GPS-Series features Overload and reverse polarity protection as well as high regulation and low ripple / noise that are maintained at 0.01% and < 1mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.Features- Light and Compact Design- 0.01% High Regulation- Constant Voltage and Constant Current Operation- Remote Control for External Programmability Internal Select for Continuous or Dynamic- Load Low Ripple and Noise Overload and Reverse Polarity Protection Series or Parallel Operation- Optional European Type Jack Terminal for GPS-3030/GPS-3030D/GPS-3030DD
E36233A
KEYSIGHT E36233AThe Power Supply E36233A from Keysight with automatic range selection is the ideal selection for applications where a higher power is required. The two independent 200 W outputs of a dual channel unit can supply up to 400 W. The automatic range selection makes the Power Supply delivering the maximum current at all different voltages. Automatic serial- and parallel-circuit at 2 channel models offer max. voltage or max. current up to a power of 400 W.Key features> Dual Output: 30 V, 20 A, 400 W> Auto-parallel outputs for higher current up to 40 A.> Autoranging power supply that produce more current at all voltages levels> Control inrush current with the variable slew rate> Acquire device protection by using overvoltage, overcurrent, and overtemperature provide device protection> Benefit from <350 µVrms for low ripple and noise output> Improve load regulation with a four-wire sense> Measure power over time with a built-in data logger> Simplify USB, LAN (LXI Core), and optional GPIB connectivity
E36234A
KEYSIGHT E36234AThe Power Supply E36233A from Keysight with automatic range selection is the ideal selection for applications where a higher power is required. The two independent 200 W outputs of a dual channel unit can supply up to 400 W. The automatic range selection makes the Power Supply delivering the maximum current at all different voltages. Automatic serial- and parallel-circuit at 2 channel models offer max. voltage or max. current up to a power of 400 W.Key features> Dual Output: 60 V, 10 A, 400 W> Auto-series combined outputs for higher voltage up to 120 V.> Autoranging power supply that produce more current at all voltages levels> Control inrush current with the variable slew rate> Acquire device protection by using overvoltage, overcurrent, and overtemperature provide device protection> Benefit from <350 µVrms for low ripple and noise output> Improve load regulation with a four-wire sense> Measure power over time with a built-in data logger> Simplify USB, LAN (LXI Core), and optional GPIB connectivity
IT6151
ITECH - IT6151 - IT6151 Programmable Linear DC Power Supply 5.2V / 60A / 312W IT6100 series power supply is designed to meet the test requirements that general supplies can not achieve. High-speed and high-precision features make production line capacity greatly improved, different from the conventional high speed power supply, IT6100 ensures low ripple and noise while meeting the high speed requirements.Key features:• Linear programmable power supply• High-light VFD display• Lower ripple and lower noise• Built-in 5 1/2 digital voltmeter• Support SCPI communication protocol• Optional GPIB/USB/RS232 interfaces• High accuracy and high resolution• PC monitoring software • List mode operation, change output voltage and current quickly• Suitable for 19" standard rack installation Consult the datasheet for a complete list of functions and features.
IT6152
ITECH - IT6152 - IT6153 Programmable Linear DC Power Supply 30V / 18A / 540WThe IT6100 series guarantees accurate measurements with 0.1 mV / 0.1 mA high resolution and high accuracy. With high-speed List mode it generates voltage waveforms to meet high-speed testing needs. The IT6100 series has a built-in 5½ digital voltmeter and milliohm meter, which can measure additional signals. The IT6100 series supports SCPI communication protocol, GPIB / USB / RS232 interfaces are optional and can be added with external adapters.Key features:- Linear programmable power supply- High-brightness VFD display- Low ripple and low noise- Built-in 5½ digital voltmeter- Supports SCPI communication protocol- Optional GPIB / USB / RS232 interfaces- High accuracy and high resolution- PC monitoring software- List mode operation, fast output voltage and current adjustment- Suitable for 19" standard rack installationConsult the datasheet for a complete list of functions and features.
IT6153
ITECH - IT6153 - IT6153 Programmable Linear DC Power Supply 30V / 18A / 540WIT6100 series power supply is designed to meet the test requirements that general supplies can not achieve. High-speed and high-precision features make production line capacity greatly improved, different from the conventional high speed power supply, IT6100 ensures low ripple and noise while meeting the high speed requirements.Key features: - Linear programmable power supply- High-light VFD display- Lower ripple and lower noise- Built-in 5 1/2 digital voltmeter- Support SCPI communication protocol- Optional GPIB/USB/RS232 interfaces- High accuracy and high resolution- PC monitoring software- List mode operation, change output voltage and current quickly- Suitable for 19" standard rack installationConsult the datasheet for a complete list of functions and features.
IT6154
ITECH - IT6154 - IT6154 Programmable Linear DC Power Supply 60V / 9A / 540WIT6100 series power supply is designed to meet the test requirements that general supplies can not achieve. High-speed and high-precision features make production line capacity greatly improved, different from the conventional high speed power supply, IT6100 ensures low ripple and noise while meeting the high speed requirements.Key features:- Linear programmable power supply- High-light VFD display- Lower ripple and lower noise- Built-in 5 1/2 digital voltmeter- Support SCPI communication protocol- Optional GPIB/USB/RS232 interfaces- High accuracy and high resolution- PC monitoring software- List mode operation, change output voltage and current quickly- Suitable for 19" standard rack installationConsult the datasheet for a complete list of functions and features.
IT6333B
ITECH - IT6333B - IT6333B High Performance Triple Channels DC Power Supply 2 x 60V/3A/180W + 5V/3A/15W (RS232/USB/GPIB)IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be set from 0 to maximum rated output. This series supports series connection, parallel connection and track mode, which offer multi-purpose solutions for customers test. IT6300 series is with high resolution 1mV / 1mA and remote sense function, which make the test more accurate. With built-in standard USB / RS232 / GPIB communication interface, IT6300 series greatly enhance the communication speed, and customers also can adjust the digital step value by using the cursor to facilitate the operation.Key features:- Triple adjustable voltage output, isolated 3 channels- Serial/ Parallel/ Track mode- Display voltage and current measurements continuously from all three outputs- Small size of 1/2 2U- VFD display- Panel function keys with backlight display- Adjust the digital step value via cursor- Output switch control- High accuracy, high resolution and high stability- Remote measurement function, compensation online voltage drop- Comprehensive protection functions- Intelligent fan control to reduce noise- Multi interfaces for choosing, such as USB/GPIB/RS232/LAN* Check Manual for details
IT6332C
ITECH - IT6332C- IT6332C High Performance Triple Channels DC Power Supply 2 x 30V/6A/180W + 5V/3A/15W (LAN/USB)IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be set from 0 to maximum rated output. This series supports series connection, parallel connection and track mode, which offer multi-purpose solutions for customers test. IT6300 series is with high resolution 1mV / 1mA and remote sense function, which make the test more accurate. With built-in standard USB / RS232 / GPIB communication interface, IT6300 series greatly enhance the communication speed, and customers also can adjust the digital step value by using the cursor to facilitate the operation.Key features:- Triple adjustable voltage output, isolated 3 channels- Serial/ Parallel/ Track mode- Display voltage and current measurements continuously from all three outputs- Small size of 1/2 2U- VFD display- Panel function keys with backlight display- Adjust the digital step value via cursor- Output switch control- High accuracy, high resolution and high stability- Remote measurement function, compensation online voltage drop- Comprehensive protection functions- Intelligent fan control to reduce noise- Multi interfaces for choosing, such as USB/GPIB/RS232/LAN* Check Manual for details
IT6333C
ITECH - IT6333C - IT6333C High Performance Triple Channels DC Power Supply 2 x 60V/3A/180W + 5V/3A/15W (LAN/USB)IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be set from 0 to maximum rated output. This series supports series connection, parallel connection and track mode, which offer multi-purpose solutions for customers test. IT6300 series is with high resolution 1mV / 1mA and remote sense function, which make the test more accurate. With built-in standard USB / RS232 / GPIB communication interface, IT6300 series greatly enhance the communication speed, and customers also can adjust the digital step value by using the cursor to facilitate the operation.Key features:- Triple adjustable voltage output, isolated 3 channels- Serial/ Parallel/ Track mode- Display voltage and current measurements continuously from all three outputs- Small size of 1/2 2U- VFD display- Panel function keys with backlight display- Adjust the digital step value via cursor- Output switch control- High accuracy, high resolution and high stability- Remote measurement function, compensation online voltage drop- Comprehensive protection functions- Intelligent fan control to reduce noise- Multi interfaces for choosing, such as USB/GPIB/RS232/LAN* Check Manual for details
IT6411
ITECH - IT6411 USED DEMO UNIT The ITech IT6411 is a unique bipolar voltage/current output that can be used as a bipolar current source or bipolar electronic load. The battery simulation function is particularly suitable for the development and high-speed testing of portable, battery-powered products.The IT6400 series has an ultra-fast transient response time of less than 50 μs and a resolution of up to 1 nA. The newly developed speed shift mode enables a rapid rise in voltage and current without overshoot, with a rise time of up to 150 μs. Meanwhile, the waveform display function makes testing visible and easy. The IT6400 series can be widely used for testing portable battery-powered products, mobile power supplies, LEDs, and other areas.Key Features- Single channel, two ranges: ±15 V, ±3 A or ±9 V, ±5 A, 45 W- Bipolar output with two measurement ranges- Precise battery simulation- Oscilloscope waveform display (DSO)- Built-in high-accuracy DVM- Variable output impedance- Applicable for testing portable battery power supplies- LED test (no current overshoot)- Relay output function for galvanic isolation of connections- High-speed AD sampling- List function for generating arbitrary voltage/current output waveforms- Standard LAN/USB interface
N6701C
KEYSIGHT - N6701CAutomated test equipment (ATE) systems often require more than one power source. The Keysight N6700 Series provides up to four outputs per mainframe. An independent module is the source for each output, allowing for the customization of voltage, current, and performance. DC electronic load modules are also available, allowing testing of power sources in the same 1U high mainframe.Key features:600 W mainframe; Modular solution with 1U low-profile; Up to four outputs per mainframe; Mix and match module power and performance levels; Choose modules from three levels of performance; Sink current with DC electronic load modules; Fast command processing and settling times; Interfaces available — LAN (LXI Core), USB, GPIB.
APS-7100E
GW INSTEK - APS-7100E - 1000VA Linear AC Power Source 1000VA, 310Vrms, 8.4ArmsGW Instek launches the APS-7000E Series the economy version of the APS-7000 Series programmable AC power source. With the height of 2U, the maximum rated output for APS-7050E is 500VA, 310Vrms, 4.2Arms and APS-7100E is 1000VA, 310Vrms, 8.4Arms. The output frequency range of the series is 45~500Hz. The series is ideal for the test and development of DC power supply devices, consumer electronics, automotive electronics and electronic components.The APS-7000E Series comprises six measurement and test functions (Vrms, Irms, F, Ipk, W, PF), and provides user interface similar to that of AC Power Meter. The APS7000E Series, via switching many sets of current levels to increase small current measurement resolution, is ideal for the LED industry and standby mode power consumption test. Ten sets of Preset allow users to store ten settings.To meet the test criteria of line voltage fluctuation often seen in consumer electronics, the APS-7000E Series not only provides a stable AC power source but also features the Test mode to satisfy special or abnormal voltage and frequency variation demands. Ten sets of the Test mode simulate power outage, voltage rise, and voltage fall. The APS7000E Series that simulates waveforms of city power grid s transient changes is suitable for verifying electronics products operated under abnormal power source.The APS-7000E Series is the economy version of the APS-7000 Series. If communications interface and larger voltage/frequency are required, please refer to the APS-7000 Series. Key features:- 4.3” large LCD Display- Output Capacity: - APS-7050E(500VA, 310Vrms, 4.2/2.1Arms) - APS-7100E(1000VA, 310Vrms, 8.4/4.2Arms)- Measurement Function: Voltage, Current, Power, Frequency, Power Factor, Ipeak - Reverse Current Alarm Function- 10 Sets of The Test Mode Simulate Power Transient Output- 10 Sets of Preset Allow Users to Store Ten Settings- OCP/OPP/OTP Protection- Variable Voltage, Frequency and Current Limiter- Universal Power Inlet
APS-7100
GWInstek - APS-7100 -APS-7100 AC Power Source 310Vrms / 8.4Arms / 1000VA / 45~999.9Hz, with universal socket GWInstek introduces APS-7000 series programmable AC power sources, which consists of 500VA of APS-7050, 1000VA of APS-7100, 2000VA of APS-7200 and 3000VA of APS-7300. APS-7000 series features power characteristics from its linear structure design including low noise, low THD, and highly stabilized power output that are ideal for the product development and verification of input power with low noise requirement or stereo, video and audio device applications, etc. The maximum rated voltage is 0~ 310Vrms, 25.2Arms, 100.8A peak current and the output frequency range is 45~500.0Hz. Users can conveniently augment the output voltage from 0Vrms to 600Vrms and output frequency from 45Hz to 999.9Hz by purchasing options without sending equipment back to GW Instek. One of the popular alternative energy solutions in the market is to utilize inverter to convert DC to AC and the converted AC is then sent to power grid or products require electricity. For instance, AC produced by PV inverter is sent to power grid or equipment requires electricity. While simulating power grid to verify inverter connecting with power grid, general AC power sources cannot withstand DUT's feedback energy, hence, additional power consumption resistors are needed to prevent AC power source from being damaged. On the contrary, APS-7000 series has the characteristic of absorbing reverse current so that additional power consumption resistors are not required. The input terminal of APS-7000 series is designed to isolate from the simulated AC power grid output terminal, therefore, users do not need an additional isolation device to protect DUT. APS-7000 series is suitable for simulating power grid and conducting inverter output characteristic tests, including synchronized phase and frequency. Reverse current and power detected by APS-7000 series will be displayed in red readings to facilitate user's test observation. APS-7000 series utilizes Simulate mode and Sequence mode to provide a single step or consecutive power changes; and to simulate power grid's Voltage Abnormality Test and Frequency Abnormality Test. Features - 4.3-inch TFT-LCD - Output capacity : APS-7050(500VA、310Vrms、4.2Arms)；APS-7100 (1000VA、310Vrms、8.4Arms)；APS-7200(2000VA、310Vrms、16.8Arms)；APS-7300 (3000VA、310Vrms、25.2Arms)；-Output augmentation by options (0~600Vrms/45~999.9Hz) - Low Ripple & Noise - Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF- Support a small AC current measurement 2mA ~ 35A, Min. resolution 0.01mA(APS- 7050& APS-7100) - Reverse Current Alarm Function - 10 sets of Sequence function to Edit Output Waveforms/ - 10 sets of simulate mode to Rapidly Simulate Transient Power Supply/ - 10 sets of Program mode to Define Measurement Sequence/ - 10 sets of Panel Memory Function - Automatic Execution of Sequence、Simulate、Program mode and Output Function when the Power is on - Standard Interfaces: LAN, USB Host, USB Device (APS-7200 and APS-7300 models only) - Optional Interfaces: GPIB (APS-001)；RS-232 / USB CDC(APS-002 for APS-7050& APS-7100 only)；RS-232(APS-007 for APS-7200& APS-7300 only)

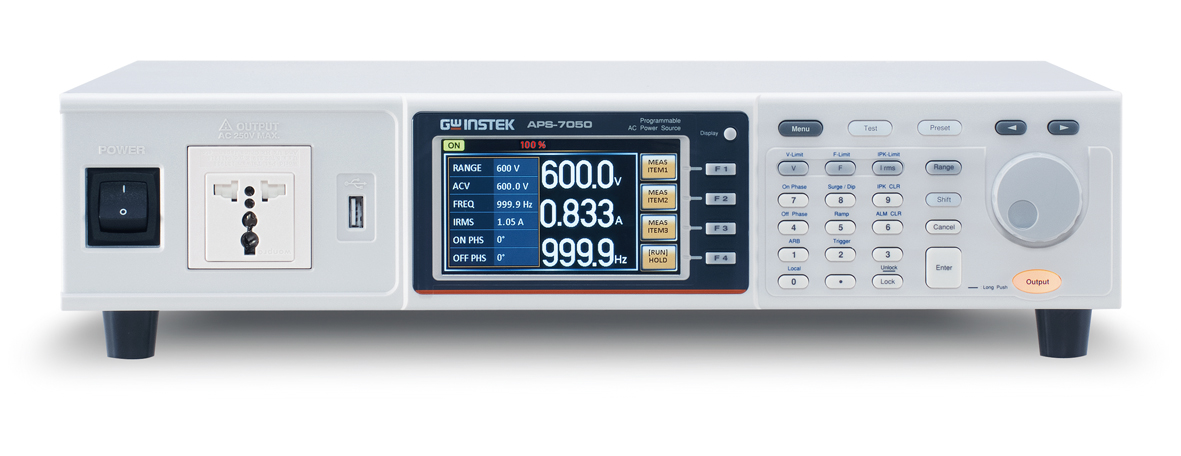

APS-7050
GWINSTEK - APS-7050 -APS-7050 AC Power Source 310Vrms / 4.2Arms / 500VA / 45~999.9Hz, with universal socketGWInstek introduces APS-7000 series programmable AC power sources, which consists of 500VA of APS-7050, 1000VA of APS-7100, 2000VA of APS-7200 and 3000VA of APS-7300. APS-7000 series features power characteristics from its linear structure design including low noise, low THD, and highly stabilized power output that are ideal for the product development and verification of input power with low noise requirement or stereo, video and audio device applications, etc. The maximum rated voltage is 0~ 310Vrms, 25.2Arms, 100.8A peak current and the output frequency range is 45~500.0Hz. Users can conveniently augment the output voltage from 0Vrms to 600Vrms and output frequency from 45Hz to 999.9Hz by purchasing options without sending equipment back to GW Instek.One of the popular alternative energy solutions in the market is to utilize inverter to convert DC to AC and the converted AC is then sent to power grid or products require electricity. For instance, AC produced by PV inverter is sent to power grid or equipment requires electricity. While simulating power grid to verify inverter connecting with power grid, general AC power sources cannot withstand DUT's feedback energy, hence, additional power consumption resistors are needed to prevent AC power source from being damaged. On the contrary, APS-7000 series has the characteristic of absorbing reverse current so that additional power consumption resistors are not required. The input terminal of APS-7000 series is designed to isolate from the simulated AC power grid output terminal, therefore, users do not need an additional isolation device to protect DUT.APS-7000 series is suitable for simulating power grid and conducting inverter output characteristic tests, including synchronized phase and frequency. Reverse current and power detected by APS-7000 series will be displayed in red readings to facilitate user's test observation. APS-7000 series utilizes Simulate mode and Sequence mode to provide a single step or consecutive power changes; and to simulate power grid's Voltage Abnormality Test and Frequency Abnormality Test.Features- 4.3-inch TFT-LCD- Output capacity : APS-7050(500VA、310Vrms、4.2Arms)；APS-7100 (1000VA、310Vrms、8.4Arms)；APS-7200(2000VA、310Vrms、16.8Arms)；APS-7300 (3000VA、310Vrms、25.2Arms)；Output augmentation by options (0~600Vrms/45~999.9Hz)- Low Ripple & Noise- Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF- Support a small AC current measurement 2mA ~ 35A, Min. resolution 0.01mA(APS- 7050& APS-7100)- Reverse Current Alarm Function- 10 sets of Sequence function to Edit Output Waveforms/- 10 sets of simulate mode to Rapidly Simulate Transient Power Supply/- 10 sets of Program mode to Define Measurement Sequence/- 10 sets of Panel Memory Function- Automatic Execution of Sequence、Simulate、Program mode and Output Function when the Power is on- Standard Interfaces: LAN, USB Host, USB Device (APS-7200 and APS-7300 models only)- Optional Interfaces: GPIB (APS-001)；RS-232 / USB CDC(APS-002 for APS-7050& APS-7100 only)；RS-232(APS-007 for APS-7200& APS-7300 only)
APS-7050E
GW INSTEK - APS-7050E - 500VA Linear AC Power Source 500VA, 310Vrms, 4.2/2.1Arms GW Instek launches the APS-7000E Series the economy version of the APS-7000 Series programmable AC power source. With the height of 2U, the maximum rated output for APS-7050E is 500VA, 310Vrms, 4.2Arms and APS-7100E is 1000VA, 310Vrms, 8.4Arms. The output frequency range of the series is 45~500Hz. The series is ideal for the test and development of DC power supply devices, consumer electronics, automotive electronics and electronic components.The APS-7000E Series comprises six measurement and test functions (Vrms, Irms, F, Ipk, W, PF), and provides user interface similar to that of AC Power Meter. The APS7000E Series, via switching many sets of current levels to increase small current measurement resolution, is ideal for the LED industry and standby mode power consumption test. Ten sets of Preset allow users to store ten settings. To meet the test criteria of line voltage fluctuation often seen in consumer electronics, the APS-7000E Series not only provides a stable AC power source but also features the Test mode to satisfy special or abnormal voltage and frequency variation demands.Ten sets of the Test mode simulate power outage, voltage rise, and voltage fall. The APS7000E Series that simulates waveforms of city power grid s transient changes is suitable for verifying electronics products operated under abnormal power source.The APS-7000E Series is the economy version of the APS-7000 Series. If communications interface and larger voltage/frequency are required, please refer to the APS-7000 Series.Key features:- 4.3” large LCD Display- Output Capacity: - APS-7050E(500VA, 310Vrms, 4.2/2.1Arms) - APS-7100E(1000VA, 310Vrms, 8.4/4.2Arms)- Measurement Function: Voltage, Current, Power, Frequency, Power Factor, Ipeak - Reverse Current Alarm Function- 10 Sets of The Test Mode Simulate Power Transient Output- 10 Sets of Preset Allow Users to Store Ten Settings- OCP/OPP/OTP Protection- Variable Voltage, Frequency and Current Limiter- Universal Power Inlet
GPS-2303
GWInstek - GPS-2303The GPS-Series is 2-4 channel, 180 to 200W output, linear DC power supplies. Overload and reverse polarity protection, and an output on/off switch keep the GPS-Series and their load safe from unexpected conditions. A High regulation (0.01%+3mV) and low ripple/noise (< 1mVrms, 5Hz~1MHz) are maintained for channel 1 and 2 in constant voltage mode. Automated cooling fan speed control minimizes fan noise according to load conditions, ensuring quiet operation. The GPS-Series is an ideal solution for lightweight, inexpensive bench-top or portable applications requiring high regulation and multiple outputs.Key features:- 2 Independent Isolated Outputs- Four "3 Digits" LED Displays- 0.01% Load and Line Regulation- Low Ripple and Noise- Tracking Operation and Auto Series/Parallel Operation- Output ON/OFF Switch- Output Voltage and Current Setting When Output Disable- Fan Speed Control Circuit to Minimize Fan Noise- Over Load and Reverse Polarity Protection- Optional European Jack Type Terminal
PSW 30-36
GW INSTEK - PSW 30-36 - 30V, 36A, 360W Multi-Range Programmable Switching DC Power Supply The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN,USB,Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver
PSW 80-13.5
GW INSTEK - PSW 80-13.5 - 80V, 13.5A, 360W Multi-Range Programmable Switching DC Power Supply The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN, USB, Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver
PSW 160-7.2
GW INSTEK - PSW 160-7.2 - 160V, 7.2A, 360W Multi-Range Programmable Switching DC Power Supply The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN, USB, Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver
PSW 250-4.5
GW INSTEK - PSW 250-4.5 - 250V, 4.5A, 360W Multi-Range Programmable Switching DC Power Supply The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage. Features:- Voltage Rating: 30V/40V/80V/160V/250V/800V, Output Power Rating: 360W ~ 1080W- Multi-range Voltage & Current Combinations in One Power Supply- CV/CC Priority; Particularly Suitable for the Battery and LED Industry- Adjustable Slew Rate- Series Operation (2 units in Series) for (30V/40V/80V/160V)- Parallel Operation (to 3 units Parallel) for (30V/40V/80V/160V/250V/800V)- High Efficiency and High Power Density- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W, 720W, 1080W- Standard Interface: LAN, USB, Analog Control Interface- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable- LabView Driver
